Description

38.1036.8

Product NameUnion Tee

Material: ss316, ss304

ConnectionOD X OD X OD

MediumWater Air Gas

Brand: AFK

Materials316, ss304

Application: Chemical and Petrochemical

Features of Stainless Steel Tube Fittings
1 . Live – loaded , two-ferrule design .

2. Easy to install .
3 .No torque is transmitted to tubing during installation .
4 . Gap inspection gauge ensures sufficient pull-up upon initial installation .
5 .The two ferrules separate sealing and tube gripping functions , each ferrule is optimized for its function .
6 . The front ferrule creates a seal against the fitting body on the tubing outside diameter .As the nut is turned ,the back ferrule axially advances the front ferrule radially applies an effective tube grip .
7 . Advanced -geometry .hinging-collecting back ferrule design .
8. Excellent gas-tight sealing and tube-gripping action .
9. Easily achieved proper installation .
10. Consistent remakes .
11.Excellent vibration fatigue resistance and tube support .
12. Full compatibility with EMT stainless steel tube fitttings of identical sizes .


4mm 6mm 8mm 10mm AFK Stainless Steel Tube Fittings Tee Ferrule SS316 Forged

Connects Fractional ( inch ) Tube

Part No.

Tube OD

T

E

Min.

 h H F I L
inch mm inch mm inch mm

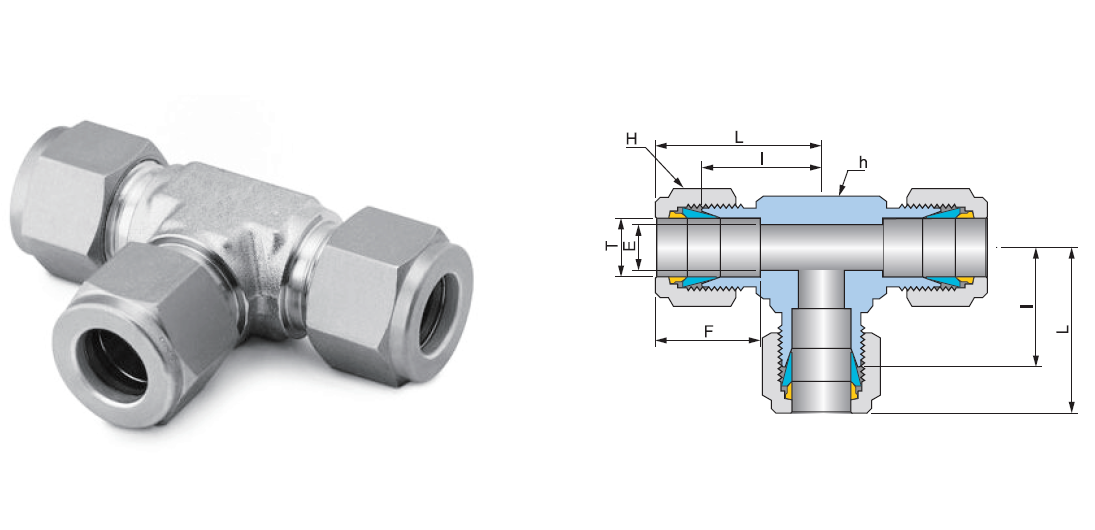

UT-01 1/16 1.68 1.3 3/8 9.52 5/16 7.93 8.6 14.0 17.8
UT-02 1/8 3.17 2.3 3/8 9.52 7/16 11.11 12.7 15.7 22.4
UT-03 3/16 4.76 3.0 1/2 12.70 1/2 12.70 13.7 17.8 24.4
UT-04 1/4 6.35 4.8 1/2 12.70 9/16 14.28 15.2 19.6 26.9
UT-05 5/16 7.93 6.4 5/8 15.87 5/8 15.87 16.3 21.3 28.7
UT-06 3/8 9.52 7.1 5/8 15.87 11/16 17.46 16.8 23.1 30.5
UT-08 1/2 12.70 10.4 13/16 20.63 7/8 22.22 22.9 25.9 36.1
UT-10 5/8 15.87 12.7 15/16 23.81 1 25.40 24.4 28.7 38.8
UT-12 3/4 19.05 15.7 1-1/16 26.98 1-1/8 28.57 24.4 29.7 39.9
UT-14 7/8 22.22 18.3 1-3/16 30.16 1-1/4 31.75 25.9 34.5 44.7
UT-16 1 25.4 22.4 1-3/8 34.92 1-1/2

38.10

 31.2

36.8

 49.0
UT-20 1-1/4 31.75 27.7 1-11/16 42.86 1-7/8 47.63 41.1 44.5 66.5
UT-24 1-1/2 38.1 34.0 2 50.80 2-1/4 57.15 50.0 50.8 78.0
UT-32 2 50.8 46.0 2-3/4 69.85 3 76.20 67.6 69.8 107.2

Connects Metric Tube

Part No.

Tube OD

T

 Dimensions (mm)
mm

E

Min.

 h H F I I1
mm mm
U1-M02 2 1.7 9.52 12.70 12.9 15.7 223
UT-M03 3 2A 9.52 11.11 12.9 15.7 22«3
UT-M04 4 2.4 12.70 12.70 13.7 18.8 25.4
UT-M06 6 4.8 12.70 14.28 15.3 19.6 27.0
U「M08 6 6.4 14.28 15.87 16.2 21.3 2&8
UT-M10 10 7.9 17.46 19.05 17.2 23S 31.5
UT-M12 12 9.5 20.63 22.22 22.8 25.9 36.0
UT-M14 14 11.1 23.81 25.40 24.4 28.7 38.8
UT-M15 15 11.9 23.81 25.40 24.4 28.7 38.8
UT-M16 16 127 23.81 25.40 24.4 28.7 38.8
UT-M1B 18 15.1 26.98 30.16 24.4 2917 39.8
UT-M20 20 15.9 34.92 31.75 26.0 34.5 44.6
UT-M22 22 18.3 34.92 31.75 26.0 34.5 44.6
U1-M25 25 21.8 34.92 38.10 31.3 36.8 49.1
U^M28 28 21.8 42.86 47.63 36.6 43.2 64.0
UT-M30 30 26.2 47.63 50.80 39.6 48.3 69.9
UT-M32 32 28.6 47.63 50.80 42.0 49.3 72.3
UT-M38 38 33.7 55.56 57.15 49.4 56.4 84.0
