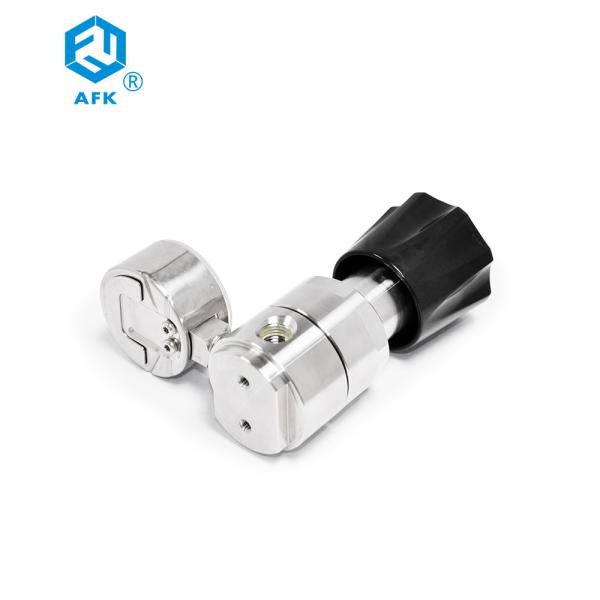

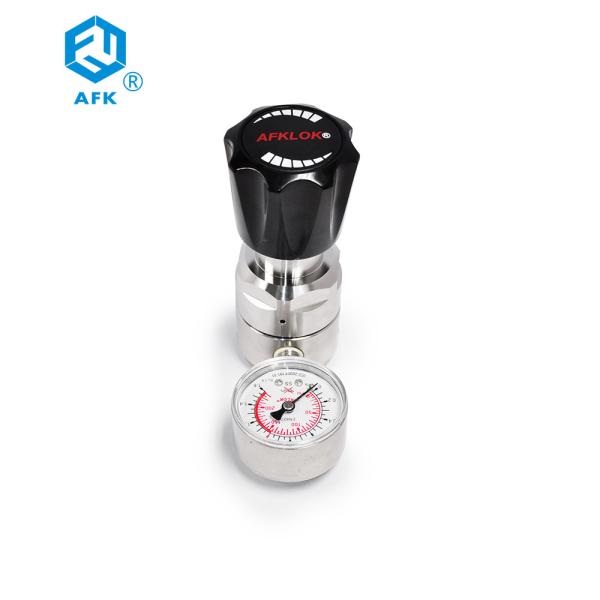

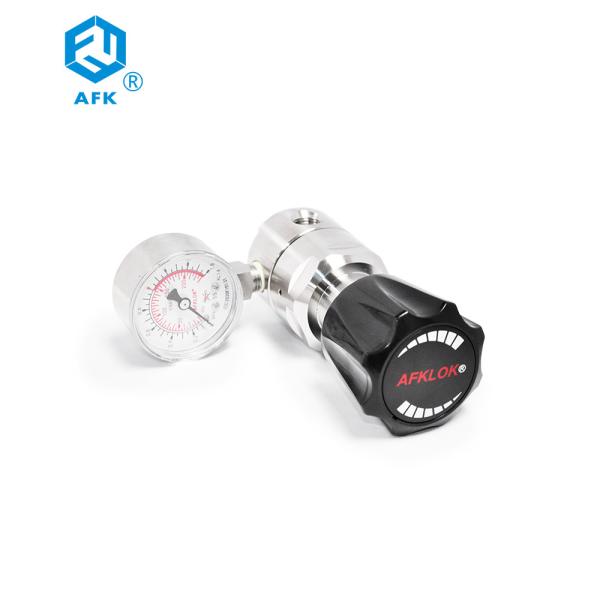

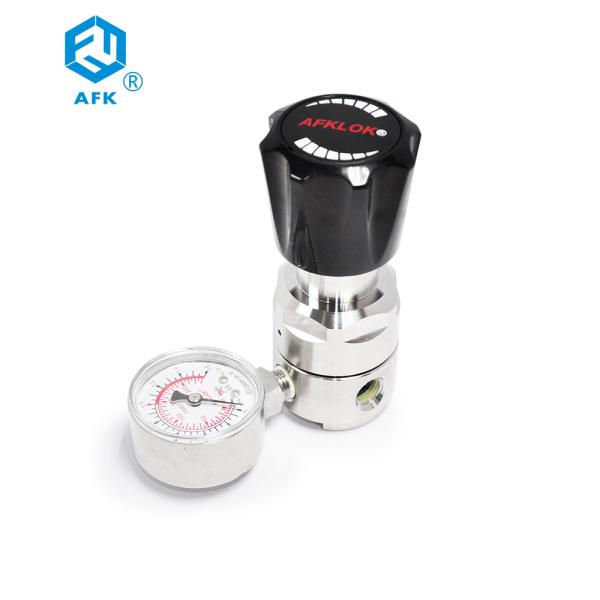

The single gauge pressure of R11 pressure regulator of this picture product is 1.6Mpa, which is equivalent to the pressure of 200psi, and the actual gas pressure shall not exceed 200psi, that is, 1.6Mpa

Features
1. Single stage diaphragm structure
2. The corrugated diaphragm design has excellent sensitivity and life
3. It can be used for corrosive and toxic gases
4. A 20 micron filter element can be installed at the inlet
5. Provide oxygen environment application options

Technical Data
1. Maximum inlet pressure: 600psi or 3500psi
2. Outlet pressure range: 0 ~ 30,0 ~ 60,0 ~ 100,0 ~ 150,0 ~ 250,0 ~ 500
3. Material of internal components:
Valve seat: PCTFE
Diaphragm: Hastelloy
Filter element: 316L
4. Working temperature: - 40 ℃ ~ + 74 ℃ (- 40 ℉ ~ + 165 ℉)
5. Leakage rate (helium)
Internal: ≤ 1x10-7 mbar L / S
External: ≤ 1x10-9 mbar L / S
6. Flow coefficient (CV):
3500psi inlet pressure: CV = 0.09
600psi inlet pressure: CV = 0.2

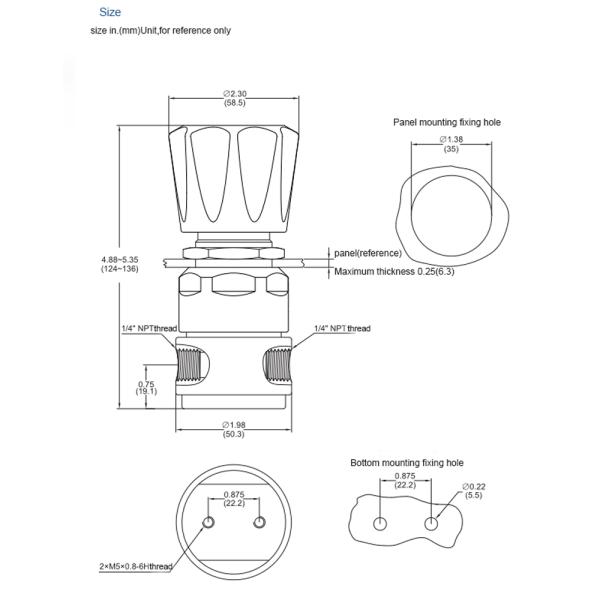

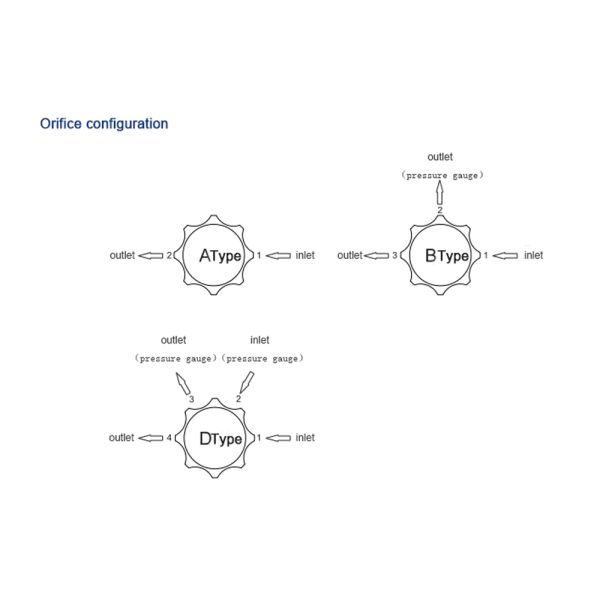

7. Parent port:
Inlet: 1 / 4 "NPT
Outlet: 1 / 4 "NPT
Pressure gauge port: 1 / 4 "NPT



ORDERING INFORMATION

FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
