R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi
Specifications
Brand Name :
AFK
Model Number :
R31
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry Equipment
Color :
Silver
max.inlet pressure regulator :
3000,500psi
outlet pressure :
25,50,100,150,250psig
CV :
0.06
inlet size :
1/4NPT(F),1/4NPT(M),CGA330,CGA350,CGA580,CGA660,CGA590,G5/8"RH(F),W21.8-14RH(F),W21.8-14LH(F)
outlet size :
1/4NPT(F),1/4NPT(M)，1/8OD,1/4OD,3/8OD,6mmOD,8mmOD,M8X1-RH(M)
pressure gauge :
Mpa,psi/bar
Description

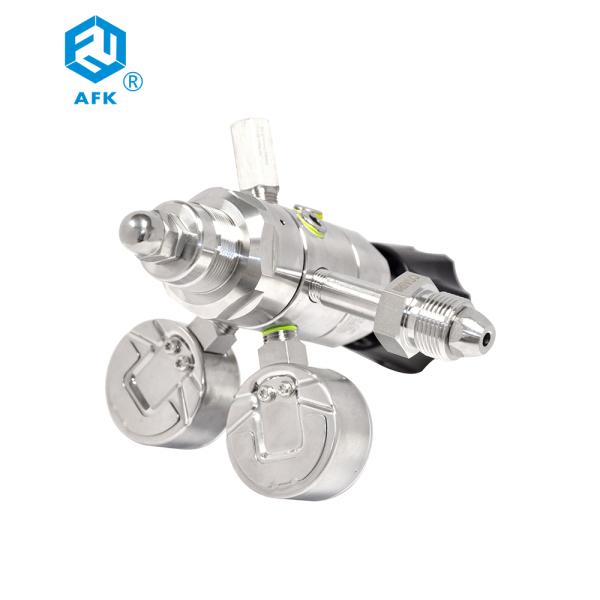

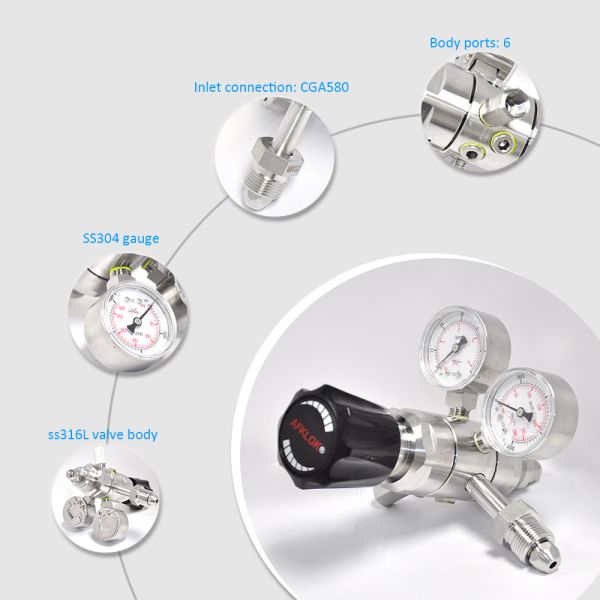

This R31 stainless steel pressure regulator has six holes in the picture. The conventional model is equipped with two pressure gauges. The pressure level is selected according to your own situation. The setting of hole position is also determined according to the situation. The matching of other joints is also selected according to the specific situation. The specific type selection table is shown below.

R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi

R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi

Flow diagram and model selection structure diagram

R31 Stainless Steel 316 Pressure Regulator 6 Hole Double Gauge 4000psi

Ordering Information

R31 L B G G 00 00 02 P
Item Body Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

 Inlet size Outlet size Options
R31 L:316 M D:3000psi G:0-250psig G:MPa gauge 00:1/4 NPT(F) 00:1/4 NPT(F) P:panel mounting
B:Brass Q F:500psi I:0_100psig P:Psig/bar gauge 01:1/4 NPT(M) 01:1/4 NPT(M) R:With relief valve
K:0-50psig W:No gauge 23:CGA330 10:1/8 OD N:With needle valve
L:0-25psig 24:CGA350 11:1/4 OD D:With diaphragm valve
Q:30 Hg Vac-30psig 27:CGA580 12:3/8OD
S:30 Hg Vac-60psig 28:CGA660 15:6mm OD
T:30 Hg Vac-100psig 30:CGA590 16:8mm OD
U:30 Hg Vac-200psig 52:G5/8-RH(F) 74:M8X1-RH(M)
63:W21.8-14H(F)
64:W21.8-14LH(F)

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list;

Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.
