AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply
Specifications
Brand Name :
AFK
Model Number :
WL100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Packaging Details :
Expotrt Packing
Material :
Stainless Steel
Application :
Industry
Pressure :
High Pressure
Standard or nonstandard :
Standard
Media :
Gas
Power :
Manual
CV :
0.14
max inlet pressure :
3000psi,2200psi
max. outlet pressure :
25,50,100,150,250psi
Description

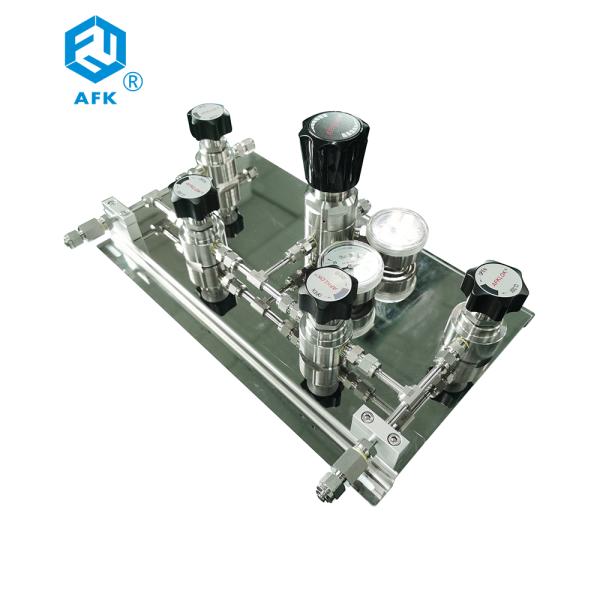

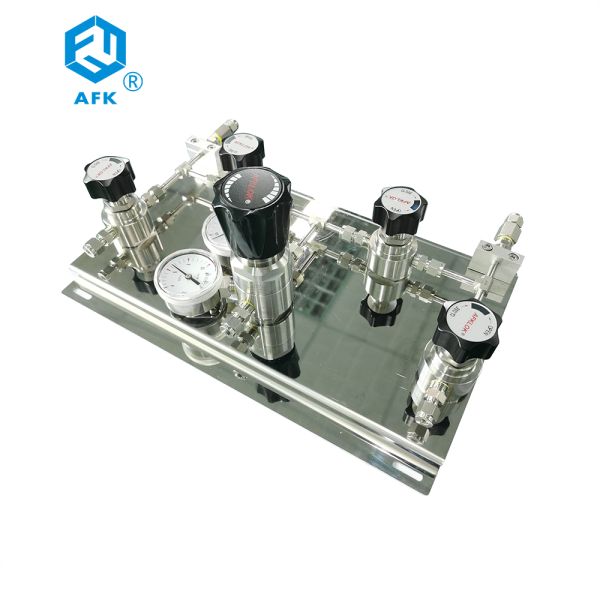

AFK stainless steel primary manual double side air supply panel gas pressure regulator

It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.

Features

1 Pressure regulator for special gas
2 Equipped relief pressure valve
3 Pressure regulator and pipe through the pressure test and leakage test
4 2" stainless steel pressure gauge,reading clearly
5 The knob of diaphragm valves with on/off logo

Specifications

1 Max. Inlet Pressure 3000, 2200 psi
2 Max. Outlet Pressure 25, 50, 100, 150, 250 psi
3 Working Temperature -40°C ~ 74°C (-40°F ~ 165°F)

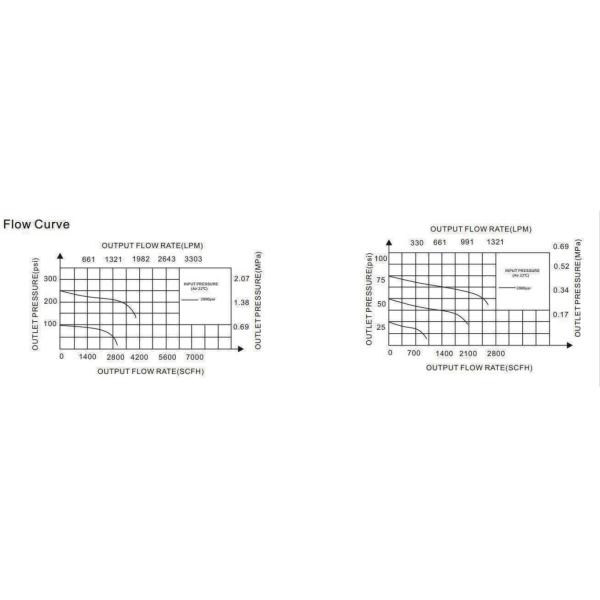

4 Flow Rate see flow Curve Chart
5 Pressure Regulator Leakage Rate 2 x 10-8 atm.cc/sec He
6 Cv 0.14

Materials

1 Body stainless steel
2 Seat PU, PTFE, PCTFE
3 Inlet Connection 1/4″tube fitting, 1/4″FSR, 1/2″FSR
4 Outlet Connection 1/4″ tube fitting , 1/4″FSR
5 Body of Diaphragm Valve stainless steel

AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply

AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply

AFK Panel Gas Pressure Regulator Stainless Steel Manual Double Side Air Supply

Ordering Information

WL1 1 1 1 S H 1 1 -N2
Series Function Options Outlet Connection Inlet Connection Body Material Input Pressure Output Pressure Gauge Gas Options
WL1 Series single side gas supply high pressure regulator system 1.with emptying,purging distribution function 1.1/4"NPT(F) 1.1/4"Welding S:stainless steel H:3000psi 1:25psi 1.MPa blank:none
2.without emptying,purging distribution function 2.1/4"tube fitting 2.1/4"NPT(M) C:nickel plated brass M:2200psi 2:50psi 2.Bar/psi N2:nitrogen
3.emptying,purging distribution+pressure sensor 3.3/8"NPT(F) 3.3/8"Welding L:1000psi 3:100psi 3.psi/KPa O2:oxygen
4.with pressure sensor 4.3/8"tube fitting 4.3/8"NPT(M) O:other 4:150psi 4.other H2:hydrogen
5.Others 5.1/2"NPT(F) 5.1/2"Welding 5::250psi C2H2:acetylene
6.1/2"tube fitting 6.1/2"NPT(M) 6:other CH4:methane
7.Other 7.1/4"tube fitting Ar:argon
8.3/8"tube fitting He:helium
9.1/2"tube fitting Air:air
10.Other

FAQ

Q. Are you manufacturer?

A. Yes, we are manufacturer.

Q.What is lead time?

A.3-5days. 7-10 days for 100pcs

Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

Q. Do you have any certificates?

A. We have CE certificate.

Q. What materials do you have?

A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.

Q. What is maximum inlet pressure?

A.3000psi (about 206bar)

Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.

Q. How many types for connecting cylinder?

A. Down way and side way. (you can choose it)

Q. What is product warranty?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
