Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Specifications
Brand Name :
AFK
Model Number :
RW74
Certification :
CE RoSH
Place of Origin :
Guangdong, China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
10000 Set/Sets per Week
Delivery Time :
2 weeks
Packaging Details :
Export packing
Materail :
Stailess Steel
Structure :
Piston-sensed Configuraton
Maximum inlet pre :
250 psi
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Leakage rate :
2*10-8 atm cc/sec He
Price :
Negotiable
Description

Product Description:

Main Features

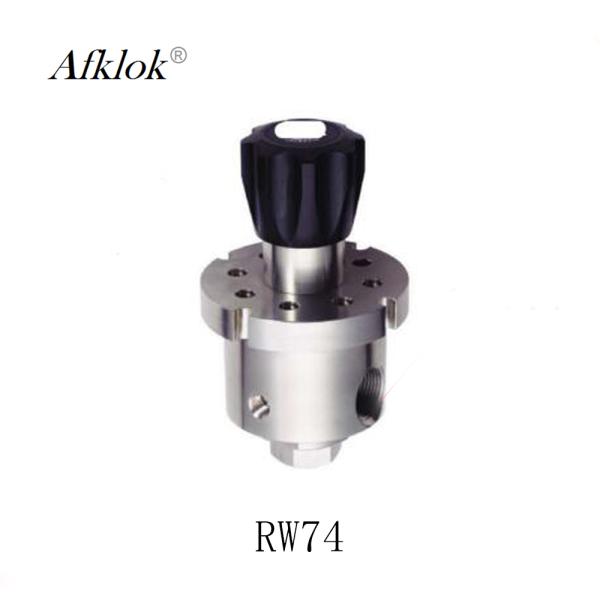

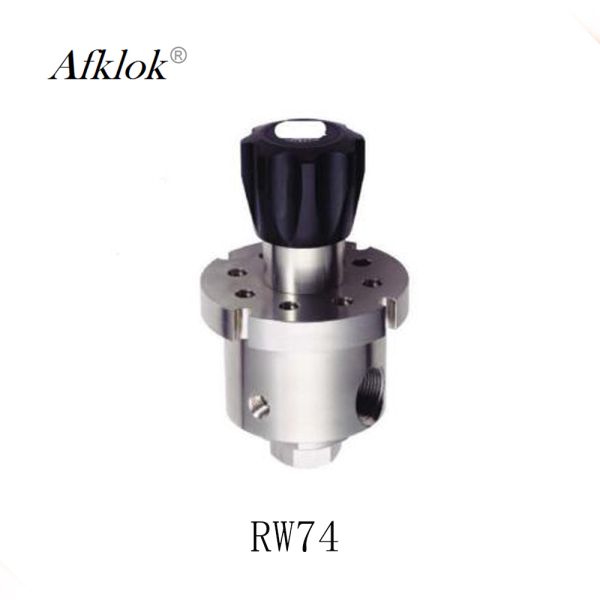

Name: RW74 Back pressure regulator
Brand: AFK
Original: China
RW74 Series Back pressure Regulator is a diaphragm-sensed single-stage "Industrial-style" regulator,

designed for gas or liquid application where ultra high flow is desired.

Available in nickel-plated brass and stainless steel.

Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

Material

*Body: Brass, 316L

*Seat: Neoprene

*Diaphragm: Neoprene

Typical applications

*Chromatography

*Laboratories

*Petrochemical industry

*Power plant equipments

Features

*Single stage Configuration

*Pressure gauge/Safety valve port size: 1/4" NPT (F)

*Inlet/outlet port size: 1" NPT (F)

*2" Pressure gauge

*Proof pressure: 1.5 times maximum inlet pressure

*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

*Leak Rate: 2 X 10-8 atm. cc/sec He

*Maximum CV: 5.2

Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

eoDetailed Images

Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

Certifications

Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

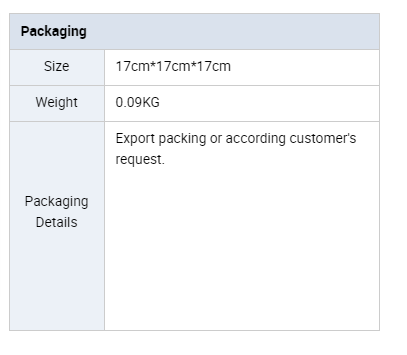

Packing & Delivery

Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator ValveSingle Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.

Q: What is your payment ?
A: T/T , PayPal , Western Union
