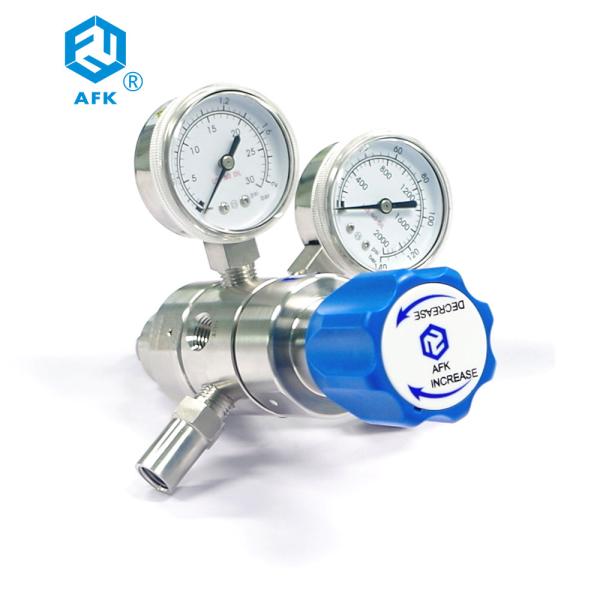

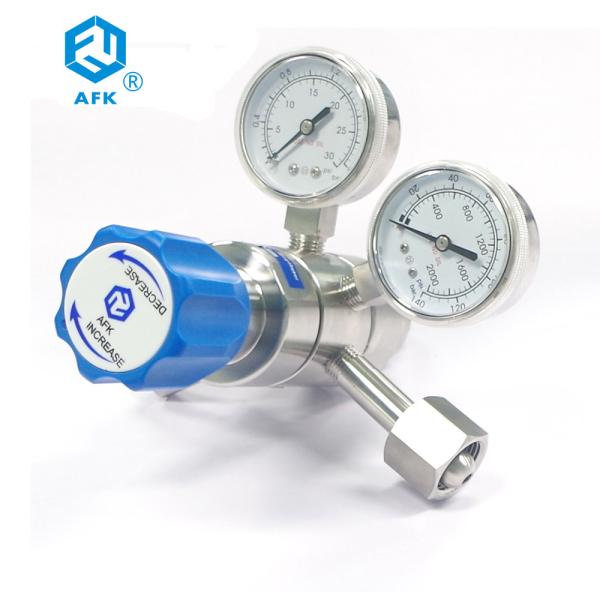

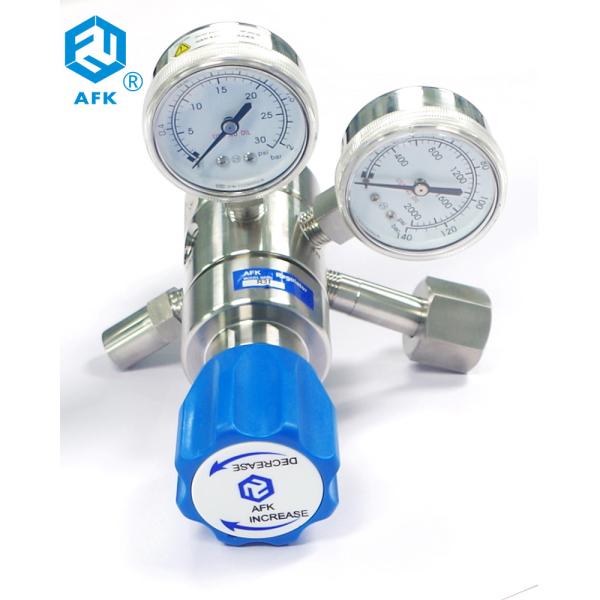

1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
1/4 NPT 316L 3000PSI Stainless Steel Pressure Regulator
Specifications
Brand Name :
AFK
Model Number :
R31
Certification :
CE/RoHS
Place of Origin :
Guangdong, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 Piece/pieces per Ddy
Delivery Time :
5-8 work days
Material :
316L SS
Maximum input pressure: :
500 and 3000 PSI
Media :
Gas
Port Size :
1/4" NPT
Structure :
Diaphragm
Description

Product Description:

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.

Design Features:

  • Five hole designof the body
  • Double-stage pressure-reducing structure
  • Metal-to-metal diaphragm seal
  • Body thread:input and output connection
  • 1/4”NPT(F)
  • Easy to clean internal structure
  • Filter element installed internally
  • Panel mounting and wall mounting available
  • Optional outlet: needle valve, diaphragm valve

Material:

  • body: 316L, Brass
  • bonnet: 316L, Brass
  • diaphragm: 316L
  • strainer: 316L(10μm)
  • seat: PCTFE, PTFE, Vespel
  • spring: 316L
  • stem: 316L

Typical Applications:

  • Labotary
  • Gas Chromatography
  • Gas laser
  • Gas bus-bar
  • petro-chemical industry
  • Test equipment

Ordering Information

R31 L B G G 00 00 02 P
Item Body Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

 Inlet size Outlet size Options
R31 L:316 M D:3000psi G:0-250psig G:MPa gauge 00:1/4 NPT(F) 00:1/4 NPT(F) P:panel mounting
B:Brass Q F:500psi I:0_100psig P:Psig/bar gauge 01:1/4 NPT(M) 01:1/4 NPT(M) R:With relief valve
K:0-50psig W:No gauge 23:CGA330 10:1/8 OD N:With needle valve
L:0-25psig 24:CGA350 11:1/4 OD D:With diaphragm valve
Q:30 Hg Vac-30psig 27:CGA580 12:3/8OD
S:30 Hg Vac-60psig 28:CGA660 15:6mm OD
T:30 Hg Vac-100psig 30:CGA590 16:8mm OD
U:30 Hg Vac-200psig 52:G5/8-RH(F) 74:M8X1-RH(M)
63:W21.8-14H(F)
64:W21.8-14LH(F)

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
