Wl400 Terminal 1/4 NPT Pressure Reducing Valve Stainless Steel PCE
Wl400 Terminal 1/4 NPT Pressure Reducing Valve Stainless Steel PCE
Wl400 Terminal 1/4 NPT Pressure Reducing Valve Stainless Steel PCE
Wl400 Terminal 1/4 NPT Pressure Reducing Valve Stainless Steel PCE
Specifications
Brand Name :
AFK
Model Number :
R11
Certification :
PCE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500PC
Delivery Time :
1WEEK
Packaging Details :
WOODEN
Material :
Stainless Steel,Brass,SS304
Port size :
1/4 "
Media :
Gas
Size :
1/4" NPT
Description

Product Application

It is applied to the terminal of gas pipeline, easy to use and control the gas flow. The maximum input pressure can reach 20.7mpa (3000psi), corrosion resistance, clean workshop assembly test, suitable for laboratory, gas analysis and other high-purity gas use.

Structural materials

Reducer matrix: stainless steel
Valve seat: Pu, PTFE, PCTFE
Panel air inlet connection: 1 / 4 'AFK, 1 / 4' FSR, 1 / 2 'FSR
Panel outlet connection: 1 / 4 'AFK, 1 / 4' FSR
Diaphragm valve body: stainless steel

Structural features

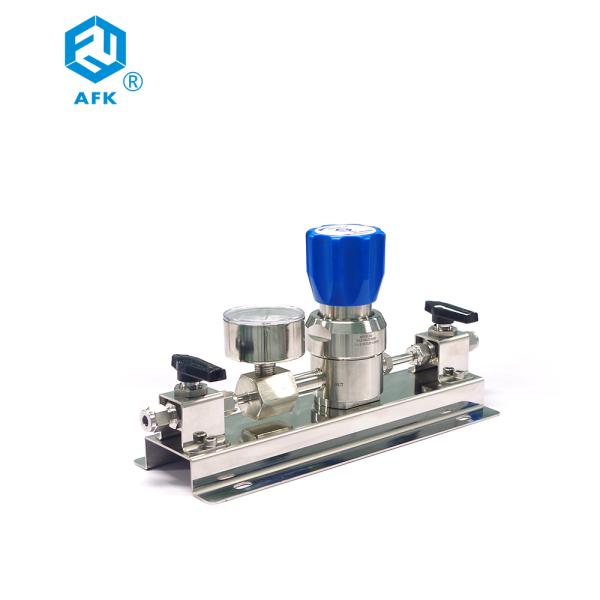

The valve is equipped with R11 pressure reducer and high pressure ball valve

The pressure test and leakage test are carried out for the pipeline

Wall mounted, easy to use. Safety is guaranteed

The pressure reducer and pipeline have been subjected to pressure test and leakage test

2 'stainless steel pressure gauge, read clearly

technical parameter

Maximum intake pressure: 3000,2200psi
Maximum outlet pressure: 25, 50,100,150,250psi
Working temperature: - 40 ℃ ~ 230 ℃

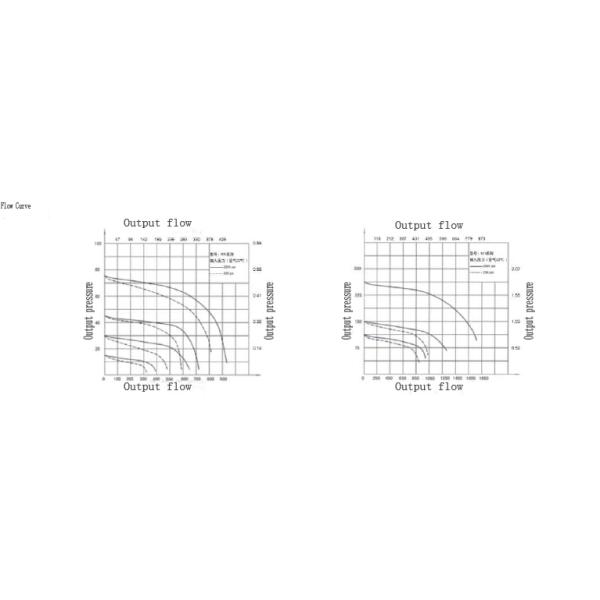

Flow: see flow curveLeakage
rate of pressure reducer: 2x10-8 atm.cc/sec He
Cv: 0.14

Wl400 Terminal 1/4

Ordering Guide

WL4 2 1 S H 5 1 -N2
Series outlet type Inlet interface type body nput pressure outlet pressure Gauge Gas Options
Wl4: terminal secondary pressure reducing valve assembly

1:6mm Pagoda joint

2:1/4" swagelok

3:8mm Pagoda joint

4:3/8" swagelok

5:10mm Pagoda joint

6:1/2" swagelok

7:Other

1:1/4" Welding

3:3/8" Welding

5:1/2" Welding

7:1/4" swagelok

8:3/8" swagelok

9:1/2" swagelok

10:Other

S:stainless steel

C:Barss

H:1000psi

M:500psi

L:300psi

O:Other

1:25psi

2:50psi

3:100psi

4:150psi

5:250psi

6:Other

1:Mpa

2:Bar/psi

3:psi/Kpa

4:Other

Blank: no gas mark

N2:Nitrogen

O2:oxygen

H2:hydrogen

C2H2:acetylene

CH4:methane

AR:argon

HE:helium

AIR: air

Wl400 Terminal 1/4
