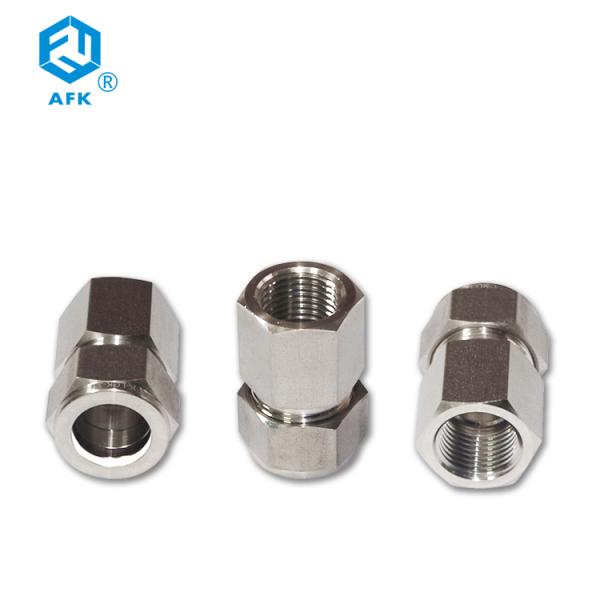

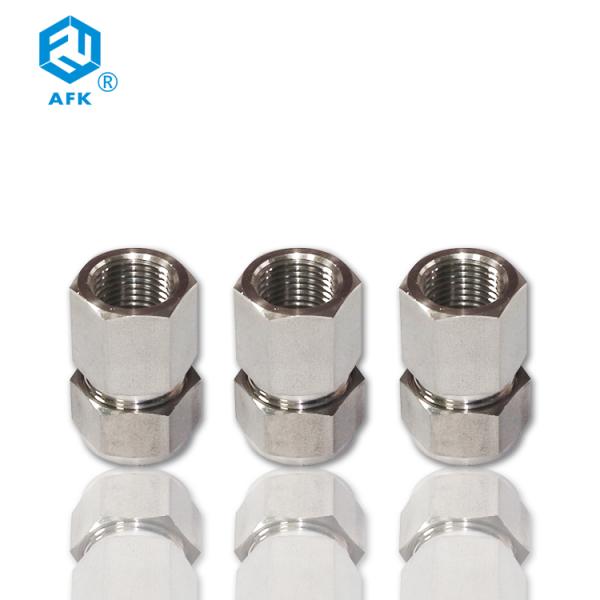

NPT Thread Stainless Steel Connector Custom Ferrule Forged
NPT Thread Stainless Steel Connector Custom Ferrule Forged
NPT Thread Stainless Steel Connector Custom Ferrule Forged
NPT Thread Stainless Steel Connector Custom Ferrule Forged
Specifications
Brand Name :
AFK
Model Number :
FC
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Material :
Stainless Steel,Stainless steel 304 or 316,Stainless Steel304 316L
Head code :
Other
Connection :
Male,Female
Technics :
Forged
Thread :
NPT
Medium :
Water,Gas
Warranty :
1 Year
Siez :
1/4 , 1/8 , 1/2 ， 3/4
Description

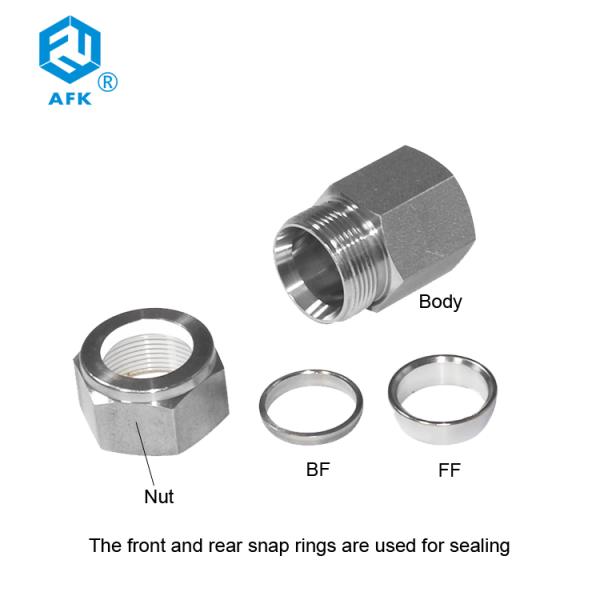

Components Of Ferrule Joint

AFK ferrule joint is composed of front ferrule, rear ferrule, ferrule nut and joint body. Advanced design and strict quality control ensure that the pipe joint is completely sealed under the correct installation.

Features of AFK ferrule joint

easy to install correctly；

installation will not transfer the torsion cabinet to ferrule.

NPT Thread Stainless Steel Connector Custom Ferrule Forged

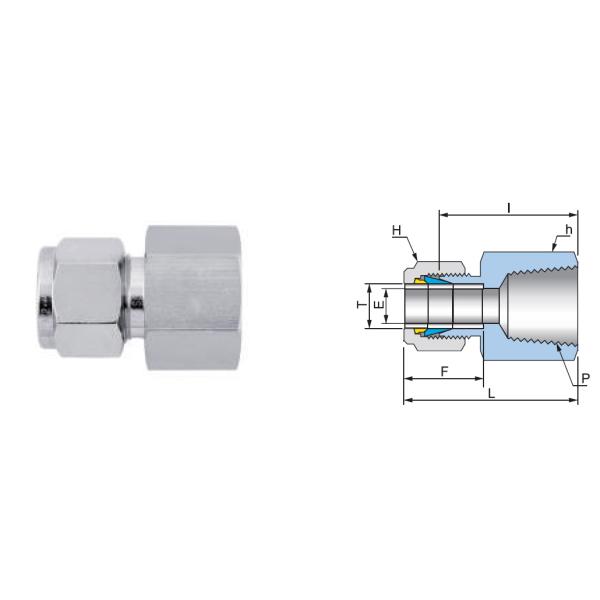

Selection Table

Part No.

Tube OD

T

P

NPT

 Dimensions(mm)

E

Min.

 h H F I L
inch mm inch mm inch mm
FC-0202N 1/8 3.17 1/8 2.3 9/16 14.28 7/16 11.11 12.7 22.1 28.7
FC-0204N 1/8 3.17 1/4 2.3 3/4 19.05 7/16 11.11 12.7 26.9 33.5
FC-0302N 3/16 4.76 1/8 3.0 9/16 14.28 1/2 12.70 13.7 23.1 29.7
FC-0402N 1/4 6.35 1/8 4.8 9/16 14.28 9/16 14.28 15.2 23.9 31.2
FC-0404N 1/4 6.35 1/4 4.8 3/4 19.05 9/16 14.28 15.2 28.4 35.8
C-0406N 1/4 6.35 3/8 4.8 7/8 22.22 9/16 14.28 15.2 30.2 37.6
FC-0408N 1/4 6.35 1/2 4.8 1-1/16 26.98 9/16 14.28 15.2 35.1 42.4
FC-0502N 5/16 7.93 1/8 6.4 9/16 14.28 5/8 15.87 16.3 24.6 32.0
FC-0504N 5/16 7.93 1/4 6.4 3/4 19.05 5/8 15.87 16.3 29.5 36.8
FC-0602N 3/8 9.52 1/8 7.1 5/8 15.87 11/16 17.46 16.8 25.4 32.8
FC-0604N 3/8 9.52 1/4 7.1 3/4 19.05 11/16 17.46 16.8 30.2 37.6
FC-0606N 3/8 9.52 3/8 7.1 7/8 22.22 11/16 17.46 16.8 31.8 39.1
FC-0608N 3/8 9.52 1/2 7.1 1-1/16 26.98 11/16 17.46 16.8 36.6 43.9
FC-0612N 3/8 9.52 3/4 7.1 1-5/16 33.33 11/16 17.46 16.8 40.4 47.8
FC-0804N 1/2 12.70 1/4 10.4 13/16 20.63 7/8 22.22 22.9 30.2 40.4
FC-0806N 1/2 12.70 3/8 10.4 7/8 22.22 7/8 22.22 22.9 31.8 41.9
FC-0808N 1/2 12.70 1/2 10.4 1-1/16 26.98 7/8 22.22 22.9 36.6 46.7
FC-0812N 1/2 12.70 3/4 10.4 1-5/16 33.33 7/8 22.22 22.9 38.1 48.3
FC-1006N 5/8 15.87 3/8 12.7 15/16 23.81 1 25.40 24.4 31.8 41.9
FC-1008N 5/8 15.87 1/2 12.7 1-1/16 26.98 1 25.40 24.4 36.6 46.7
FC-1208N 3/4 19.05 1/2 15.7 1-1/16 26.98 1-1/8 28.57 24.4 36.6 46.7
FC-1212N 3/4 19.05 3/4 15.7 1-5/16 33.33 1-1/8 28.57 24.4 38.1 48.3
FC-1412N 7/8 22.22 3/4 18.3 1-5/16 33.33 1-1/4 31.75 25.9 39.6 49.8
FC-1612N 1 25.40 3/4 22.4 1-3/8 34.92 1-1/2 38.10 31.2 41.1 53.3
FC-1616N 1 25.40 1 22.4 1/5-8 41.27 1-1/2 38.10 31.2 50.0 62.2
FC-2020N 1-1/4 31.75 1-1/4 27.7 2-1/8 53.98 1-7/8 47.63 41.1 52.6 74.7
FC-2424N 1-1/2 38.10 1-1/2 34.0 2-3/8 60.33 2-1/4 57.15 50.0 56.1 83.3
FC-3232N 2 50.80 2 46.0 2-7/8 73.03 3 76.20 67.6 64.3 101.6

NPT Thread Stainless Steel Connector Custom Ferrule Forged

NPT Thread Stainless Steel Connector Custom Ferrule Forged

NPT Thread Stainless Steel Connector Custom Ferrule Forged

Company Style

NPT Thread Stainless Steel Connector Custom Ferrule Forged NPT Thread Stainless Steel Connector Custom Ferrule Forged

Customer Visit

NPT Thread Stainless Steel Connector Custom Ferrule Forged NPT Thread Stainless Steel Connector Custom Ferrule Forged

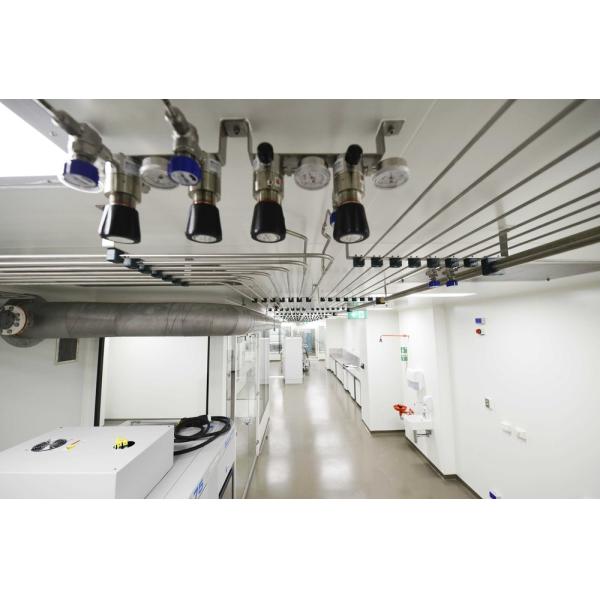

Project

NPT Thread Stainless Steel Connector Custom Ferrule Forged

Project construction

NPT Thread Stainless Steel Connector Custom Ferrule Forged

bg-semi-gas-precision-gas-equipment

NPT Thread Stainless Steel Connector Custom Ferrule Forged

Project construction

NPT Thread Stainless Steel Connector Custom Ferrule Forged

Project construction
