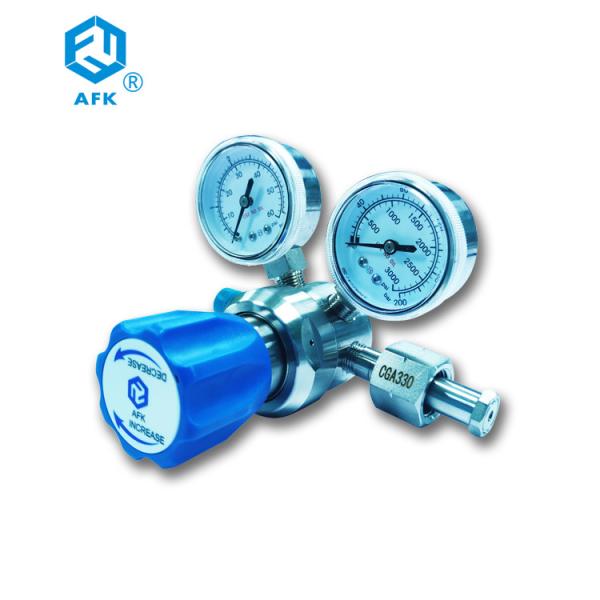

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
Specifications
Brand Name :
AFK
Model Number :
R11
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,SS304/SS316L,316,brass
Warranty :
1 Year
Cv :
0.08
Outlet pressure :
0~25,0~50,0~100,0~250,0~500 psig
Body thread :
1/4"NPT(F)
Flowmeter :
Accurated reading
Input pressure :
Preset input pressure gas regulator
Description

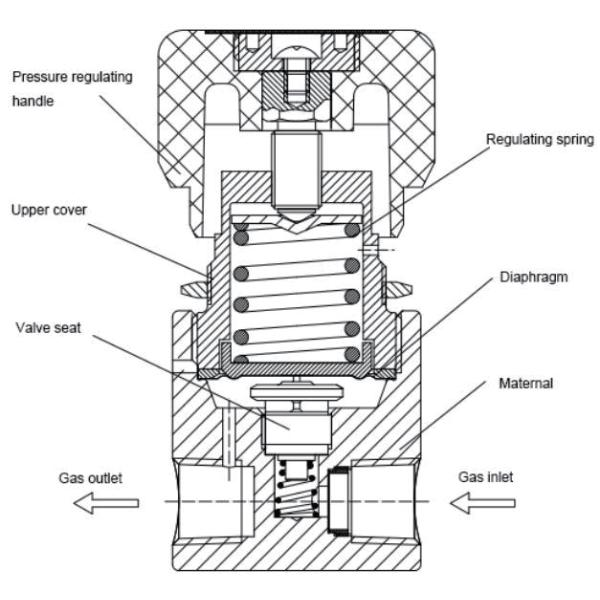

R11 Series stainless steel pressure regulator is Single stage diaphragm, vacuum structure Stainless diaphragmoutput. It has piston pressure reducing structure, constant outlet pressure,mainly used for high input pressure,suitable for purified gas, standard gas, corrosive gas etc.

TYPICAL APPL ICATIONS

  • Laboratory
  • Gas Chromatograph
  • Gas Laser
  • Gas bus
  • Oil and chemical industry
  • Tested instrumentation

DESIGN FEATURES

  • Single-stage reduce structure
  • Use hard-seal between body and Diaphragm
  • Body Thread:1/4" NPT (F)
  • Easy to sweep inside body
  • Filter mesh inside
  • Panel mountable or wall mounted

SPECIFICATION

MATERIAL

Max inlet pressure :

500,3000 psig

Body:

316L, Brass

Outlet pressure :

0~25, 0~50, 0~100,0~250,0~500 psig

Roof:

316L, Brass

Proof pressure:

1.5 times of maximum rated pressure

Diaphragm:

316L

Working tem:

-40°F ~+446°F (-40*C~+230°C)

Filter mesh:

316L(10μ m)

Leakage rate:

2*10-8 atm cc/sec He

Valve seat:

PCTFE,PTFE,Vespel

Cv:

0.08

Spring loaded:

316L

Valve disc regulation pole:

316L

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

R11 L B D F G 00 00 P
Item

Body

Materia

 Body Hole

Inlet

pressure

Outlet

pressure

 Pressure gauge Inlet size Outlet size mark
R11 L:316 A D:3000 psi F:0-500 psi G:MPa gauge 00:1/4 " NPT (F) 00: 1/4 " NPT(F) P:Panel mounting
B:Brass B E:2200 psi G:0-250 psi 01:1/4 " NPT (M) 01: 1/4 " NPT(M) N:Needle valve
D F:500 psi l:0-100 psi P:Psig/bar gauge 23: CGA330 10:1/8 " OD N:Needle valve
G K:0-50 psi 24: CGA350 11:1/4 " OD D:Diaphragm valve
J L:0-25 psi W:No gauge 28: CGA660 12:3/8 " OD
M 28: CGA660 15:6mm OD
30: CGA590 16:8mm OD
52: G5/8 "-RH(F)
63: W21.8-14H(F)
64: W21.8-14LH(F)
316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector

316L 3000Psi Stainless Steel Pressure Regulator CGA330 Cylinder Connector
