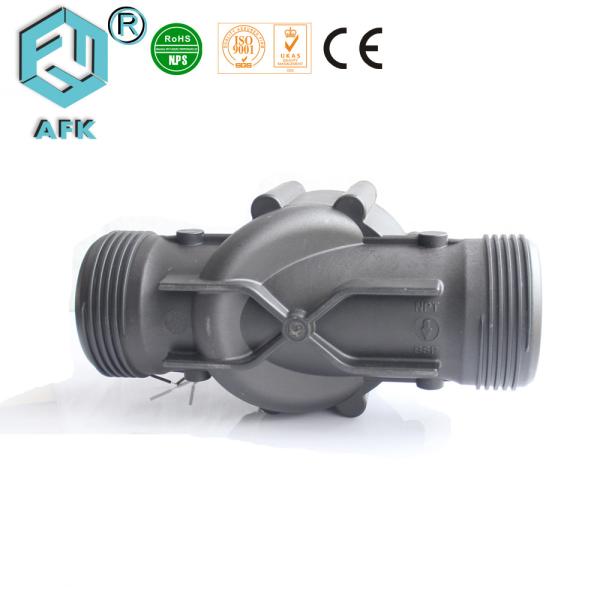

Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
300P
MOQ :
10-49 Pieces
Price :
Negotiable
Certification :
None
Delivery Time :
5-7 working days
Packaging Details :
Paper box
Material :
Plastic
Temperature of Media :
below 43°C
Pressure :
Medium Pressure
Power :
Solenoid
Media :
Water
Structure :
Other
Type :
Normally closed
Description

BSP flange connection 3inch 2 way 12 v solenoid valve

Specification

No. ITEM TECHNICAL PARAMETERS
1 material nylon plastic body, NBR seal
2 Fluid water
3 Fluid temperature ≤43°C
4 Environment temperature ≤52°C
5 Service voltage 6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6 Pulse width 20-500mSec (only for latching type)
7 Coil resistance 6 Ω
8 Capacitance 4700uF
9 Coil inductance 12mH
10 Connection G(BSP) female thread is regular, special order for NPT(3/4" and 1")
11 Size

075D: 3/4", 20mm (BSP or NPT female)

100D:1", 25mm (BSP or NPT female )

100P:1", 25mm (BSP female)

150P:1-1/2"(1.5"), 40mm (BSP female)

200P:2", 50mm (BSP female)

300P:3", 80mm (BSP female, male, flange)

400P:4", 100mm (BSP female, male, flange)
12 Working pressure

3/4" and 1": 1-10bar

1.5"and 2": 1-10.4bar

3"and 4": 0.7-14bar
13 Flow rate

3/4": 5 m³/h

1": 9 m³/h

1.5"-2": 0.45-34.05 m³/h

3"-4": 1.1-70 m³/h
14 Operation mode valve element lock position,valve open, release position, valve close.

Irrigation System

Flanged Irrigation Solenoid Valve With BSP Male / Female Thread Normally Closed

Technical Parameter of DC Latcning with pulse

Voltage Range: 9-20VDC

Required capacitance: 4700u

Coil Resistance: 6Ω

Coil Inductance: 12mH

Pulse Width: 20-500m Sec

Working Model: + Red & Black valve core lock position (valve opening)

+ Red & Black release valve core lock position (valve closing)
