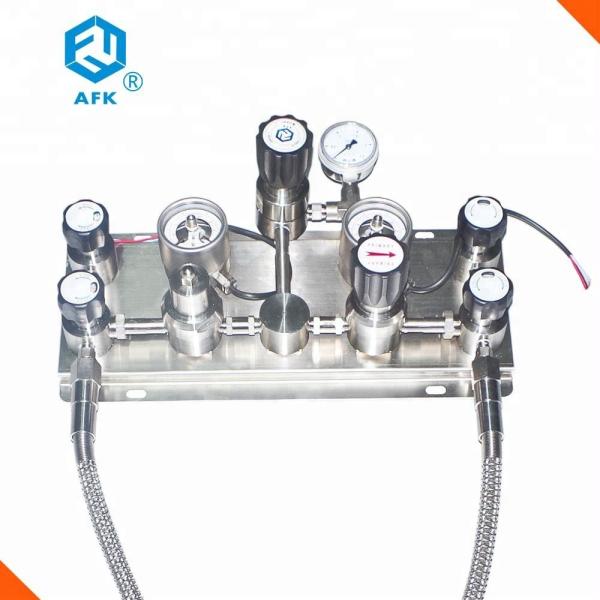

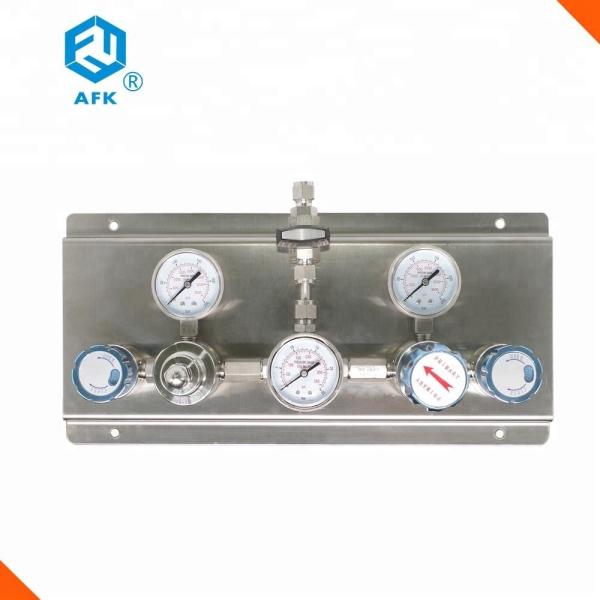

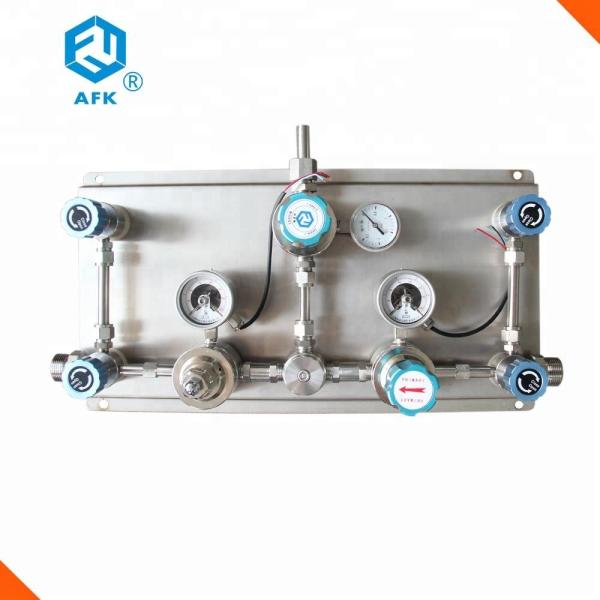

200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
Specifications
Place of Origin :
China (Mainland)
Brand Name :
AFK
Model Number :
WL300
MOQ :
1-9 Pieces
Price :
Negotiable
Media :
Gas
Port Size :
1/4" NPT(F)
Maximum inlet pressure :
3000, 500psig
output pressure :
0~25, 0~50, 0~100, 0~250psig
working temperature :
-40~+74 deg C
Applied gas :
high pure gases, standard gases, corrosive gases and so on
Certificate :
ISO9001:2008 CE
Body material :
ss316, nickel plated brass
Description

WL300 Series Semi-automatic Changeover Device

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.

The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.

High pressure pressure regulator with one inlet pressure gauge.

Body ports: 1/4NPT F
Body ports: 3 ports
Type: can't be adjustable
Body material: nickled plated brass and ss316L are available.
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel
High pressure regulator with one inlet pressure gauge.
Body ports: 1/4" NPT F
Body ports: 3ports
Type: can be adjustable
Body material: Nickled plated brass and ss316L are available.

Technical Parameters
Specification
Body
SS316L, brass, nickel plated brass ( Weigh :0.9kg)
Cover
SS316L, brass, nickel plated brass
Diaphragm
SS316L
Stainer
SS316L(10um)
Valve Seat
PCTFE,PTFE,Vespel
Spring
SS316L
Plunger Valve Core
SS316L
Material
Maximun Input Pressure
500,3000 psig
Outlet pressure range
0~25, 0~50, 0~100, 0~250, 0~500 psig
Safety Testing Pressure
1.5 times of maximum input pressure
Working Temperature
-40°F~ +165°F (-40°C~ +74°C )
Leakage Rate
2×10-8 atm cc/sec He
CV Value
0.08
Ordering Information
200 Bar Changeover Manifold , Stainless Steel Changeover Nitrogen Gas Panel

Please provide the following parameters in your inquiry as many as possible:

1. Inlet actual working pressure

2. Outlet actual working pressure

3. Inlet conenction and size

4. Outlet conenction and size

5. Material: brass, nickel plated brass, stainless steel

6. If you have special flow rate requirements and a panel, please indicate it.

7. Quantity

Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according your requirements. Please write the above descriptions as possible as you can. If you can not confirmed it at the moment, just send us inquiry, we also can recommend our regular model for you.
