80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
300PH
Supply Ability :
30000 Set/Sets per Week
Packaging Details :
White box + Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
None
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Material :
Plastic
Temperature of Media :
Medium Temperature
Pressure :
Low Pressure
Media :
Water
Port Size :
3"
Structure :
Pilot
orifice size :
80mm
Description
80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
DESIGN FEATURES
1. Irrigation solenoid valve
2. Fit for stadium, farm, industrial dust and water treatment equipment.
3. Normally closed.

4.Pipe size 3".
5. Service voltage : DC latching/9VDC/12VDC/ 24VDC/24VAC/110VAC/220VAC
6.Thread connnector :G, male, flange
7.Material-body valve -nylon
Detailed Images

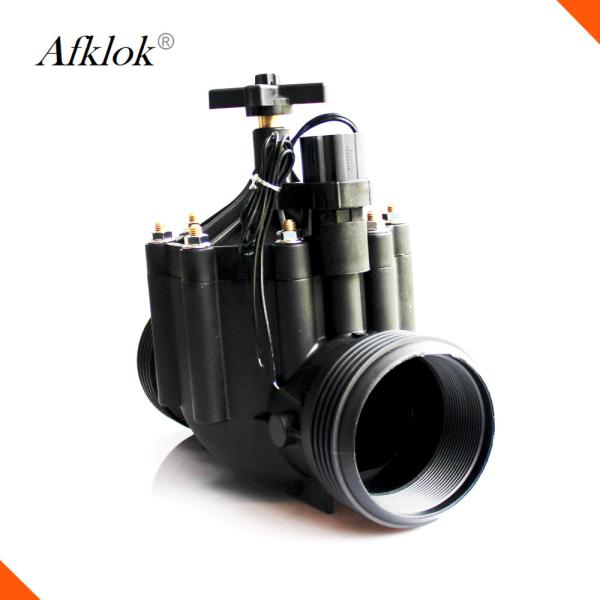

80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm

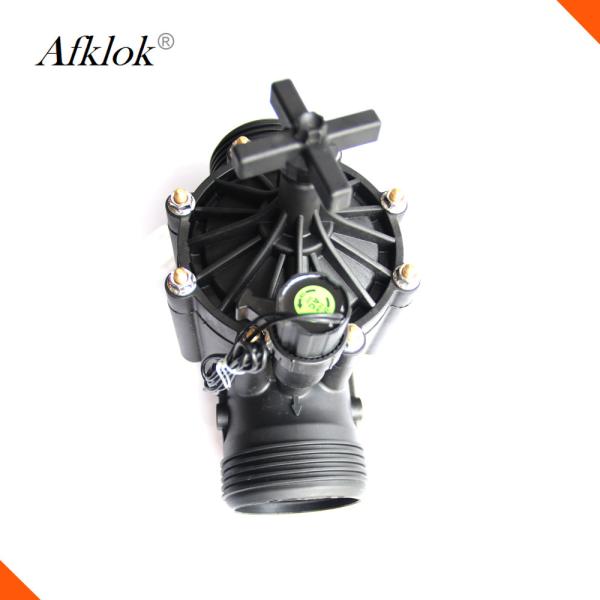

80mm Irrigation Solenoid Valve 70-1400Kpa Applied To Garden Lawn Stadium Farm
Structure Parameters

Description One

Medium:Water
Temperature: Suitable water≤42℃, surroundings≤52℃

Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment.

Description Two

Model: 300PH
Pressure: 0.1~1.0Mpa
Connect size: 3"
Thread: G , Flange
Orifice size: 80mm
Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA
Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)
Working model(+red&-black valve open)
(-red&-black valve closed)

Description Three

Material-body valve -nylon enclosed-NBR
Moving iron core-430F
Static iron core-430F
Sping-SUS304 Sub-magnetic ring-Copper

Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering)
