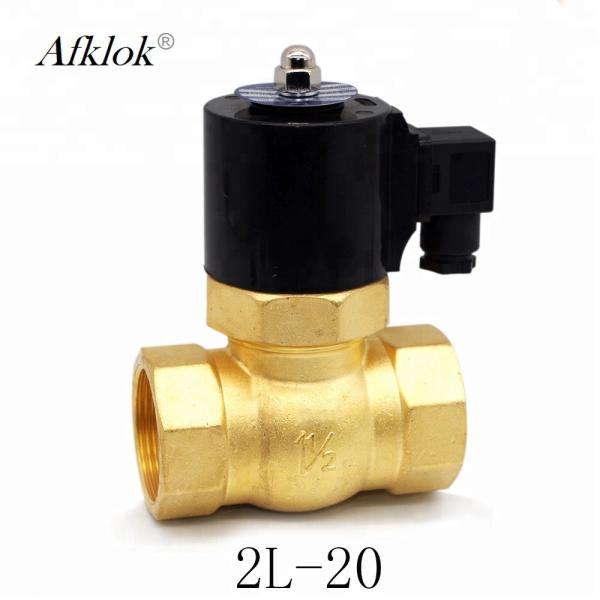

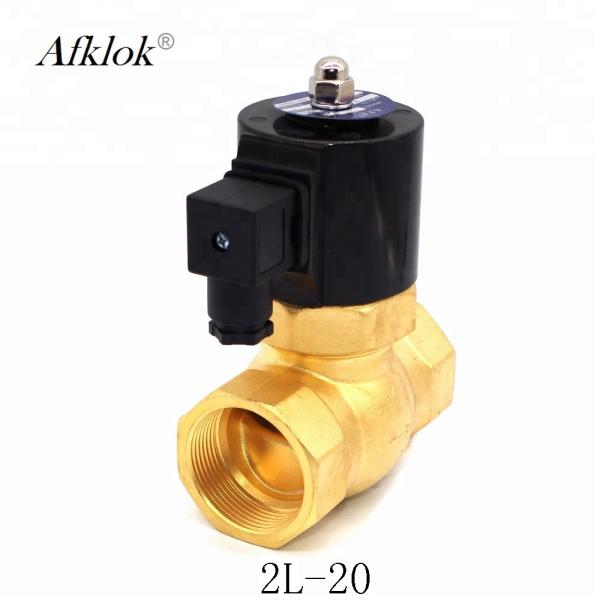

Pilot Type Steam Air Valve , 3/4 Inch Shut Off Valve DC 24V Less Than 180℃
Pilot Type Steam Air Valve , 3/4 Inch Shut Off Valve DC 24V Less Than 180℃
Pilot Type Steam Air Valve , 3/4 Inch Shut Off Valve DC 24V Less Than 180℃
Pilot Type Steam Air Valve , 3/4 Inch Shut Off Valve DC 24V Less Than 180℃
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
2L-20
Supply Ability :
30000 Set/Sets per Week
Packaging Details :
White box + Export packing
MOQ :
1 - 9 Sets
Price :
Negotiable
Certification :
CE
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Power :
Solenoid
Media :
Water
Port Size :
3/4"
Operating pressure range :
0.2-1.6Mpa
Insulation grade :
B class
Media Temperature :
less than 180℃
Standard or Nonstandard :
Standard
Description

High Temperature Pilot Type Brass 3/4 inch Steam Solenoid Valve DC 24V

DESIGN FEATURES
1. Pilot
2. Fit for Liquid gas steam
3. Normally open closed.
4.Pipe size from 1/2' to 2' .
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
6.Thread connector : G
7.Large flow.
8.Material: Brass
Structure Parameters

Characteristic

1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.
2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.
3.Install way: Media flow direction and on the arrow consistent.
The coil vertically upward, the working media clean and no particle impurities.

Maximum working pressure 1.6Mpa
Operating pressure range 0.2-1.6Mpa
Media temperature <20cst liquid gas steam
Operation Pilot type
Voltage AC:380V 220V 36V/50Hz DC:24V
Isulation grade B class
The power supply range -15%~+10%
Power 26W
Response time open <=2 second close<=3 second
Install way Media flow direction and the no the arrow consistent.The coil vertically upward, the working media clean and no particle impurities
Pilot Type Steam Air Valve , 3/4 Inch Shut Off Valve DC 24V Less Than 180℃
Model Thread Size Material
2L-15 G 1/2" Brass
2L-20 G 3/4" Brass
Brass
Brass
Brass
Brass
2L-25 G 1"
2L-32 G 1 1/4"
2L-40 G 1 1/2"
2L-50 G 2"
