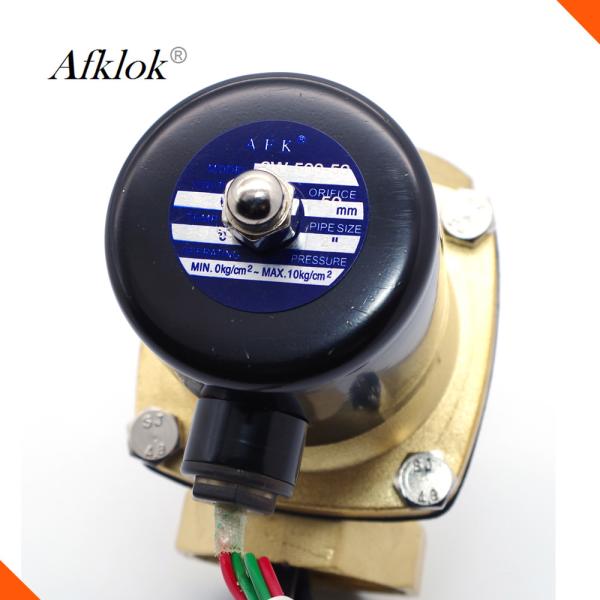

G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
2W-500-50
Supply Ability :
50000 Piece/Pieces per Week
Packaging Details :
pp bag+inner box+ export carton
MOQ :
10 - 99 Pieces
Price :
Negotiable
Certification :
CE
Power :
Solenoid
Structure :
Diaphragm
Connection :
G, NPT
Max. working pressure :
10bar
Standard or Nonstandard :
Standard
Port :
Shenzhen
Description
2 inch Low Pressure Valve 24V DC Solenoid Electric Water Valve Normally Closed
Product Description
G Connector Low Pressure Electric Valve , Stainless Steel Solenoid Valves For Water
2W series
Model NO.
pipe size
Orifice size
CV
Size range
2W-025-06
1/8
2.5mm
0.23
2W-025-08
1/4
4mm
2W-040-10
3/8
4mm
0.6
2W-160-10
16mm
4.8
2W-160-15
1/2
16mm
4.8
2W-200-20
3/4
20mm
7.6
12W-250-25
1"
25mm
12
2W-320-32
1-1/4"
32mm
24
2W-400-40
401-1/2"
40mm
29
2W-500-50
2"
50mm
48
Application
Air, water, oil, the neutral gas liquid
Operating
direct acting
type
normally closed
body material
brass
viscosity
(below) 20CST
Working pressure
0-10abr (water, air), 0-7bar(oil)
Voltage
220VAC, 24VAC, 24VDC, 12VDC, 110VAC,38VAC (allow ±10%)
Material of seal
-5-80℃ (Normal)
-5-120℃
-5-150℃
NBR
EPDM
Viton

Main Features

the direct-acting type diaphragm structure without pressure to open to extend the using field.
Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
Can choose plastic type,. Explosion-proof energy-saving.
