Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Direct Acting Water Solenoid Valve 40mm Viscosity Below 20CST CE Certification
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
2W-400-40
Supply Ability :
30000 Set/Sets per Week
Packaging Details :
White box+Export packing
MOQ :
1 Set/Sets
Price :
Negotiable
Certification :
CE
Application :
General
Applicable :
gas, water, liquid
port size :
1/8"-2"
operating :
direct acting
Port :
Shenzhen
Description

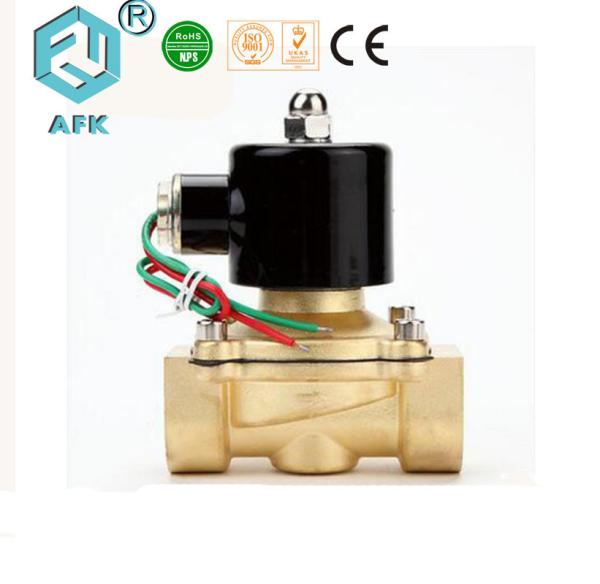

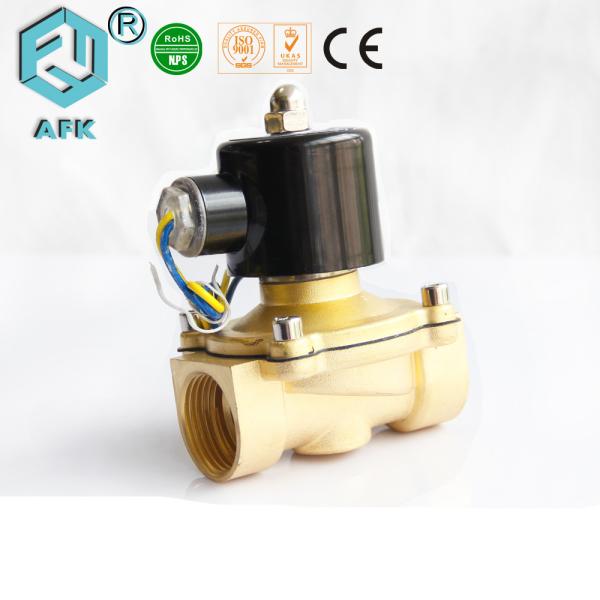

Brass Direct Acting Normally Closed 12V 40mm Solenoid Valve Water

Technical data

Model NO.

2w-025-06

2w-025-08

2w-040-10

2w-160-10

2w-160-15

2w-200-20

2w-250-20

2w-320-32

2w-400-40

2w-500-50

Pipe size

1/8”

1/4”

3/8”

1/2”

3/4”

1”

1 1/4“

1 1/2”

2”

Orifce size

2.5mm

4mm

4mm

16mm

16mm

20mm

25mm

32mm

40mm

50mm

CV valve

0.23

0.6

4.8

4.8

7.6

12

24

29

48

fuild

Air, water, ol, the neutral gas,liquid

Service voltage

AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%

Operating

Direct acting

Type

Normally closed

Body Material

Brass

viscosity

(Below)20CST

Working pressure

Water, air;0-10kgf/m2 ;oil:0-7kgf/m2

Material of seal

Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON


Main Features
  1. the direct-acting type diaphragm structure without pressure to open to extend the using field.
  2. Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
  3. Can choose plastic type,. Explosion-proof energy-saving
