High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R31
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
CE
Structure :
Diaphragm
Max inlet pressure :
500, 3000 psig
Outlet pressure range :
0~25, 0~50, 0~100, 0~250 psig
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Leakage rate :
2*10-8 atm cc/sec He
Cv :
0.06
Valve seat :
FCTFE, PTFE, Vespel
Body material :
316L, Brass
Diaphragms :
316L
Port :
SHENZHEN
Description
Product Description

High Pressure Stainless Steel Dual Stage Pressure Regulator

R31 Series stainless steel pressure regulator , two-stage diaphragm pressure reducing construction, stable output pressure, applied to high pure gas, standard gas, corrosive gas and so on.

Material List
Tenchnical Data
Body
316L, Brass
Max inlet pressure
500, 3000 psig
Roof
316L, Brass
Outlet pressure
0~25, 0~50, 0~100, 0~250psig
Diaphragm
316L
Proof pressure
1.5 times of maximum rated pressure
Filter mesh
316L (10μm)
Working temperature
-40°F-+165°F(-40°C-+74°C)
Valve seat
PCTFE, PTFE, Vaspel
Leakage rate
2*10-8 atm cc/sec He
Spring loaded
316L
Cv
0.06
Valve disc regulation pole
316L
Body Thread
1/4" NPT ( F )
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator

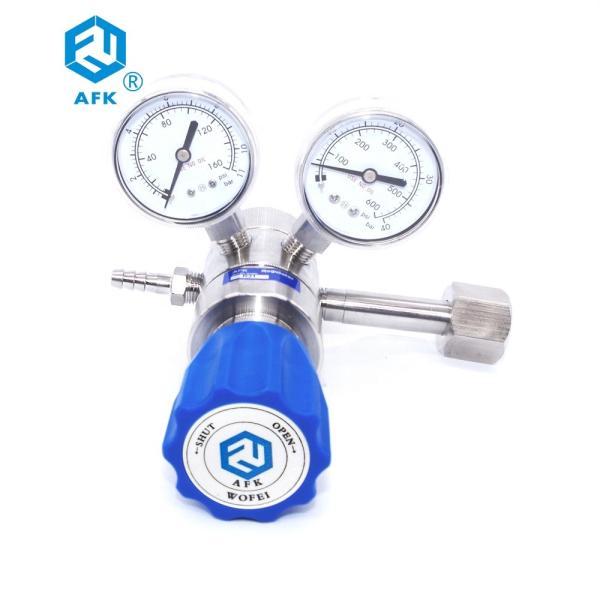

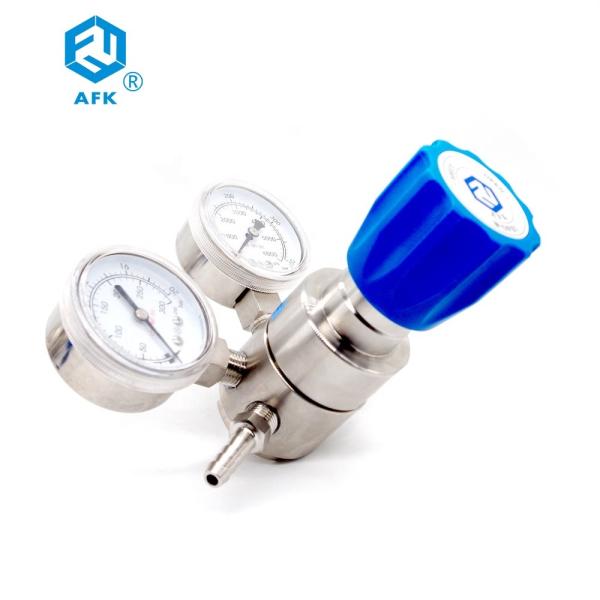

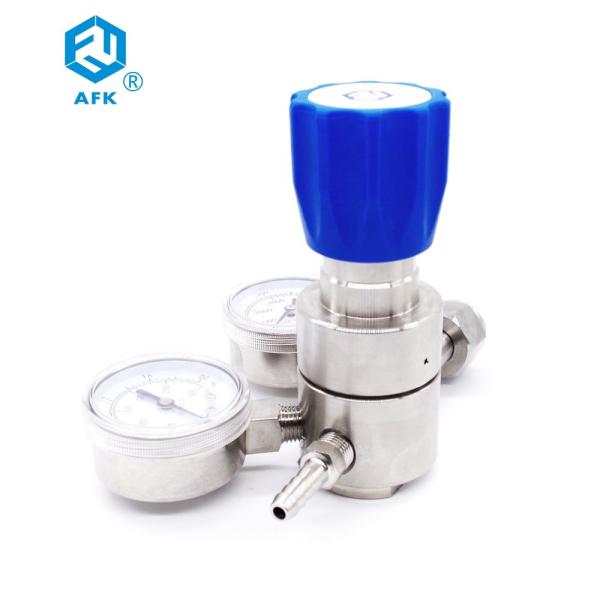

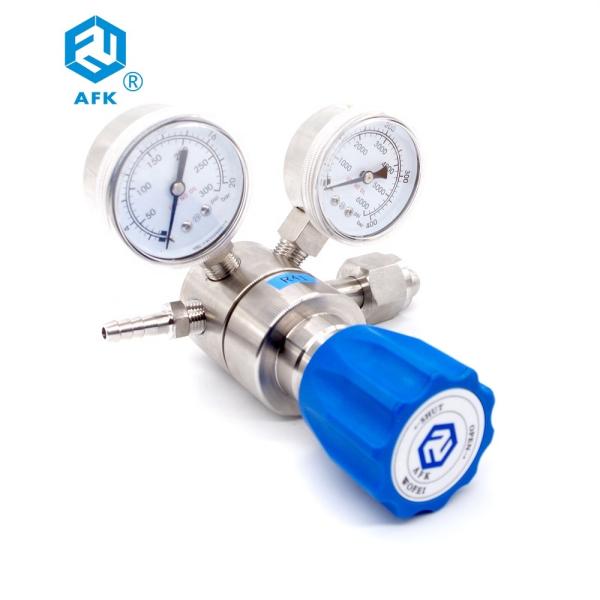

Detailed Images
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
High Pressure Stainless Steel Dual Stage Hydrogen Gas Pressure Regulator
R31 L B G G 00 00 02 P
Item Body Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

 Inlet size Outlet size Options
R31 L:316 M D:3000psi G:0-250psig G:MPa gauge 00:1/4 NPT(F) 00:1/4 NPT(F) P:panel mounting
B:Brass Q F:500psi I:0_100psig P:Psig/bar gauge 01:1/4 NPT(M) 01:1/4 NPT(M) R:With relief valve
K:0-50psig W:No gauge 23:CGA330 10:1/8 OD N:With needle valve
L:0-25psig 24:CGA350 11:1/4 OD D:With diaphragm valve
Q:30 Hg Vac-30psig 27:CGA580 12:3/8OD
S:30 Hg Vac-60psig 28:CGA660 15:6mm OD
T:30 Hg Vac-100psig 30:CGA590 16:8mm OD
U:30 Hg Vac-200psig 52:G5/8-RH(F) 74:M8X1-RH(M)
63:W21.8-14H(F)
64:W21.8-14LH(F)

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
