High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R41
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
1 - 9 Sets
Price :
Negotiable
Certification :
CE
Structure :
Piston
Max inlet pressure :
3000, 6000 psig
Outlet pressure range :
0~250, 0~500, 0~1500 psig
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-10° F ~+165° F(-23°C+74°C)
Leakage rate :
bubble-tight testing
Cv :
0.06
Valve seat :
FCTFE
Body material :
Ss316L
Strainer :
316L(10 μm)
Port :
SHENZHEN
Description
High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator

Product Application

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.
Technical Data

1)Max inlet pressure: 3000, 6000 psig

2)Outlet pressure: 0~250, 0~500, 0~1500, 0~3000 psig

3)Proof pressure: 1.5 times of maximum rated pressure

4)Working temperature: -10°F-+165°F(-23°C-+74°C)

5)Leakage rate: bubble-tight testing

6)CV: 0.06

7)Body Thread: 1/4" NPT ( F )

8)Body/Bonnet/Stem/Spring loaded: 316L

9)Filter mesh: 316L (10μm)

Main Features

1) Piston pressure- reducing Structure.

2) Body Thread : 1/4“ NPT ( F )

3) Filter element installed internally

4) Panel mountable or wall mounted

Typical applications

1) Laboratory

2) Gas analysis

3) Process contral

4) Gas bus-bar

5) Testing equipment

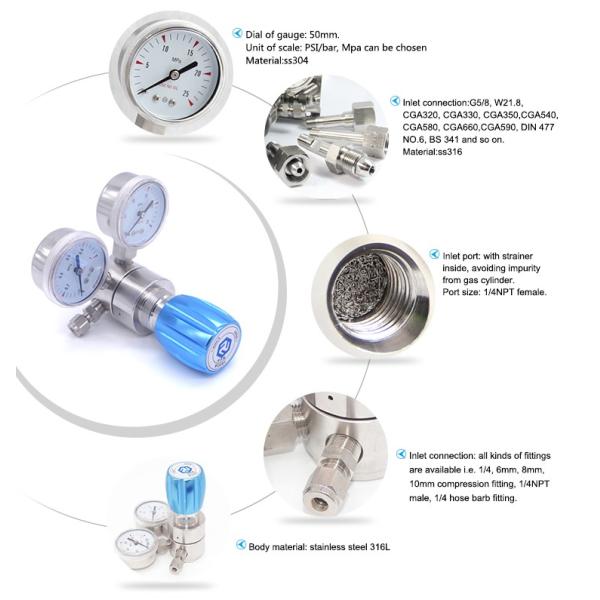

Detailed Images

Main Features

Name: R41 Pressure Reducer
Brand: AFK
Original: China
R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.

High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator

High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator

Ordering Information

R41 L B B D G 00 00 P
Item Body Materia Body Hole Inlet Pressure Outlet Pressure Pressure Gauge Inlet Size Outlet Size Options
R41 L:316 A B:6000psig D:0~3000psig G:MPa gauge 00:1/4″NPT(F) 00:1/4″NPT(F) P:Panel mounting
B:Brass B D:3000psig E:0~1500psig P:Psig/bar gauge 00:1/4″NPT(M) 00:1/4″NPT(M)
D F:0~500psig W:No gauge 10:1/8″OD 10:1/8″OD
G G:0~250psig 11:1/4″OD 11:1/4″OD
J 12:3/8″OD 12:3/8″OD
M 15:6mm”OD 15:6mm”OD
16:8mm”OD 16:8mm”OD

High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator

High Pressure Piston Type Stainless Steel Oxygen Pressure Regulator

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
