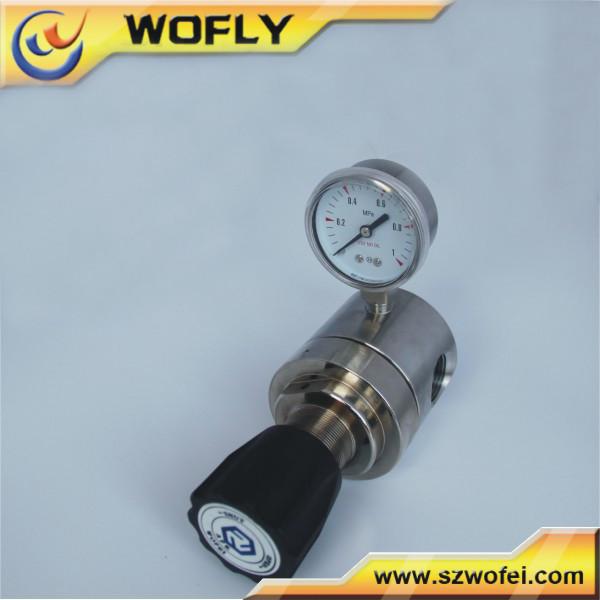

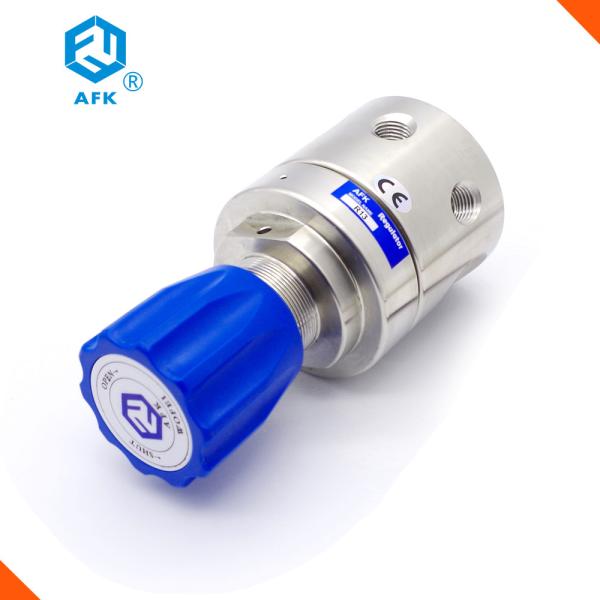

Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R13
Supply Ability :
3000 Piece/Pieces per Day
Packaging Details :
one piece in a box , eight boxes in a carton .
MOQ :
1 Piece/Pieces
Price :
Negotiable
Certification :
CE
Material :
Stainless Steel
Application :
Chemistry
Type :
Single-stage
Screw thread :
Requirement Thread
Media :
Compressed Air
Applicable gas :
Pure Gas
Warranty :
1 Year
Port :
Yantian
Description

liquid nitrogen pressure reducer with gauge manometer

pressure gauge manometer, liquid nitrogen redecer price, pressure reducer

Design Features

Single-stage decompression structure

Metal-to-metal diaphragm seal

Body thread: input and output connection 3/4” NPT(F)

Gauge and safety valve connection:1/4” NPT(F)

Easy to clean inside

Filter mesh inside

Panel mounting and wall mounting available

Specification

Maximum inlet pressure: 500, 1500psig

Output pressure:0~15, 0~25, 0~75, 0~125psig

Safety testing pressure: 15 times of maximum inlet pressure

Working temperature: -40℉~+165℉(-40℃~+74℃)

Leakage rate: 2×10-8 atm.cc/sec

CV value=0.08

Typical Application

Gas purge system

Special gases

Gas bus-bar

Petrochemical industry

Material

Body: 316L, Brass

Bonnet: 316L, Brass

Diaphragm: 316L

Strainer: 316L(10μm)

Seat: PCTFE, PTFE, Vespel

Spring: 316L

Stem: 316L

R13 L B E H G 04 04 P
Item Body Material Body Hole Inlet pressure Outlet pressure Pressure gage Inlet size Outlet size Options

L:316L

B:Brass

A

B

D

G

J

M

E: 1500psig

F: 500psig

H: 0~125psig

J: 0~75psig

L: 0~25psig

M: 0~15psig

G:Mpa gauge

P:Psig/bar gauge

W:No gauge

04: 1/2" NPT(F)

05: 1/2" NPT(M)

06: 3/4" NPT(F)

13:1/2" ferrule fitting

14:3/4" ferrule fitting

Other type is available

04: 1/2" NPT(F)

05: 1/2" NPT(M)

06: 3/4" NPT(F)

13: 1/2" ferrule fitting

14: 3/4" ferrule fitting

Other type is available

P: Panel Mount

R: Safety valve

Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
Liquid Stainless Steel Pressure Regulator Panel Mounting With Gauge Manometer
FAQ

Q: Are you trading company or manufacturer?

A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?

A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
