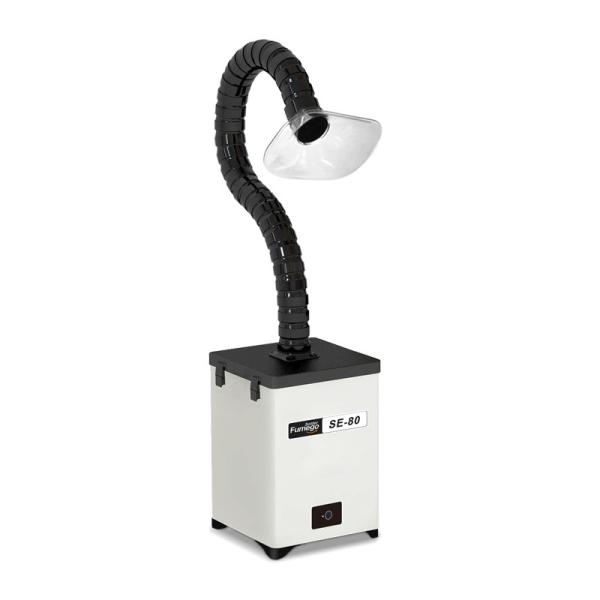

Long Service Life Small Size Fume Extractor for Soldering and Welding​

Description:

Mini Soldering fume extractor is small, save space. Ducts can be universal adjustment, suitable for all kinds of workstation. The air after purification meets PONY EIA test. Brand-new design filters absorb dust from four sides, greatly improve the dust capacity. Three fan speed adjustment, the maximum can reach 180-250m2/h airflow. For our mini soldering fume extractor: it is used for soldering, laser marking, laser cutting beauty salon etc.

We can customize the color and your company logo.

Product Features:

1.New economic version,lower cost;
2.Smaller size,but with bigger filtering capacity;
3.360° dirt filtering desighn increases the dirt holding capacity by two times:
4.DC frequency conversion motor,intelligent and energy-saving,with a life-span as long as 40K hours;
5.New diamond-shaped nozzle greatly increases the extraction area.

Applications:

Soldering,Laser Marking & Carving,Moxibustion,Chemical Lab,Beauty Salon,solder Robot Fume, etc.

Filter replacement Period: 3-6 months

Competitive Advantage:

Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.

Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

FAQ:

1. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant smell (7) to reduce dust and other harmful substances, and so on.

2. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.

3. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.

4. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.

5. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.

6. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.

7. What kind of support you can get from Waterun?

Answer: 12 months trouble-free warranty and lifetime online support. Experienced technician to guarantee lifetime online support by Whatsapp/Skype/Wechat/Email/ Remote Assistant- Teamviewer. So no need to worry about the technical support due to time difference. We had been in this industry and serve oversea clients more than 19 years, we know clearly how to support best.So please rest assured about not only before-sale, but also the after-service.
