80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber
Specifications
Brand Name :
Waterun
Model Number :
XS-080
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD145 ~ 210
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
10000 units per month
Delivery Time :
3-10 days
Packaging Details :
fume extraction unit 54 X 39 X 58 cm 14kg
Name :
small fume extractor
Filters :
3 layers
Systemic Flow :
180 m3/h
Filtering Efficiency :
99.97% @0.3 micron
Arm Information :
dia.65mm x 1.2m
Power :
80W
Dimensions(mm) :
265 x 265 x 383 mm
Noise :
Less than 50dB
Description

99.97% Purification Rate Brushless Motor Portable Solder Fume Extractor​​


Description:

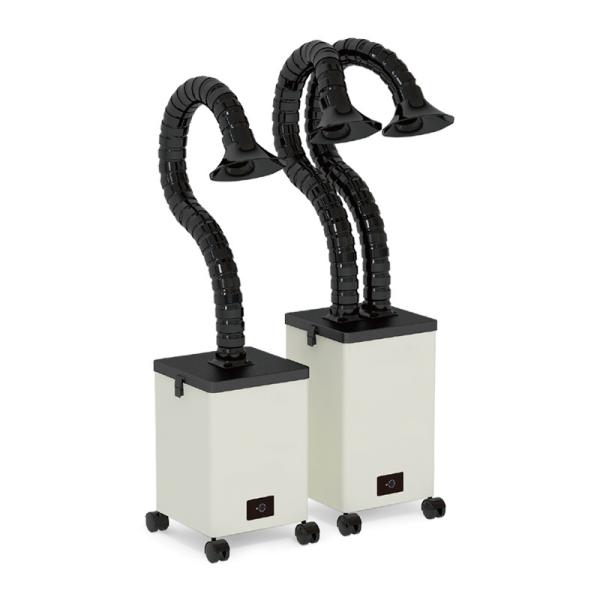

These soldering smoke purifier are small, save space,there’s four universal wheels on the bottom, it makes the movement easy and flexible. Ducts can be universal adjustment, suitable for all kinds of workstation. The air after purification meets PONY EIA test. Brand-new design 3 stage filtration filters absorb dust from four sides, greatly improve the dust capacity.Three fan speed adjustment, the maximum can reach 180-250m2/h airflow.

80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber

Technical Details:

Model XS-80
Power 80W
Noise <55 dB
Systemic Flow 180 m3/h
Air Velocity 14 m/s
Filter Size

Pre-filter: 178 x 495 x 9mm;

Middle filter: 193 x 193 x 197mm;

Main filter: 238 x 238 x 198cm;
Gross Weight 11kg
Cabinet Dimensions 280 x 280 x 430mm
Package Dimensions 45 x 38 x 52cm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Filter Layer 3 Layers
Remote Control Not Included
Arm Dimension Diameter 65mm x Length 120cm
Packing List

Main Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Pre-Filter: 5pc (4pieces inside machine)

Middle Filter: 1pc (Included in machine)

Main Filter: 1pc (Included in machine)

Product Features:

1. Cheap price version and high quality fume extractor;
2. Smaller size, but with larger filtering capacity;
3. With 3 layers filters combination,360℃ degree filtering design big dirt holding capacity;
4. New Diamond-shaped nozzle greatly increases the extraction area;
5. DC Brush-less motor, intelligent and energy-saving, with a life-span as long as 40K hours.

Applications:

Manual Soldering Fumes, Solder Pot Fumes, Soldering Robot Fumes, Laser Cutting Fumes, Laser Markings, Beauty Salon,Hair Salon, Moxibustion...

Additional Information:

Available Filter Efficiencies Pre Filter
For filter big particles of above 50 microns

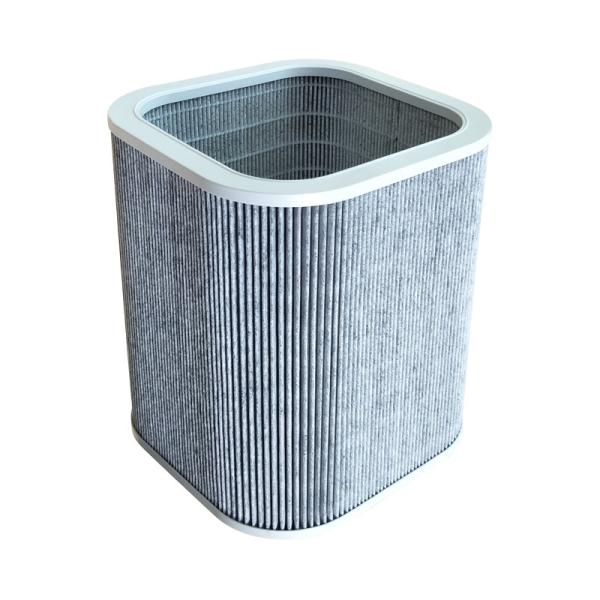

Middle Filter
For particles above 0.3 microns, its filtering efficiency reaches 99.97%.

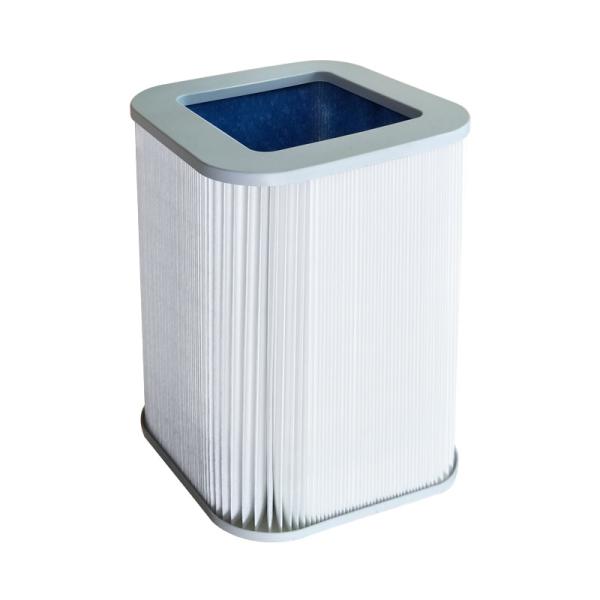

Main Filter
For filter dust particles above 0.3 microns, filtering efficiency reaches 99.97%,
For filtering hazardous gases, its filtering efficiency reaches above 95%;
Filter Replacement Period

Pr-Filter: 1 week to 1 month

Middle Filter: 2-3 months

Main Filter: 3-6 months

However, it can be adjusted as per the exact pollutants generated in different Environment;


Company Introduction:

Waterun Technology's fume extractory factory located in Dongguan China, we have been focusing on the purification of harmful fumes for 18 years. Now Waterun has become the leading manufacturer of fume extractors in China. Our products are widely used for eliminating Solder Fumes, Laser Fumes, Welding Fumes, Beauty Salon Fumes, Medical Fumes, 3D Printing Fumes, etc.

We own several brands: NEW OXYGEN, FUME GO, QUBO, etc.

Waterun makes really effective Fume Extractors only. Our superiority in technology and high quality has gained the leading position in the air purifying industry. The filtering efficiency of our Fume Extractors has reached the highest standard in the world.

Our Quality:

Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.

80W Small Portable Solder Fume Extractor , Brushless Motor Solder Smoke Absorber

OEM & ODM Services:

We can offer OEM & ODM services. Welcome to talk with us in details.
