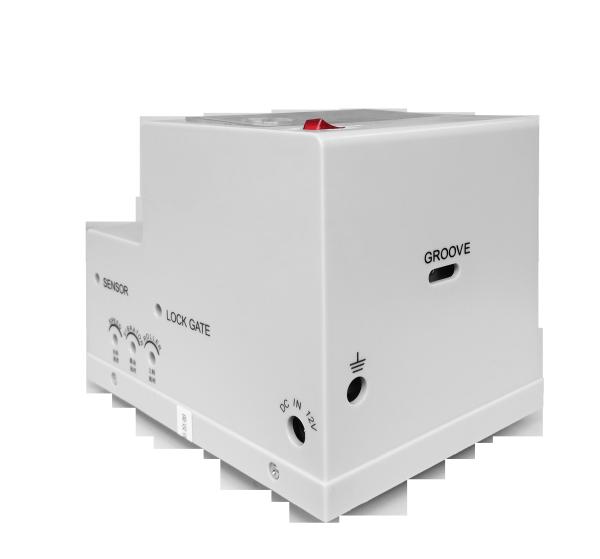

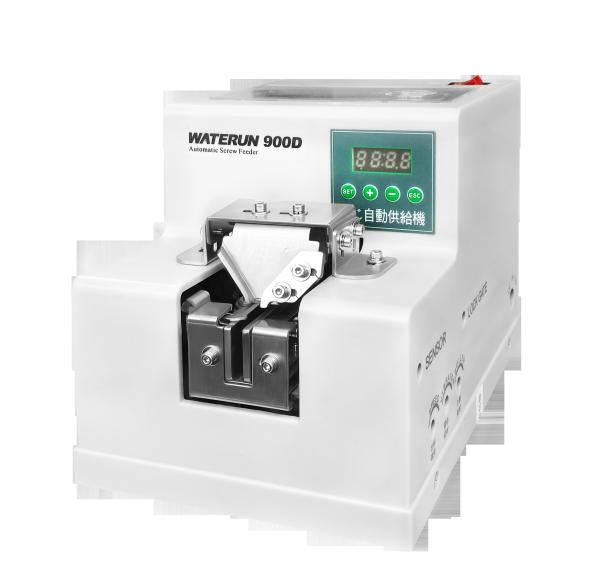

Stable Automatic Screw Feeding System Durable Stainless Steel
Stable Automatic Screw Feeding System Durable Stainless Steel
Stable Automatic Screw Feeding System Durable Stainless Steel
Stable Automatic Screw Feeding System Durable Stainless Steel
Specifications
Brand Name :
waterun
Model Number :
Waterun-900D
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD54~ 194
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 units per month
Delivery Time :
3-15days
Applicable screw size :
M1.0-M3.9
Screw length :
Up to 20mm
Application :
8 different sizes
Color :
White
Description

Auto Screw Feeder Driver Conveyor System Screw Counting Function Stainless Steel

Product Detail:

1. New technology , the machine will never get jammed with screws .
2. Convenient to operate and fix the problem by the operator .
3. With self-detecting system for machine breakdown .
4. Rail adjustment range : M1.0-M5.0
5. Digital display prevents error occurred .
6. Automatic circular counting with fixed quantity .

Stable Automatic Screw Feeding System Durable Stainless Steel

Stable Automatic Screw Feeding System Durable Stainless Steel

Technical Details:

Model Waterun-900D
DC power supply AC220V, DC12V 500MA, AC Adapter
Applicable screw length(under head) Up to 20mm
Rail adjustment range M1.0-M5.0
Speed of picking up 1.5 sec/piece
Product size 180 x 125 x 150mm
Weight About 3kg

Introduction:

It is unnecessary to target the screw cap, compared to screw plate, each screw can save 1.4 seconds, productivity increased by 4 times!
When the settings achieved, the machine will automatic alarm and cycle, it is very clear to see with digital display panel.
When non--normal condition occurs, the machine can automatic alarm.
The volume is exquisite, does not occupy the space.

Problems and solutions :

Malfunction Reason Solutions
Screw Feeder can't work 1:Power supply broken,2:Switch is broken Replace the broken part
Power indicator is on,but the machine can't work

1:Front/back sensor block the signal；

2:The motor power cable is cut

1:check and adjust

2:Rewelding the wire
Screw stuck in rail Up and down brush . The gap between the rail or the position of high limited plate is wrong . Making the adjustment after checking
Dropping the screw The up/bottom adjust plate didn't installed very well Adjust the position of the adjusting plate .
Vibrating all the time

1:The speed of vibration is too big , and the setting delayed time is to long ；

2:Front/ back sensor was in the wrong place

 Making the adjustment.
It is too slow to give out the screws .

1:The screw feeder was put on the unflat place；

2:The speed of vibration is too small ；

1:Re-adjust the angle of the rail ;

2:Adjust the speed of giving the screws .；

3:Lengthern the time of delivering and giving the screws .
