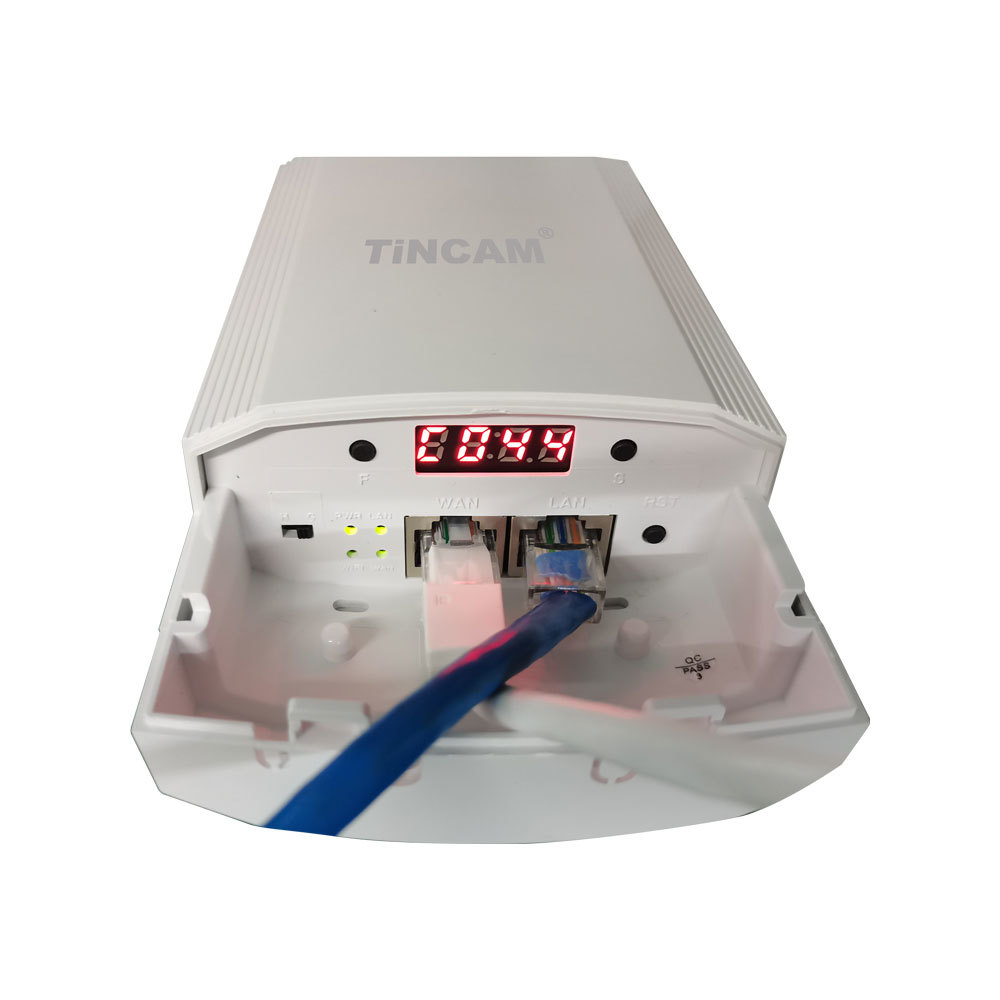

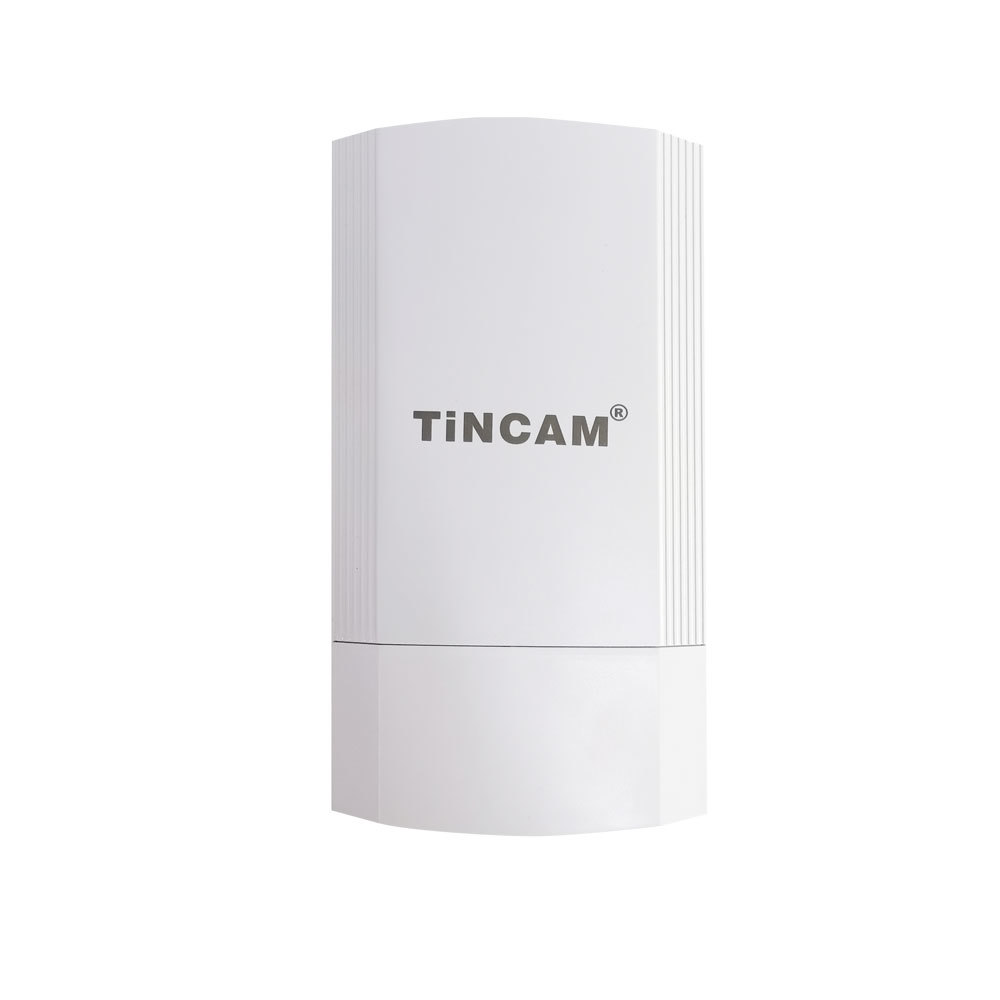

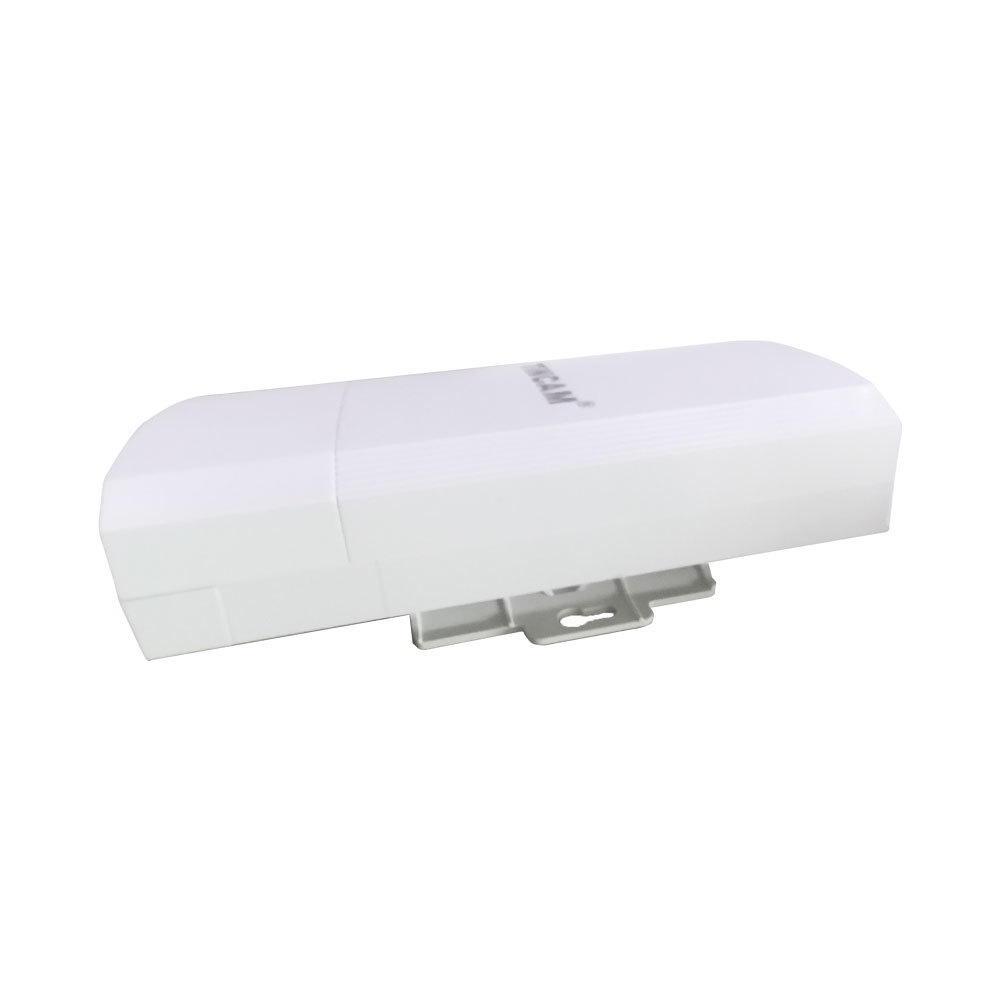

300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
300Mbps Wireless 2.4G Bridge CPE
Specifications
Memory :
DDR2 64MB (Highest support DDR2 128MB)
Wireless rate :
2.4G 300Mbps
Physical interface :
A 10/100M adaptive WAN port and a 10/100M adaptive LAN port; Support for Auto MDI/MDIX. One Reset Button and One DC Power Interface
modulation mode :
CCK OFDM
Maximum Power Consumption of Products :
< 5W
work environment :
Working temperature: - 10 40 Storage temperature: - 40 70; Working humidity: 10% to 90% RH does not condensate; Storage humidity: 5% to 90% RH does not condense
Indicator light :
1 power supply lamp, 1 WAN port lamp, 1 LAN lamp, 1 WiFi lamp, 4 signal lamps
Working frequency band :
2.4GHZ
Is POE Power Supply Supported? :
Non-standard 12V~18V 1A
antenna :
Non-removable 8dBi high gain directional antenna.
The power adapter :
DC 12V~18V/1A
FLASH :
SPI 8MB (Highest support 16MB)
Protocol standard :
IEEE802.11b/802.11g/802.11n/802.3/802.3u
Main chip :
AR9331
Description

802.11n 300Mbps High-Stability Wireless Bridge

Engineered for high-performance data transmission, this device features an ultra-strong stability chip and 8M/64M Flash configuration. Its streamlined IP65-rated shell ensures durability in outdoor environments, while the multi-signal indicator provides real-time monitoring of connection strength.

  • High-Speed Transmission: 300Mbps rate with 2.4G band support (2.3G-2.7G).
  • Robust Design: IP65-rated shell for reliable outdoor operation.
  • Advanced Connectivity: Dual 10/100 Mbps adaptive Ethernet interfaces with Auto MDI/MDIX.
  • Precise Monitoring: Multi-signal LED indicators for distance-based signal strength.

Product Attributes

FOB Unit: Piece
Included Accessories: Wire, Warranty Card, Installation Guide, Instruction, Tape, 15V/1A Non-standard POE Power Adapter

Technical Specifications

Parameter Detail
Main Chip AR9331
Memory DDR2 64MB (Up to 128MB)
FLASH SPI 8MB (Up to 16MB)
Wireless Rate 2.4G 300Mbps
Antenna 8dBi high gain directional
Power Supply Non-standard 12V~18V 1A POE
Power Consumption < 5W
Environment -10°C to 40°C (Work); -40°C to 70°C (Store)
