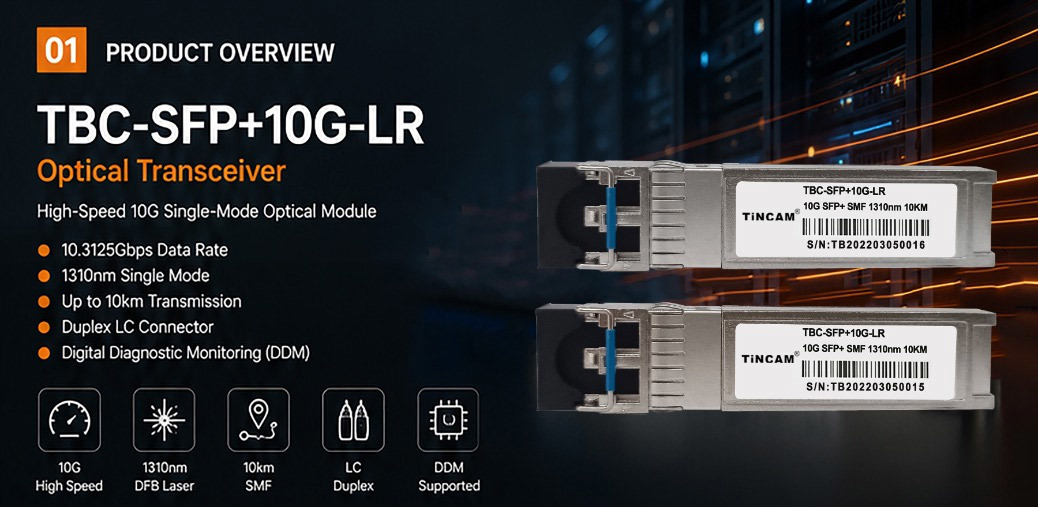

10G SFP+ LR Optical Transceiver Module 10GBASE-LR Single Mode Fiber 1310nm LC Duplex 10km SFP+ 10G Ethernet Transceiver TBC-SFP+10G-LR

Specifications

Model Number :

TBC-SFP+10G-LR

Form Factor :

SFP+ (Small Form-Factor Pluggable Plus)

Supply Voltage :

3.3V

Receiver Type :

PIN Photodiode

Warranty :

1 year

MOQ :

Packaging Details :

Package:Carton Box

Fibre Channel Support :

8G Fibre Channel

Wavelength :

1310nm

Power Consumption :

≤1W

Payment Terms :

T/T

Fiber Type :

Single Mode Dual Fiber

Transmitter Type :

DFB Laser

Typical Applications :

Enterprise Networks, Data Centers, FTTH, Campus Networks, ISP Networks, Backbone Transmission

Certification :

CE,FCC,ROHS

Data Rate :

Up to 10.3125Gbps

Place of Origin :

China

Ethernet Standard :

10GBASE-LR

OEM & ODM :

Supported

Supply Ability :

500,000 Pieces per Year

Fiber Standard :

OS2 9/125μm

Hot Swappable :

Yes

Operating Temperature :

0°C to 70°C (Commercial Grade)

Delivery Time :

5-8 working day

Connector Type :

Duplex LC

Digital Diagnostic Monitoring :

DDM

Max Transmission Distance :

10km

Brand Name :

TiNCAM

Product Type :

SFP+ Optical Transceiver Module

Compatibility :

Compatible with Cisco, MikroTik, Ubiquiti, HPE, Juniper, Huawei, Ruijie, TP-Link and other MSA-compliant devices

Description

The TBC-SFP+10G-LR is a high performance, cost effective modules, which is supporting up to 10.3125Gbps, and transmission distance up to 10km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a laser driver and a 1310nm DFB laser. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA) and a Limitting Amplifier. The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100Ohms differential impedance and AC coupled in the module. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Transmit Fault (Tx_Fault) is provided to indicate that the module transmitter has detected a fault condition related to laser operation or safety. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver. A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.

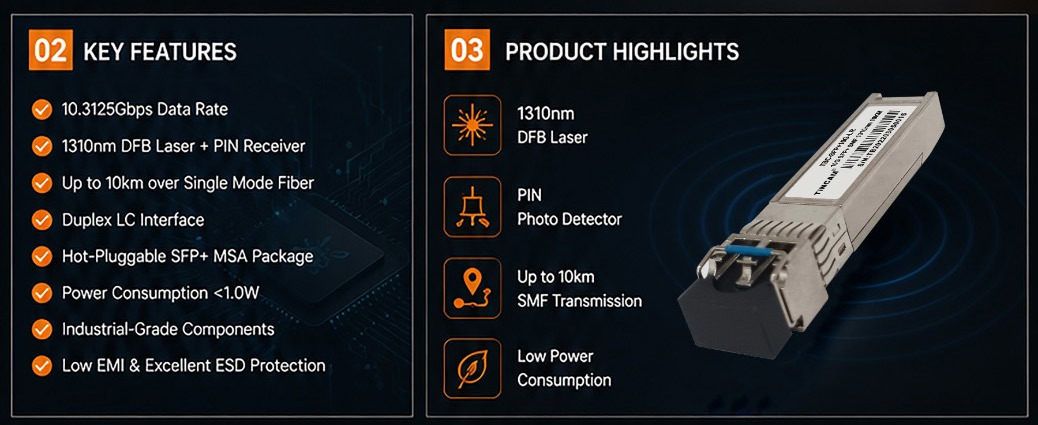

Key Features

Up to 10 km transmission on SMF
Up to10.3125Gbps
1310nm DFB laser and PIN receiver
Electronic Interface compliant with SFF-8431
2-wire interface for integrated Digital Diagnostic monitoring
SFP+ MSA package with duplex LC connector
Hot pluggable
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 1.0W
Operating case temperature: 0~+70°C

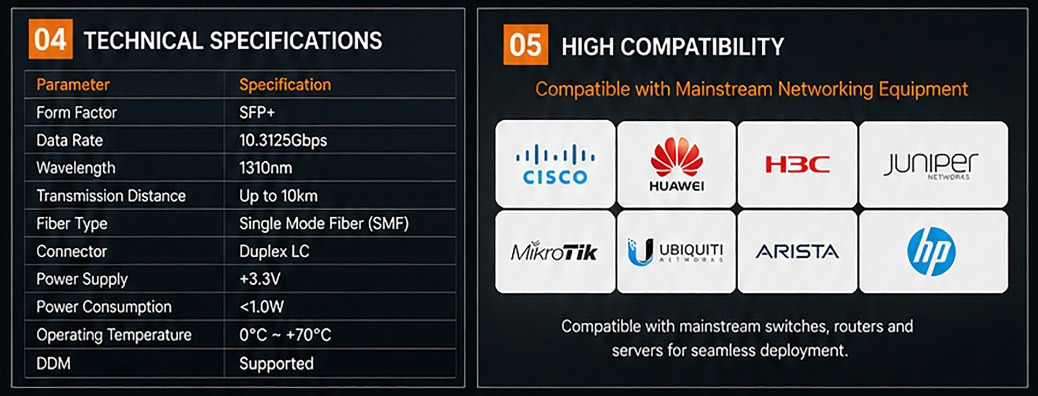

Technical Specifications

Parameter	Min	Typ	Max / Unit
Data Rate (Ethernet)	-	10.3125	Gb/s
Data Rate (Fiber Channel)	-	10.518	Gb/s
Supply Voltage (Vcc)	3.13	3.3	3.47 V
Supply Current (Icc3)	-	-	300 mA
Operating Case Temp.	0	-	70 °C
Diff. input voltage swing	180	-	1000 mVpp
Input Diff. Impedance	-	100	Ω
Wavelength (Tx)	1290	1310	1355 nm
Wavelength (Rx)	1260		1620 nm
Sensitivity	-	-	-14 dBm
Min. overload	0.5	-	dBm
