Specifications
Model Number :
TBC-STR1800
MOQ :
1
Packaging Details :
Package:Carton Box
Payment Terms :
T/T
Supply Ability :
120,000 Pieces per Year
Delivery Time :
5-8 working day
Brand Name :
TiNCAM
Certification :
CE,FCC,ROHS
Place of Origin :
China
Description

Product Overview

TBC-STR1800 is a high-performance, high-speed indoor 11a x dual-band ceiling AP, providing a maximum access rate of 574Mbps for 2.4G and 1201Mbps for 5G .

Product Features

• It has better transmission quality, higher transmission rate, and the maximum concurrent rate of the whole machine can reach 1775 Mbps .

• Support hardware watchdog function, automatic recovery of abnormal equipment , maintenance-free .

• Elegant appearance design, hidden port housing and beautiful wiring .

• Support 48V PoE , DC Two 12V power supply modes .

Product Parameters

Hardware specifications

Model

TBC-STR1800

Flash

SPI NOR 16MB

Memory

256M

2.4g Operating Frequency Band

2.4GHz – 2.484GHz

2.4g Wifi Transmission Protocol

802.11 b / g / n / ac / ax

5g Operating Frequency Band

5.150GHz～5.850GHz

5g Wifi Transmission Protocol

802.11 a / n / ac / ax

Built-In Antenna 2.4g

Antenna × 2PCS, gain: 4.6DBi

Built-In Antenna 5.8g

Antenna × 2 PCS Gain: 4DBi

Maximum Rate

2.4G provides a maximum access rate of 574Mbps, and 5G provides a maximum access rate of 1201Mbps

Maximum Supported Wireless Access

128+

2.4GHz Transmit Power

802.11b

11M

2 0 ±2dBm

1M

2 0 ±2dBm

802.11g

54M

19±2dBm

6M

20±2dBm

802.11n HT20

MCS7

18±2dBm

MCS0

20±2dBm

802.11n HT40

MCS7

17±2dBm

MCS0

19±2dBm

802.11ax HT20

MCS9

17±2dBm

MCS0

19±2dBm

802.11ax HT40

MCS 11

16 ±2dBm

MCS0

18 ±2dBm

5GHz Transmit Power

802.11a

54M

18 ±2dBm

6M

2 0 ±2dBm

802.11n HT20

MCS7

17 ±2dBm

MCS0

19 ±2dBm

802.11n HT40

MCS7

16 ±2dBm

MCS0

18 ±2dBm

802.11ac HT80

MCS9

15 ±2dBm

MCS0

17 ±2dBm

802.11a x HT80

MCS 11

14 ±2dBm

MCS0

16 ±2dBm

2.4GHz Receive Sensitivity

802.11b

11M

- 85 dBm

1M

-9 2 dBm

802.11g

54M

-72 dBm

6M

-90 dBm

802.11n HT20

MCS7

- 70 dBm

MCS0

-88 dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

802.11ax HT 2 0​

MCS 11

-60dBm

MCS0

-8 5dBm

802.11a x HT40

MCS 11

-56dBm

MCS0

-85dBm

5GHz Receive Sensitivity

802.11a

54M

-72dBm

6M

-9 2 dBm

802.11n HT20

MCS7

-70dBm

MCS0

-90dBm

802.11n HT40

MCS7

-68dBm

MCS0

-88dBm

802.11ac HT80

MCS9

-58dBm

MCS0

-85dBm

802.11ax HT80

MCS11

-55dBm

MCS0

-84dBm

2.4G EVM

802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB ; 802.11ax: ≤-35dB

5G EVM

802.11a: ≤ -25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB ;
802.11ax:≤-35dB

Frequency Offset

±20ppm

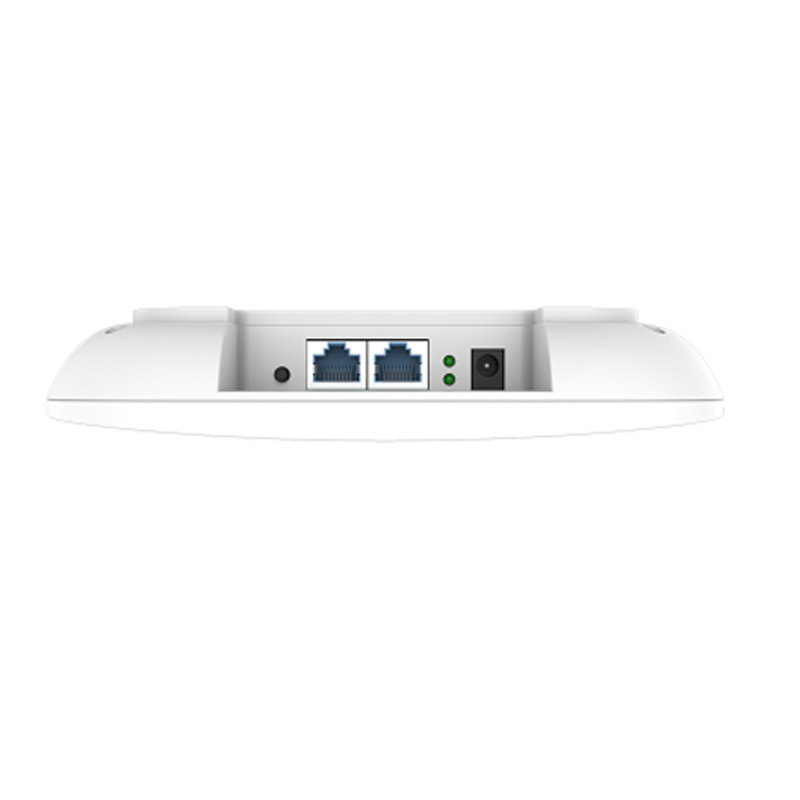

Interface (WAN)

1 10/100 /1000M adaptive WAN port, support 48V POE power supply

Interface (LAN)

1 10/100 /1000M adaptive LAN port

PoE

802.11af

DC Power Supply

12V 1.5A​​

Button

Reset button (press and hold for 6-10 seconds to restore to factory default settings)

LED Indicators

WAN port light, LAN port light, three-color light (three different colors represent: sys-red, 2.4G-green, 5.8G-blue)

Maximum Power Consumption

< 15W​

Dimensions

188mm*188mm*35mm

Operating Environment

Normal operating temperature: -20°C to 4 5°C; Storage temperature: -40°C to 70°C; Humidity: 5% to 95% (no condensation)
