Specifications
Model Number :
TBC-GF2505 / TBC-GFP2505
Switching Method :
Store-and-Forward
MOQ :
1
Packaging Details :
Package:Carton Box
Backplane Bandwidth :
14 Gbps
Power Connector :
Phoenix terminal block
Warranty :
5 years
Payment Terms :
T/T
Switching Latency :
<10 μs
Dimensions :
118 x 86 x 33mm
Weight :
0.36 kg
Overcurrent Protection :
4.0A built-in overcurrent protection
Supply Ability :
150,000 Pieces per Year
Power Consumption :
<3 W
Operating Temperature :
-40 to 85°C (-40 to 185°F)
MTBF :
≥300,000 hours
Delivery Time :
5-8 working day
Power Supply :
Dual power input with redundant backup
Reverse Polarity Protection :
Supported
Brand Name :
TiNCAM
Port Function :
10/100/1000Mbps auto-negotiation, full/half-duplex, Auto MDI/MDIX
Certification :
CE,FCC,ROHS
MAC Address Table :
2K
Place of Origin :
China
Packet Buffer :
1.2 Mbit
Description

Product Overview

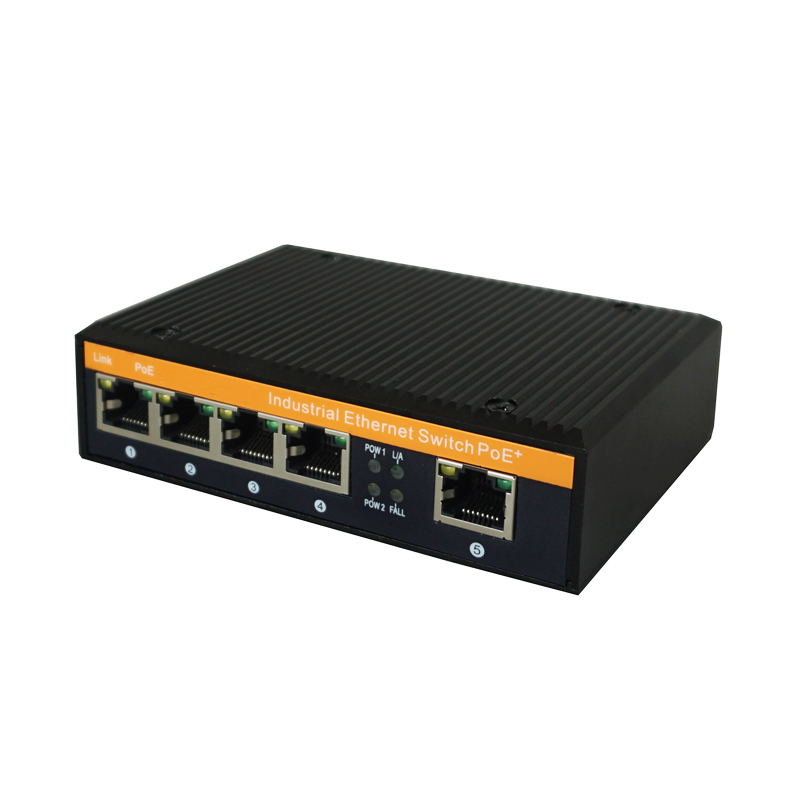

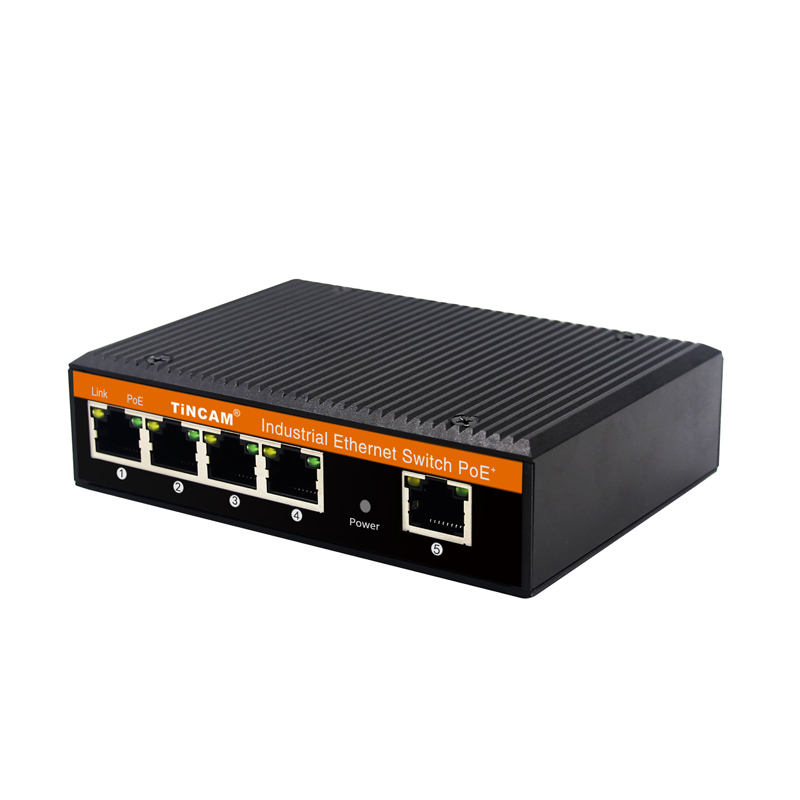

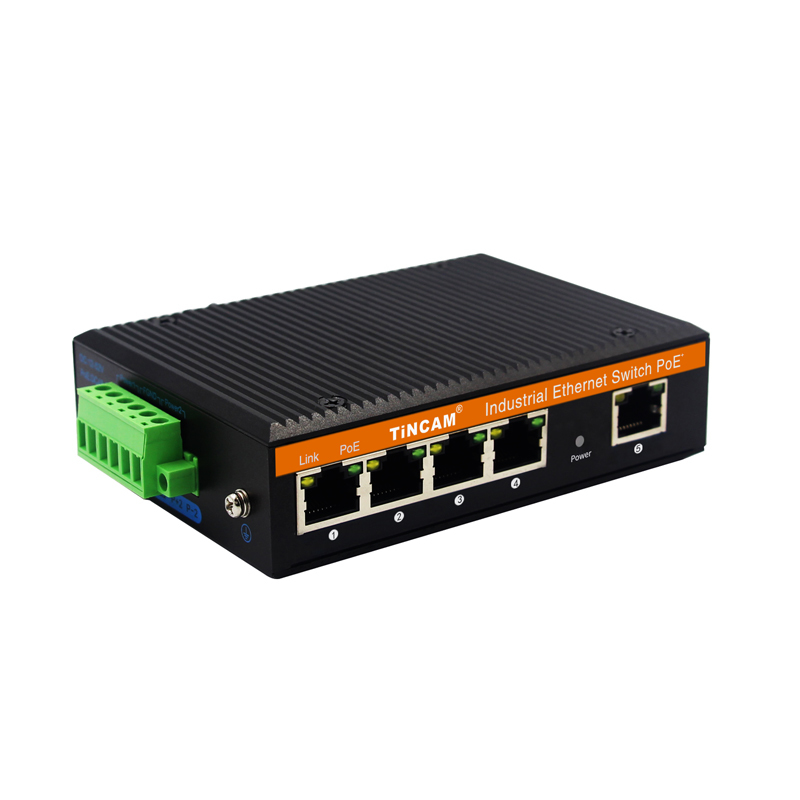

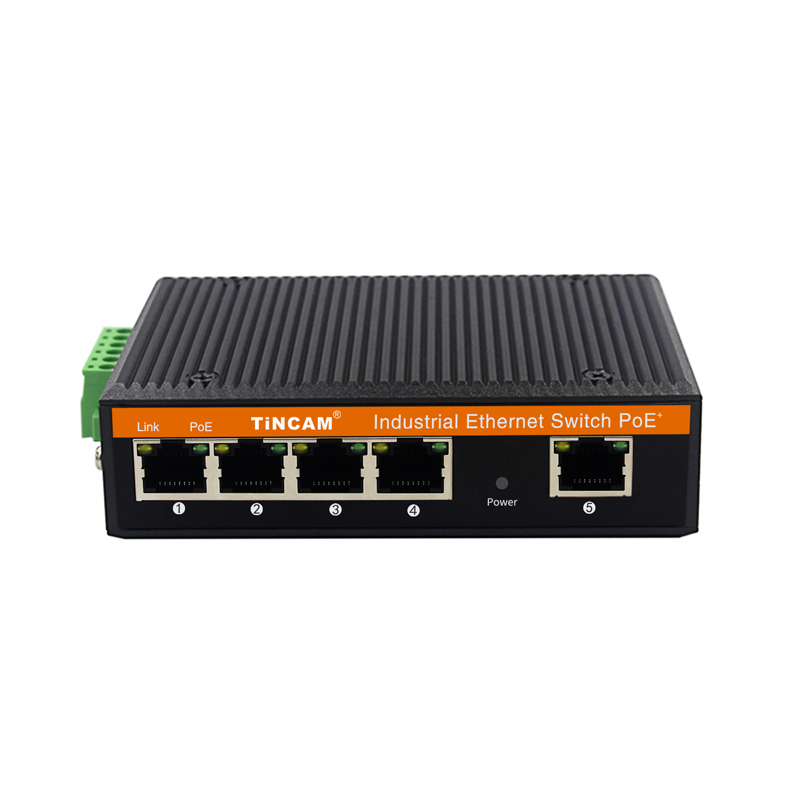

Tianbo TBC-GF2505 and TBC-GFP2505 are industrial Gigabit Ethernet switches designed to provide reliable and flexible network connectivity in harsh industrial environments. The TBC-GF2505 features 5 × 10/100/1000Base-T RJ45 Ethernet ports, while the TBC-GFP2505 features 5 × 10/100/1000Base-T PoE ports for both data transmission and power supply. Both models comply with FCC, CE, and RoHS standards and support a wide operating temperature range of -40°C to 85°C, providing stable operation in demanding environments. With a compact design, DIN-rail mounting, IP40-rated housing, and LED indicators for convenient status monitoring, the switches can be easily installed in control cabinets and other space-constrained locations. Designed for plug-and-play deployment, the TBC-GF2505 and TBC-GFP2505 provide reliable and convenient Ethernet networking solutions for industrial automation, surveillance, and other industrial applications.

Product Features

• Adopts high-quality optoelectronic integrated modules to provide excellent optical and electrical performance.
• Ensures reliable data transmission and long-term stable operation.
• Supports full-duplex and half-duplex modes with auto-negotiation capability.
• Ethernet ports support automatic MDI/MDIX, enabling automatic crossover detection.
• Built-in store-and-forward switching mechanism and support for multiple network protocols.
• Meets industrial-grade operating requirements with an MTBF of more than 300,000 hours.

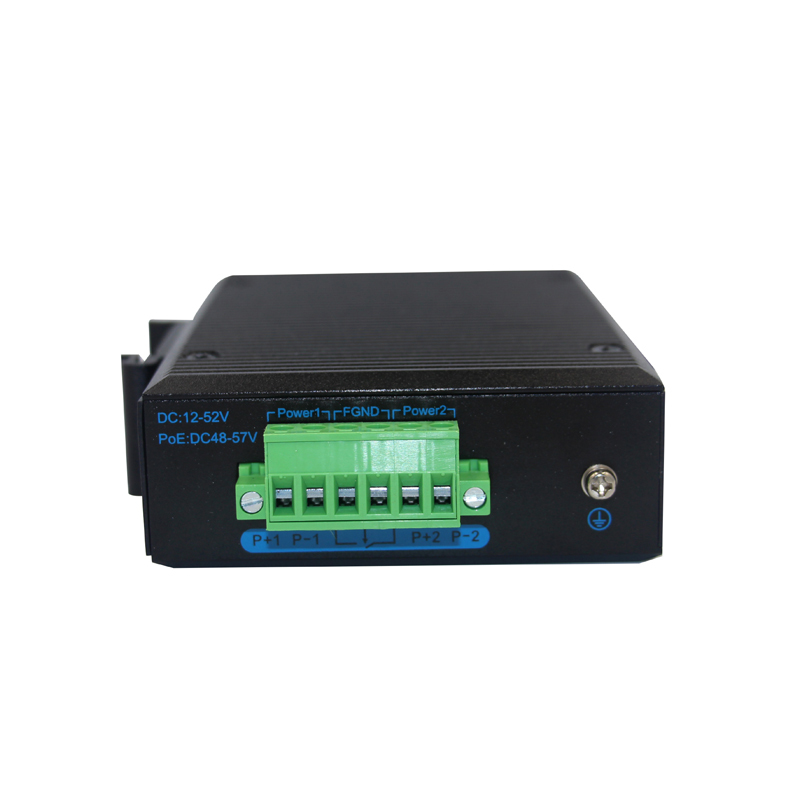

• Wide-range power input: TBC-GF2505 supports DC 12–52V, while TBC-GFP2505 supports DC 48–57V; both feature reverse polarity protection.
• Provides power surge protection up to 5000A (8/20 μs) for enhanced protection in industrial environments.

Product Parameters

Item Specification
Product Model TBC-GF2505 TBC-GFP2505
Product Type 5-Port Gigabit Industrial Ethernet Switch 5-Port Gigabit Industrial PoE Ethernet Switch
Ethernet Ports 5 × 10/100/1000Base-T RJ45 5 × 10/100/1000Base-T RJ45 PoE
Network Standards IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X; IEEE 802.3x Flow Control

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at;
Power Input DC 12–52V DC 48–57V
PoE Standard — IEEE 802.3af/at
PoE Ports — Ports 1–5
PoE Output Power — Up to 15.4W per port (IEEE 802.3af); up to 30W per port (IEEE 802.3at)
PoE Detection — Automatic IEEE 802.3af/at detection
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 5%–95% RH, non-condensing
EMI FCC Part 15 Subpart B Class A; EN 55022 Class A
EMS – ESD IEC/EN 61000-4-2: ±8kV contact, ±12kV air
EMS – RS IEC/EN 61000-4-3: 10V/m (80–1000MHz)
EMS – EFT IEC/EN 61000-4-4: ±2kV CM / ±1kV DM
EMS – Surge IEC/EN 61000-4-5: ±2kV CM / ±1kV DM
EMS – RF Conducted Immunity IEC/EN 61000-4-6: 3V (10kHz–150kHz), 10V (150kHz–80MHz)
Common Mode Immunity IEC/EN 61000-4-16: 30V continuous, 300V for 1s
Power Surge Protection 5000A (8/20 μs)
Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
Housing Metal housing, IP40

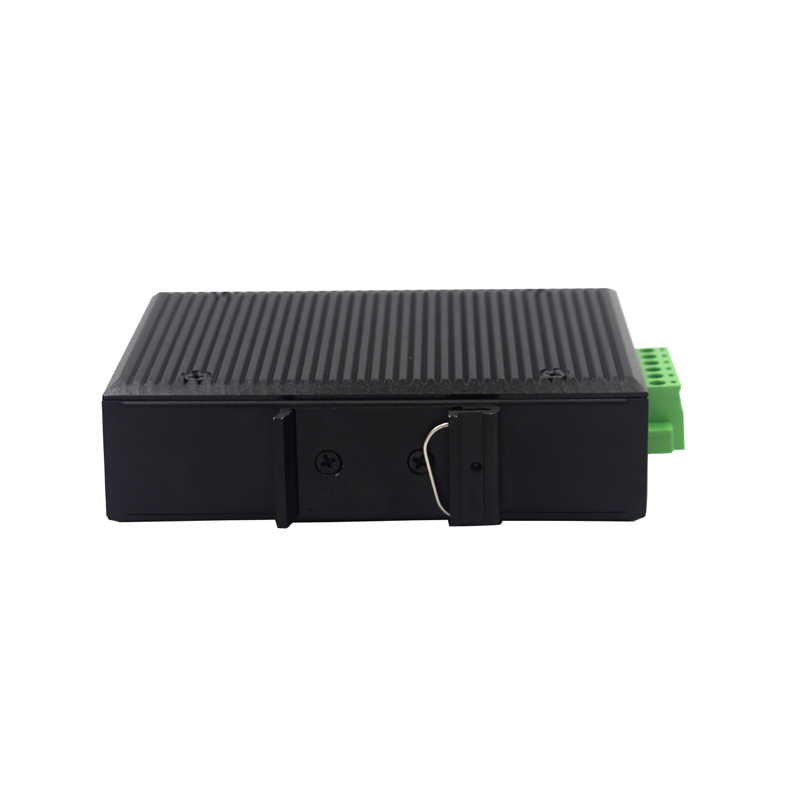

Installation DIN-rail mounting; wall mounting
Cooling Fanless, natural convection
LED Indicators PWR; Ethernet Link/ACT PWR; Ethernet Link/ACT; PoE
Certifications CE, FCC, RoHS, ISO 9001
