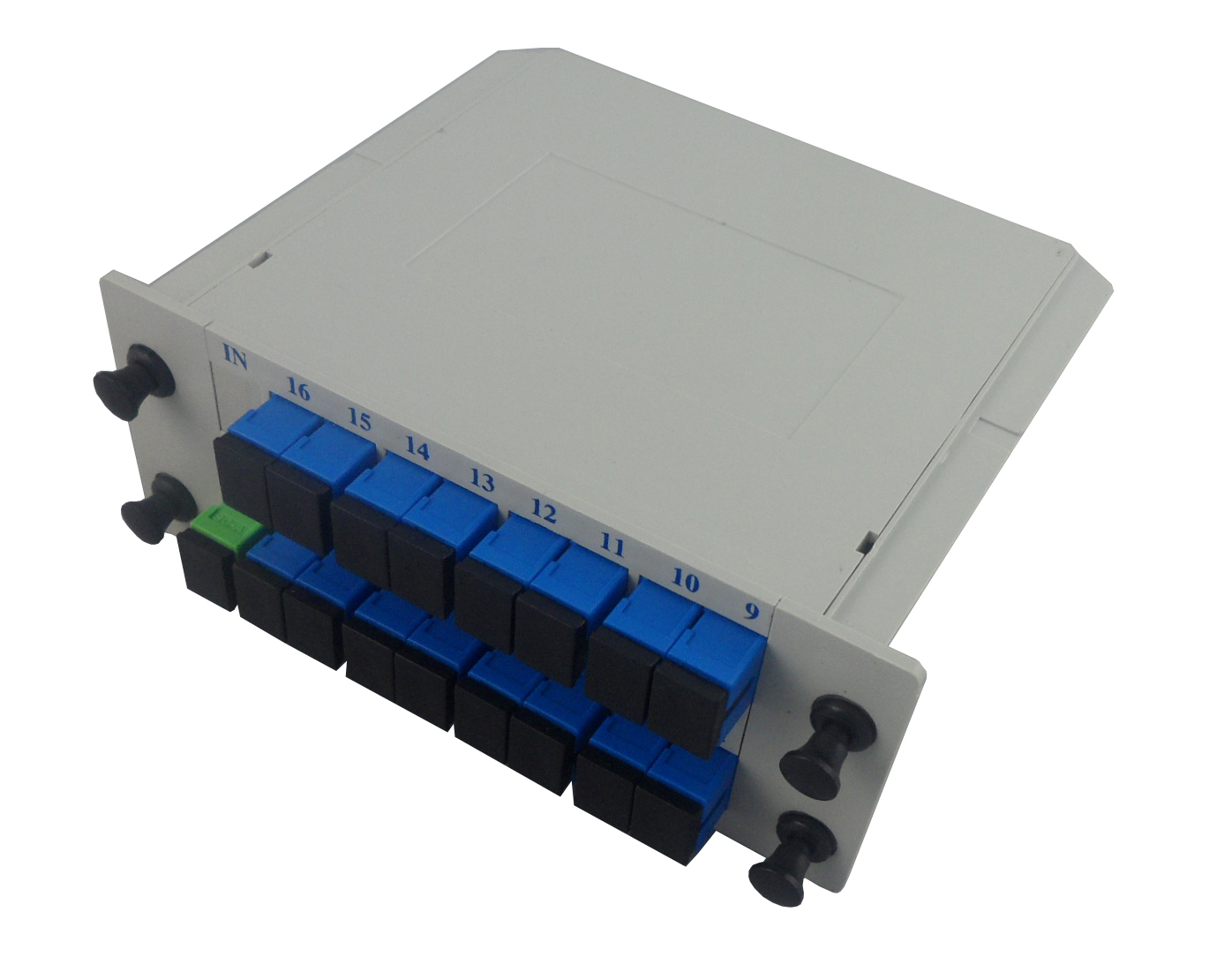

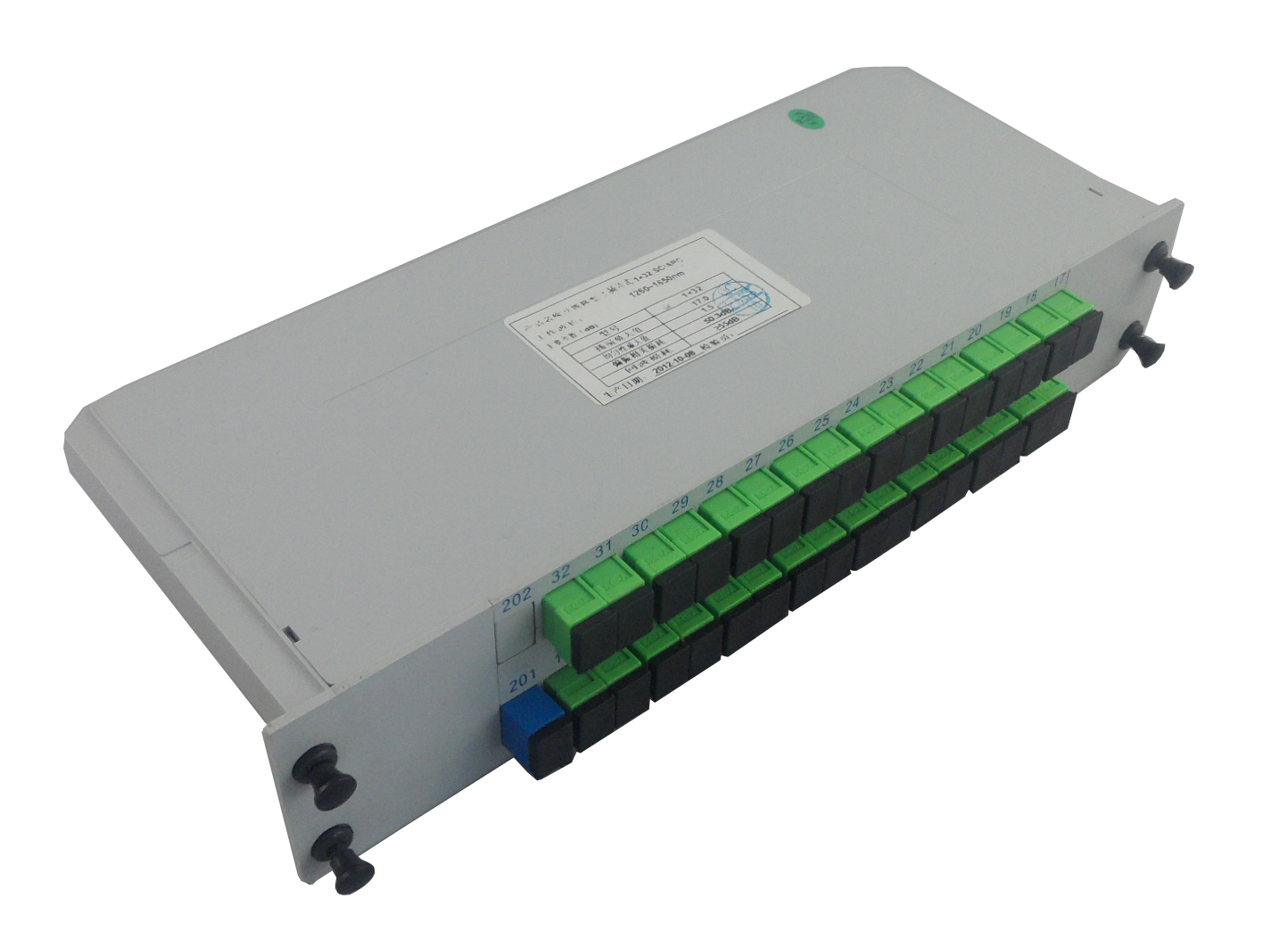

Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Card Type PLC Splitter Series
Specifications
Operating Wavelength (NM) :
1260~1650
Device Packaging Size (mm) (L×W×H) :
60×12×4
Temperature Stability (-40~85°C) (dB) :
0.5
Loss Uniformity (dB) :
2.0
Wavelength Dependent Loss (dB) :
0.5
Macro Model Size (mm) (L×W×H) :
100×40×6
Return Loss (dB) :
55/50
Storage Temperature (°C ) :
-40-85
Polarization Dependent Loss (dB) :
0.35
Operating Temperature (°C ) :
-40~85
Cassette Module Size (mm) (L×W×H) :
140×115×18
Directivity (dB) :
55
Type of Connector :
Customer specified
Type :
1x64
Fiber Type :
G657A or customer specified
Insertion Loss (dB) :
20.5/21.0
Description

Planar Lightwave Circuit (PLC) Splitter

High-performance PLC splitters designed for efficient fiber optic signal distribution in PON networks. Engineered for reliability and versatility, these splitters support up to 64 output ports.

  • Compact Design: Perfect for splice trays, joint closures, and optical cabinets.
  • High Scalability: Available in configurations from 1x2 up to 1x64 ports.
  • Wide Wavelength Range: Operates efficiently across 1260~1650nm.
  • Robust Performance: Exceptional temperature stability and low insertion loss.

Product Attributes

Fiber Type: G657A or customer specified
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 85°C
Connector Type: Customer specified

Technical Specifications

Type Insertion Loss (dB) Return Loss (dB) Directivity (dB)
1x2 3.8/4.0 55/50 55
1x4 7.1/7.3 55/50 55
1x8 10.2/10.5 55/50 55
1x16 13.5/13.7 55/50 55
1x32 16.5/16.9 55/50 55
1x64 20.5/21.0 55/50 55
