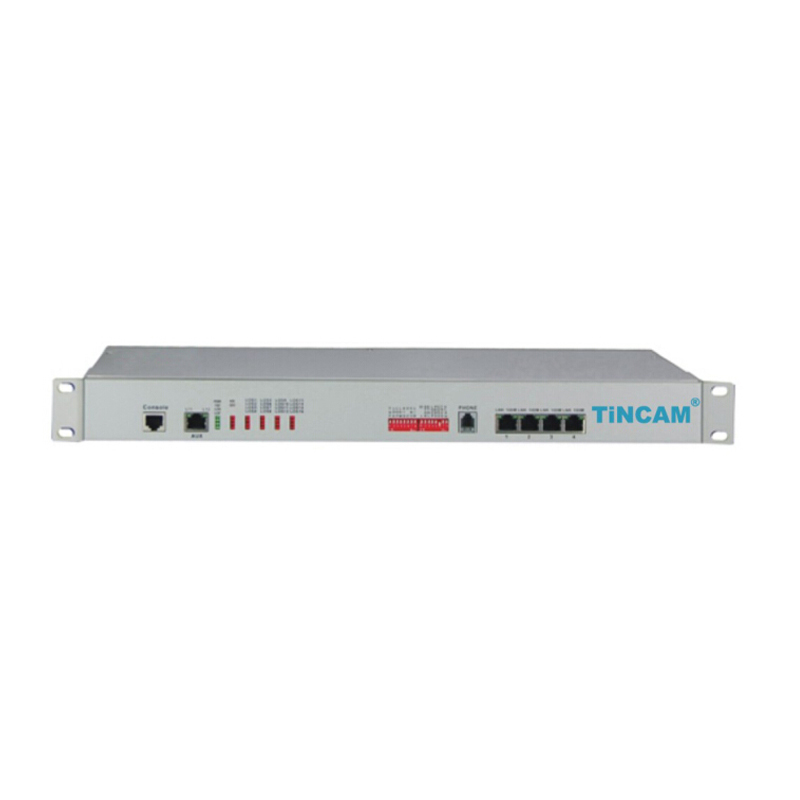

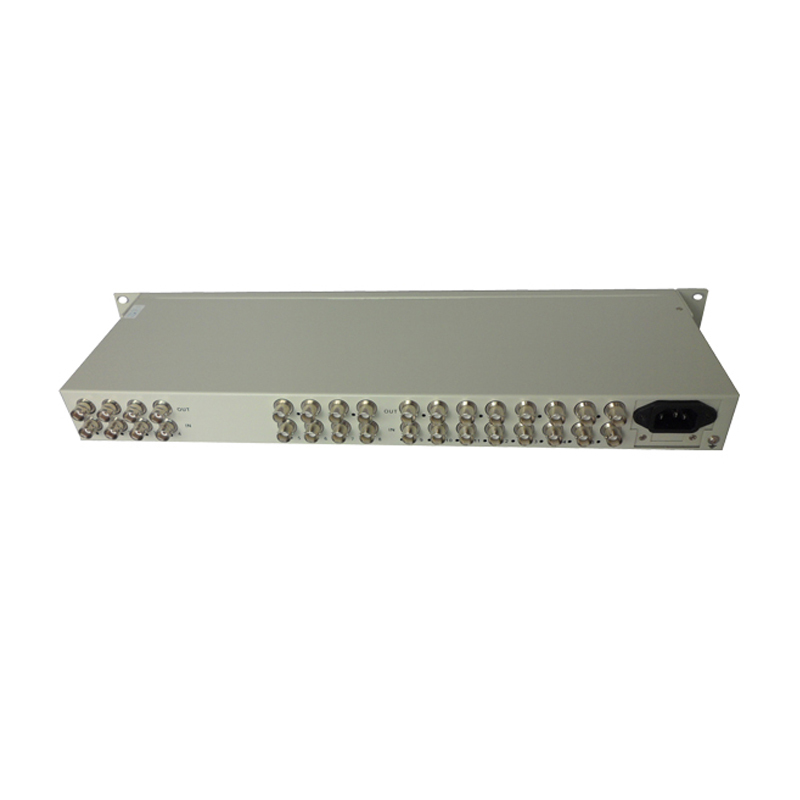

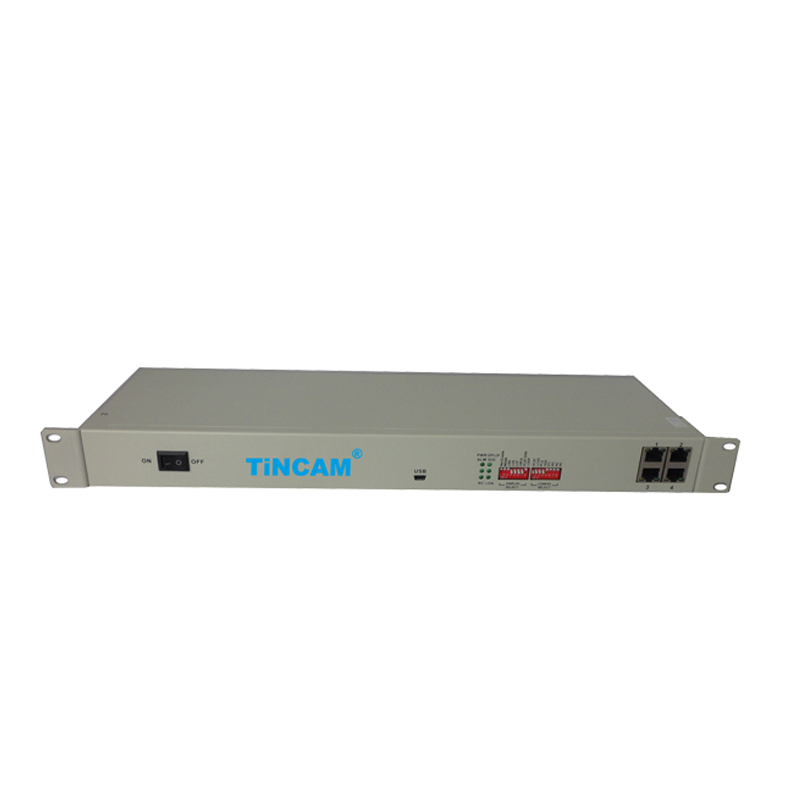

16E1-ETH Protocol Converter
16E1-ETH Protocol Converter
16E1-ETH Protocol Converter
16E1-ETH Protocol Converter
16E1-ETH Protocol Converter
16E1-ETH Protocol Converter
Specifications
Number of interfaces :
Provide 16 E1 interface
Port loopback :
Provides local and remote loopback testing
Power consumption :
＜5W
Forwarding Index :
Each E1 Ethernet packet forwarding the ultimate rate of 1920Kbps; 16 E1 full load, the ultimate forwarding rate of 1920*16 = 30720Kbps
CRC check :
Support CRC4 calibration adaptive
Number of interface :
1-RJ45 port
Working temperature :
0°C ~ 45°C
Transmission mode :
Only provide E1 framing mode
Network management capabilities :
Can support the network management; can manage the local / remote; card device can be placed in multi-slot chassis to use, to achieve central office, remote network management; desktop without CONSOLE, SNMP interface; can be controlled by dialing switch, s
Internal power supply :
430mm*138mm*44mm(Rack-mount)
Interface Impedance :
75Ω (unbalance), 120Ω (balance)
Support mixed insert :
Modular protocol converter can be inserted into 4U chassis, and can be mixed with modular transceiver and optical transceiver products.
Power supply :
AC110~240V DC36V~-72V
Clock Mode :
Two clock modes are provided: master clock (internal clock), slave clock (E1 receive recovery clock)
Category :
Working environment
Working Humidity :
5%~90% (non condensing)
Storage temperature :
-25°C ~ 70°C
Support frame length :
Maximum Ethernet data frame length support 1536Byte
Protocol :
Support automatic cross network cable recognition ability; Support IEEE 802.3x flow control in full duplex mode; Support Back pressure flow control when half-duplex mode; Support 802.3 (Ethernet protocol), 802.3u (Fast Ethernet protocol); It can transparen
Storage Humidity :
5%~90% (non condensing)
Description

TBC-CT6016 Series Protocol Converter

The TBC-CT6016 series protocol converter utilizes advanced reverse multiplexing technology to bundle multiple E1 circuits for high-efficiency 10M/100M Ethernet data transmission. Designed for flexibility, it supports 1-16 E1 channel configurations with automatic detection and delay compensation.

Key Benefits & Applications

  • Flexible Connectivity: Supports 1-16 E1 channels with automatic E1 selection.
  • High Performance: Ideal for LAN interconnection and broadband access.
  • Versatile Use Cases: Suitable for video on demand, remote monitoring, and central office interconnection.
  • Robust Design: Supports transparent transmission of IEEE 802.1d Spanning Tree and 802.1q VLAN packets.

Product Attributes

Brand: TBC Series
Technology: Reverse Multiplexing
Configuration: 1-16 E1 Channels
Power Consumption: < 5W

Technical Specifications

Category Details
Ethernet Interface 1-RJ45 port, max frame length 1536Byte, IEEE 802.3/802.3u compliant
E1 Interface 16 E1 interfaces, 75Ω/120Ω impedance, 30720Kbps max forwarding rate
Network Management Local/Remote management, SNMP support, CRC4 calibration
Power Supply AC110~240V / DC36V~-72V
Dimensions 430mm x 138mm x 44mm (Rack-mount)
Working Environment 0°C ~ 45°C, 5%~90% Humidity (non-condensing)
