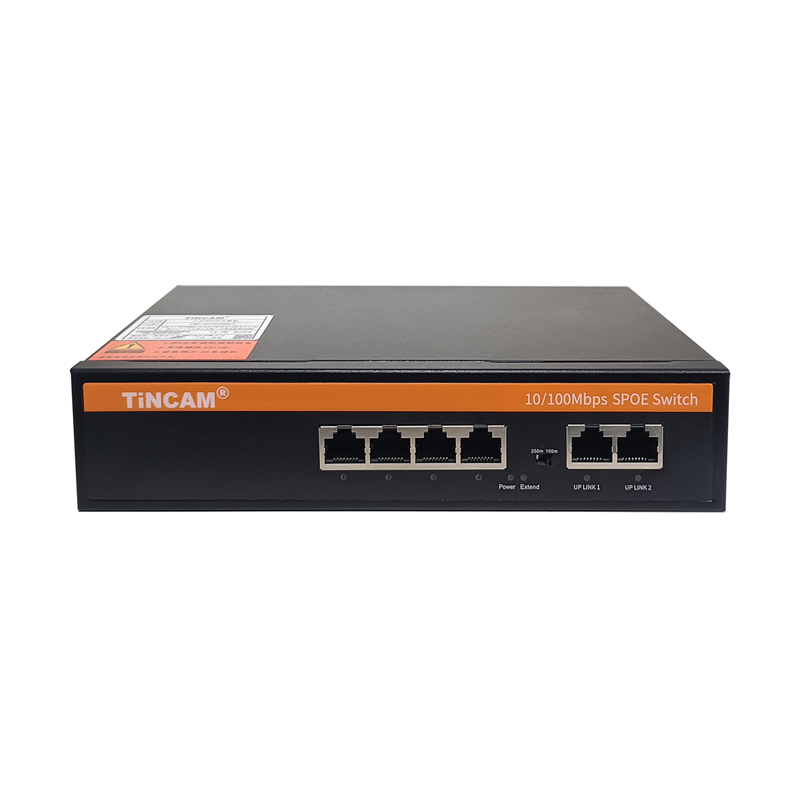

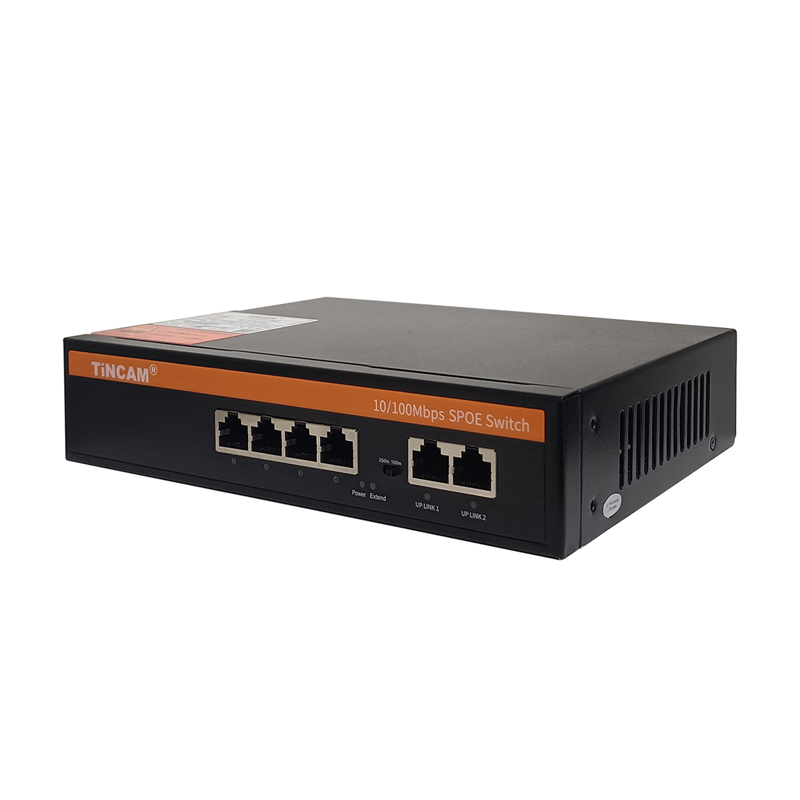

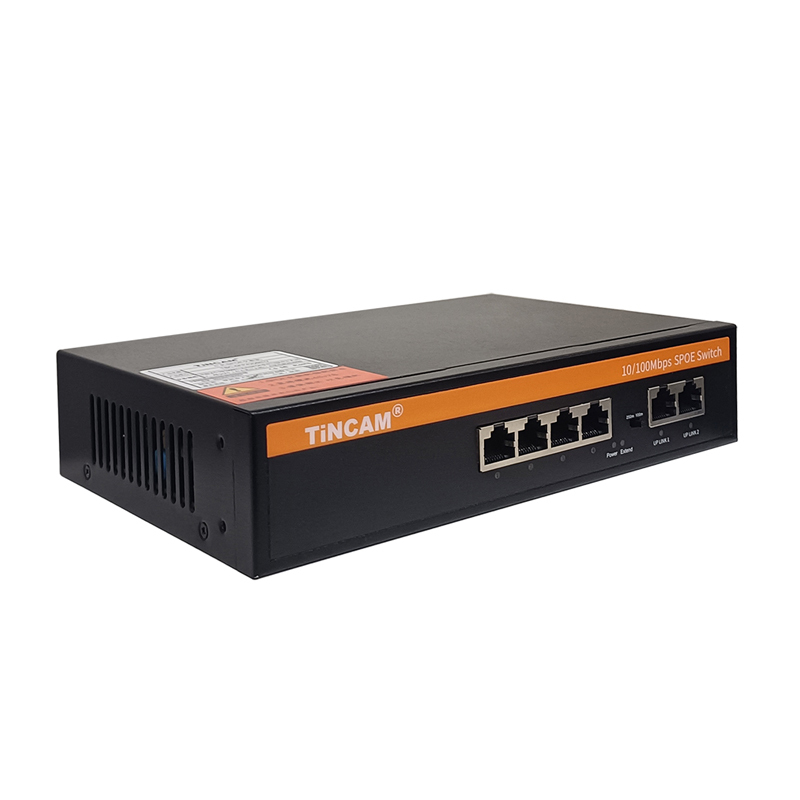

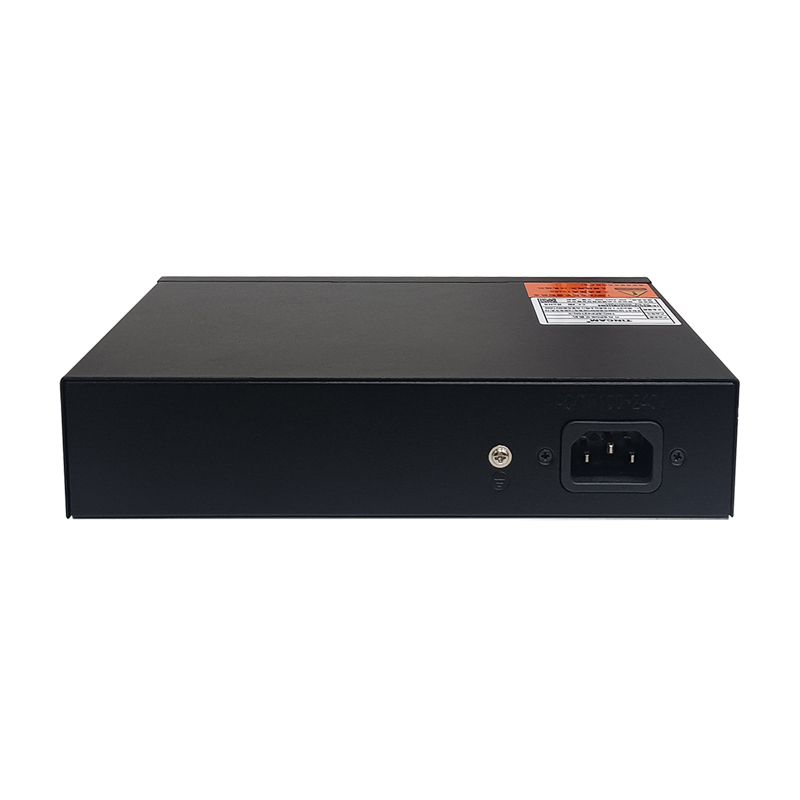

6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
6 Port 10/100Mbps Passive PoE Switch with 4 Passive PoE Ports 2 Uplink Ports 48W 15V 250m Long Range TBC-FP4106N
Specifications
Transmission rate :
10/100Mbps
Model Number :
TBC-FP4106N
Power Supply Pin :
4/5 (+), 7/8 (-)
Communication mode :
Full-Duplex & Half-Duplex
Function :
POE,VLAN Support
MOQ :
1
Packaging Details :
Package:Carton Box
Switch capacity :
1.2Gbps
Dimensions :
202*140*45mm (L*W*H)
Payment Terms :
T/T
Weight :
Net: < 0.4 kg; Gross: < 0.6 kg
Total PoE Budget :
48W
Operating temperature :
-20 ° C to + 65 °C;
Warranty :
1 Year,lifetime maintenance
Supply Ability :
300,000 Pieces per Year
PoE Transmission Distancee :
100m (Standard Mode); 250m (Extend Mode @ 10Mbps)
Power Supply :
Input: AC 100-240V, 50-60Hz; Output: DC 15V 3.2A (Internal)
Delivery Time :
5-8 work day
PoE Ports :
4*10/100Base-TX Passive PoE ports (Data/Power)
Certification :
CE,FCC,ROHS
Uplink Ports :
2*10/100Base-TX Uplink RJ45 ports (Data)
Place of Origin :
China
Products status :
Stock
Brand Name :
TiNCAM
Description

Product Overview

TBC-FP4106N is a 6-port Passive PoE switch featuring 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink ports. Ports 1–4 support non-standard 15V Passive PoE output with intelligent power protection. The maximum PoE output per port is 30W, with a total PoE power budget of 48W. This switch is designed for compatible 15V Passive PoE devices such as wireless bridges and intercom systems, or for use with a compatible splitter to power non-PoE devices over Ethernet. For proper power delivery, straight-through RJ45 cabling is required. Ideal for smart buildings, security systems, and low-voltage network deployments.

Plug-and-play operation with no configuration required. Note: Straight-through RJ45 cables are required for proper Passive PoE power delivery.

Key Features

◆ High-Density Port Configuration with Flexible Uplink
• Equipped with 4 × 10/100Mbps RJ45 Passive PoE ports, 2 × 10/100Mbps RJ45 uplink ports, for flexible network expansion and cascading.
• All ports support non-blocking wire-speed forwarding for smooth and efficient data transmission.
• Supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, including full-duplex flow control and half-duplex backpressure control.
◆ 15V Passive PoE Power Supply
• 4 RJ45 ports support 15V Passive PoE output, ideal for powering devices such as building intercom systems, security monitoring equipment, and wireless bridges.
• Provides a maximum total PoE power budget of 48W, with up to 30W per port.
• Compatible with Passive PoE powered devices or can be used with a PoE splitter to supply power to non-PoE devices such as IP cameras.
• Dual 100Mbps uplink ports support cascading or connection to aggregation switches for simplified network deployment.
◆ Easy Deployment and Operation
• Plug and play, with no configuration required for fast and easy installation.
• Built-in Extend Mode switch; when enabled, ports 1–4 support 10Mbps transmission up to 250 meters.
• LED indicators provide real-time monitoring of power status and port activity.
◆ Stable and Reliable Design
• Features low power consumption, fanless silent operation, and a durable metal enclosure for enhanced reliability.
• Built-in high-efficiency power supply with an optimized internal structure ensures stable long-term PoE output.
• Complies with ISO 9001, CE, FCC, and RoHS standards for safety and quality assurance.
