Product Overview

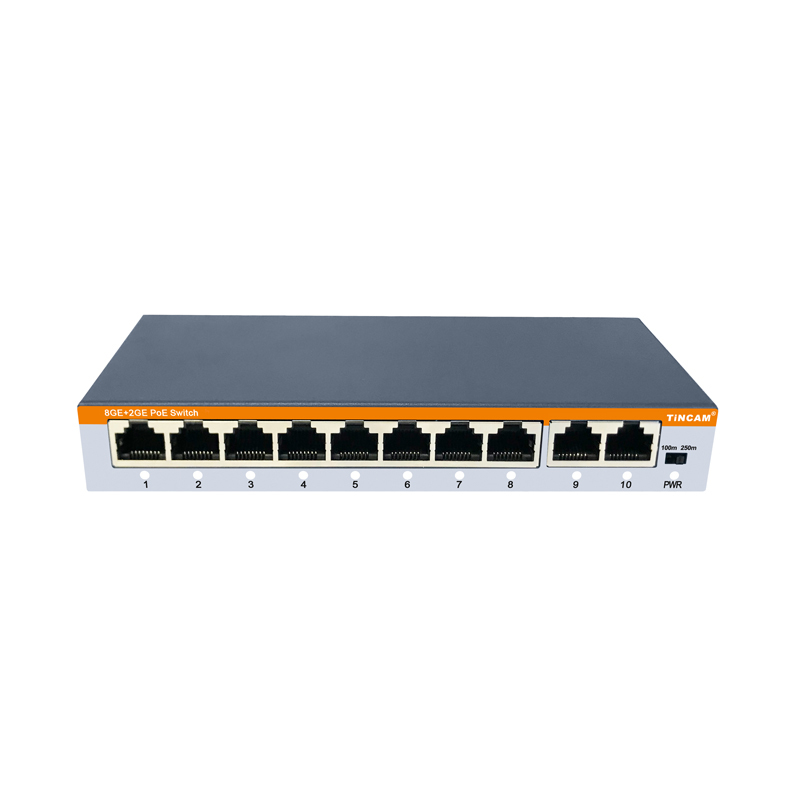

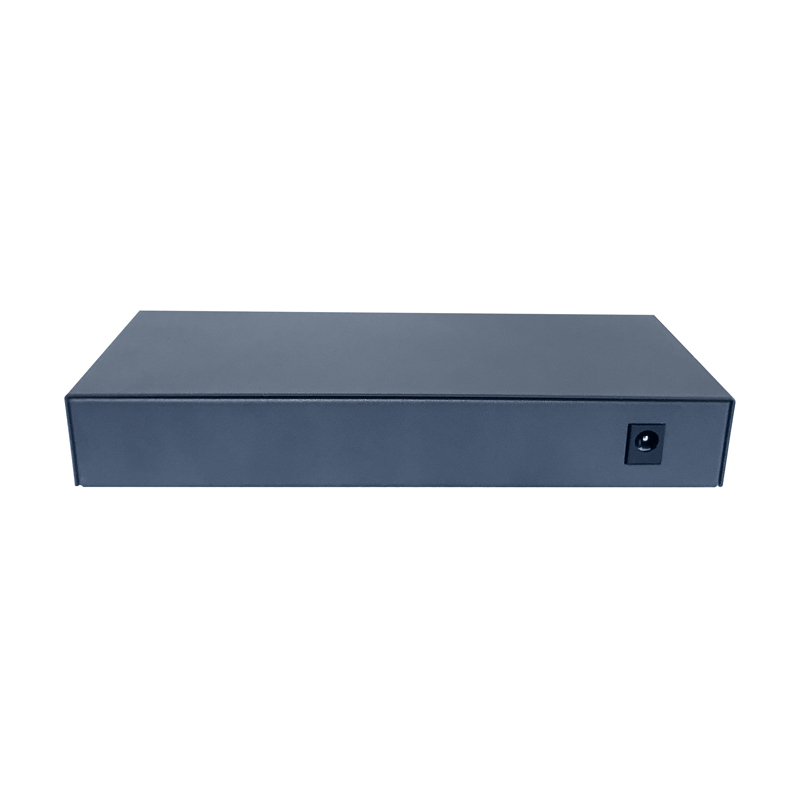

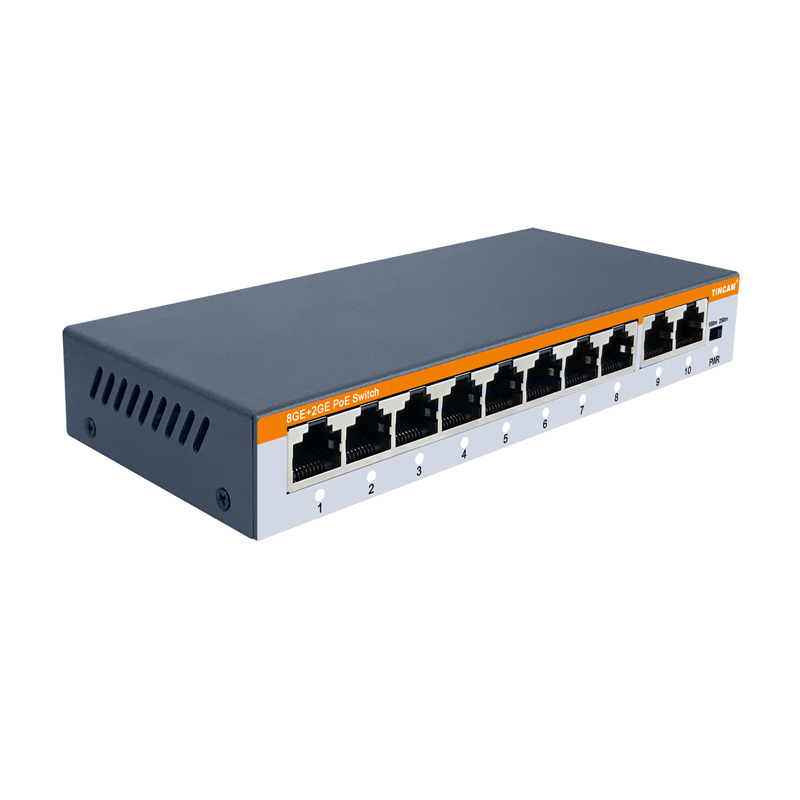

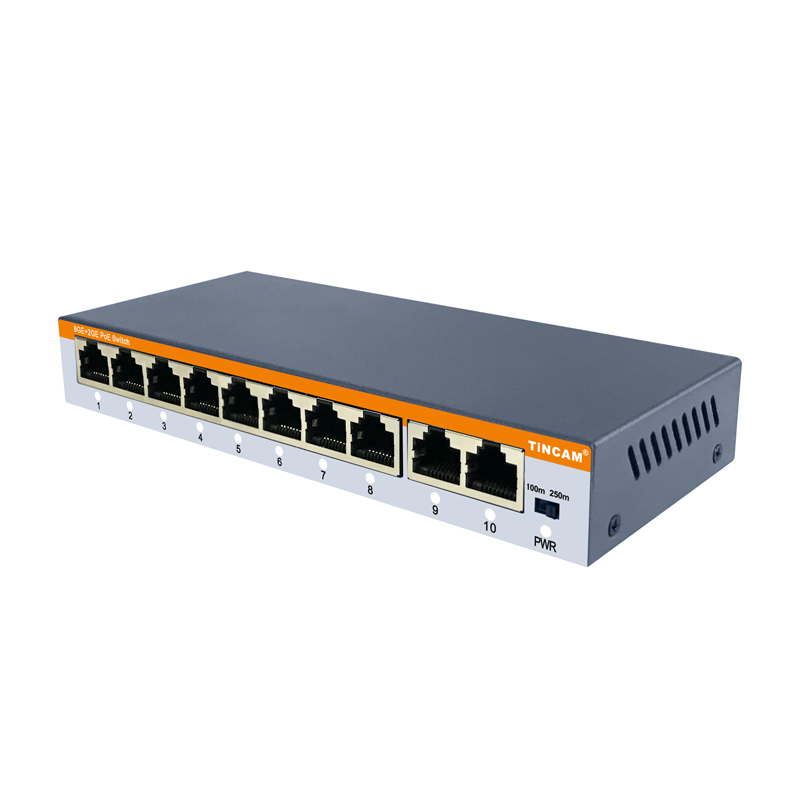

The TBC-PS5110E is a 10-Port Gigabit Unmanaged PoE Switch equipped with 8 × 10/100/1000Mbps auto-negotiation PoE RJ45 ports and 2 × 10/100/1000Mbps Gigabit uplink RJ45 ports. It complies with the IEEE 802.3af/at PoE standards, delivering up to 30W per PoE port with a total 120W PoE power budget.Designed with a high-performance Gigabit switching architecture, the switch provides stable wire-speed data forwarding for IP surveillance, wireless access points, VoIP systems, and small to medium-sized business networks. Its external power supply design ensures easy installation, convenient maintenance, and reliable long-term operation.

Key Features

• 8 × 10/100/1000Mbps auto-negotiation PoE RJ45 ports and 2 × 10/100/1000Mbps Gigabit uplink RJ45 ports.

• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards.

• Supports IEEE 802.3af/at PoE standards and is compatible with standard Powered Devices (PDs).

• Maximum PoE output of 30W per port with a total PoE power budget of 120W.

• Store-and-Forward swsitching architecture for stable data transmission.

• Supports Auto MDI/MDIX on all RJ45 ports.

• Supports IEEE 802.3x Flow Control for full-duplex mode and Back Pressure Flow Control for half-duplex mode.

• Supports automatic MAC address learning, updating, and aging.

• Wire-speed non-blocking forwarding for efficient data transmission.

• Fanless design for silent and reliable operation.

• Plug and play with no configuration required.

• Supports 100m / 250m Extend Mode. When 250m Extend Mode is enabled, PoE ports 1–8 support data transmission up to 250 meters at 10Mbps, while VLAN Isolation is activated simultaneously. The switch must be restarted after changing the mode switch for the new settings to take effect.
