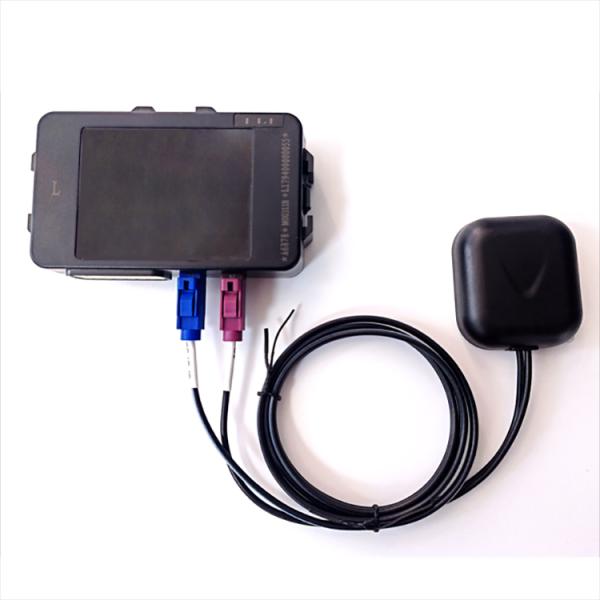

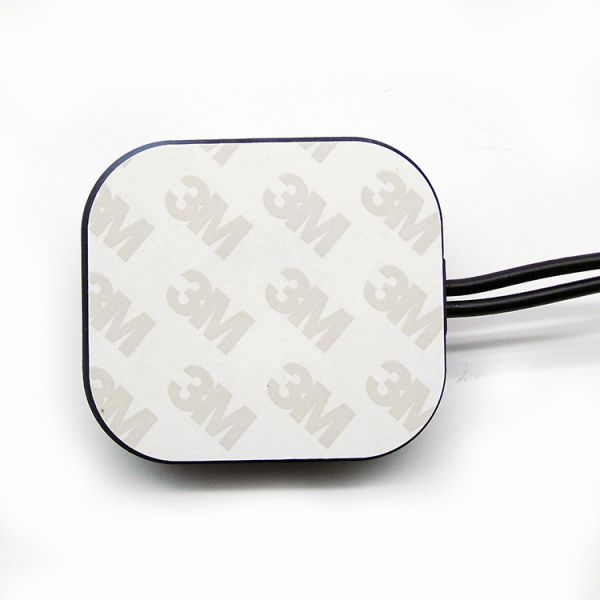

Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Specifications
Supply Ability :
400000pcs per month
Brand Name :
RIDA Antennaer
Material :
PC
Impedance :
50Ω
Service :
OEM/ODM
Delivery Time :
10-15days
Place of Origin :
Guangdong, China
Type :
GPS/GNSS Antenna
Frequency :
GPS GLONASS BEIDOU 4G 5G WIFI
Connectivity :
as requirement
Cable Length :
3M(Customizable)
Polarity :
vertical
VSWR :
<1.5
MOQ :
20
Model Number :
RDYLC-1
Packaging Details :
opp bag single pcs
LNA Gain :
28dBi
Certification :
ISO9001/IATF16949
Description
Products Description
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle
Combo Antenna for GNSS High Precision LTE 5G 4G 3G 2G LoRa 433Mhz 868Mhz 915Mhz Phone Signal High for Vehicle

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)

Product Parameters
GNSS specifications

Center Frequency *
1575.42MHz±3 MHz / 1561MHz / 1602MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
LNA Gain(Without cable) *
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
2G/3G/4G/5G specifications

Frequency Range *
600-6000MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
2.4/5.8Ghz WIFI specifications

Frequency Range *
2300-2500/5700-5900MHZ
V.S.W.R
<1.5
Band Width
±100 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
