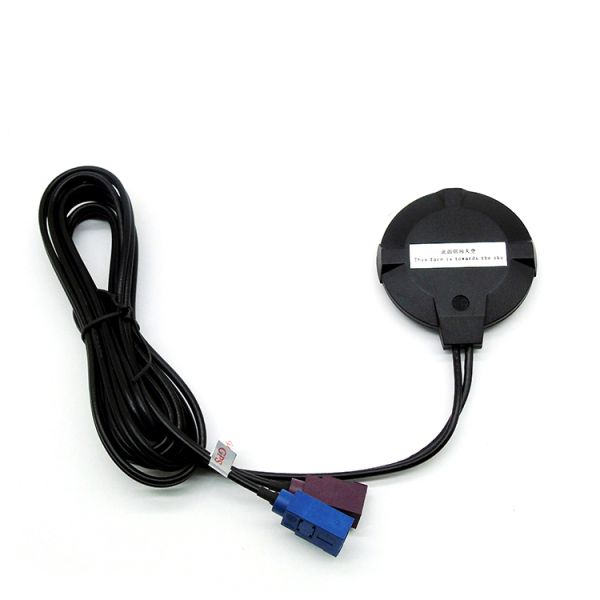

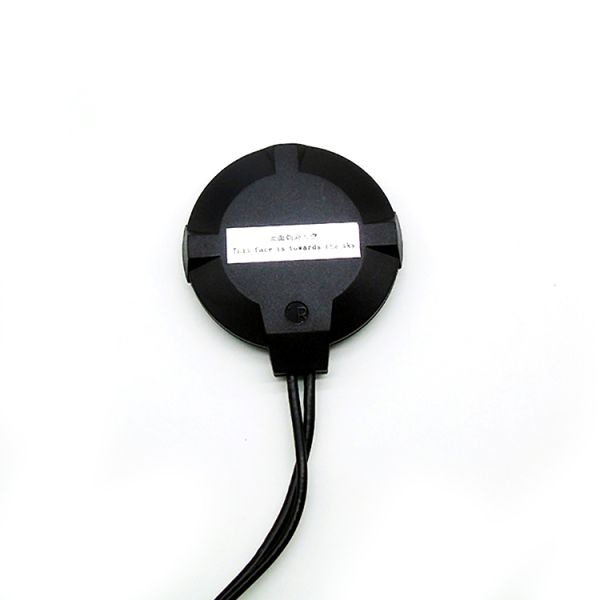

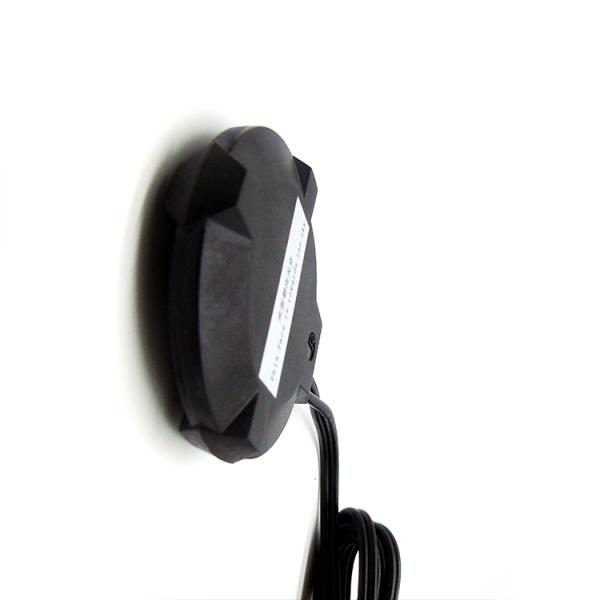

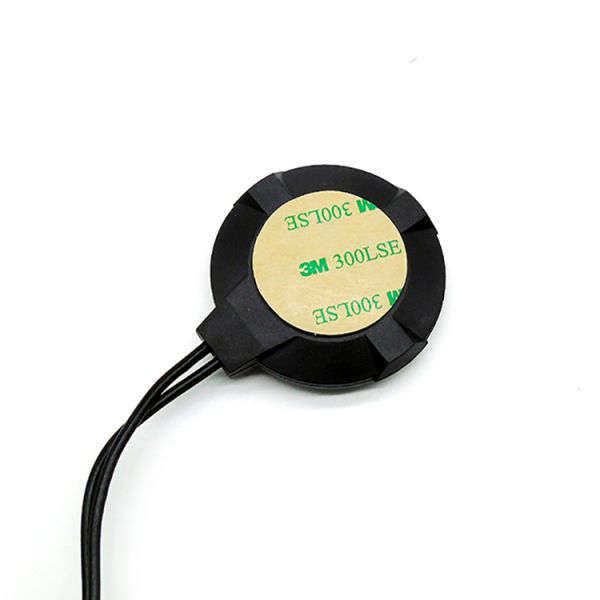

Customized Adhesive Mount Combo 698-2700 MHz Fakra External Mino Mobile/GNSS/4G/5G/WI-FI Roof Antenna 28dBi Gain

Specifications

Model Number :

RDYLC-1

Brand Name :

RIDA Antennaer

Supply Ability :

400000pcs per month

Connectivity :

Fakra

Installment :

adhesive

Delivery Time :

10-15days

Material :

Applied technology :

GPS GLONASS BEIDOU 4G 5G WIFI

Cable Length :

3M(Customizable)

VSWR :

<1.5

Frequency :

698-2700 MHz 1561/1575.42/1602

LNA Gain :

28dBi

Antenna size :

60*13mm

Impedance :

50Ω

Service :

OEM/ODM

Packaging Details :

opp bag single pcs

Polarity :

vertical

Connector :

MMCX/Customized

MOQ :

500

Place of Origin :

Guangdong, China

Certification :

ISO9001/IATF16949

Type :

GPS/GNSS Antenna

Description

Products Description

Customized Adhesive Mount Combo 698-2700 MHz Fakra External Mino Mobile/GNSS/4G/5G/WI-FI Roof Antenna 28dBi Gain <1.5 VSWR

Product Parameters

GNSS specifications
Center Frequency *	1575.42MHz±3 MHz / 1561MHz / 1602MHz
V.S.W.R	<1.5
Band Width	±5 MHz
Attenuation	fo±100MHz>30dB
Impendence	50 Ω
Peak Gain	>3dBic, Based on 7×7cm ground plane
Gain Coverage	>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization	Right-handed Circular(RHCP)
LNA Gain(Without cable) *	28dBi
Noise Figure	1.5dB
V.S.W.R	<1.65
DC Voltage	2.7V-5.0V±0.5V
DC current	15mA Max(5V DC)
2G/3G/4G/5G specifications
Frequency Range *	600-6000MHz
V.S.W.R	<1.5
Band Width	±90/280 MHz
Gain *	3.0dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50 W
Impendence	50 Ω
2.4/5.8Ghz WIFI specifications
Frequency Range *	2300-2500/5700-5900MHZ
V.S.W.R	<1.5
Band Width	±100 MHz
Gain *	3.0dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50 W
Impendence	50 Ω
