Specifications
Connector :
Fakra or Customized
Polarization :
Linear
VSWR :
<1.5
Brand Name :
RIDA Antennaer
Connectivity :
as requirement
Polarity :
vertical
Frequency :
698-960MHz/1710-2696MHz
MOQ :
20
Impedance :
50Ω
Connector Type :
as requirement
Type :
GPS/GNSS Antenna
Place of Origin :
Guangdong, China
Service :
OEM/ODM
Model Number :
RDYLC-1
Material :
PC
Input VSW :
2.0
Cable Length :
RG174 x2 L=1.0M
Price :
$3.50-4.50
Gain :
28±3dB
Description
No Custom Fees 3in1 Combination Antenna
Products Description

Overview

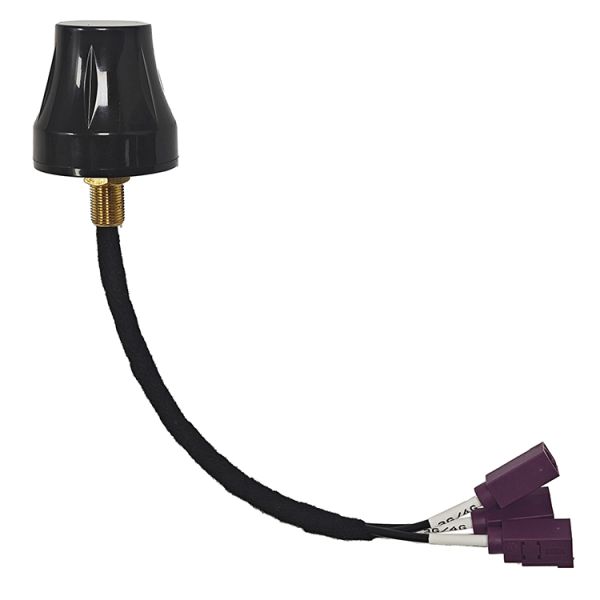

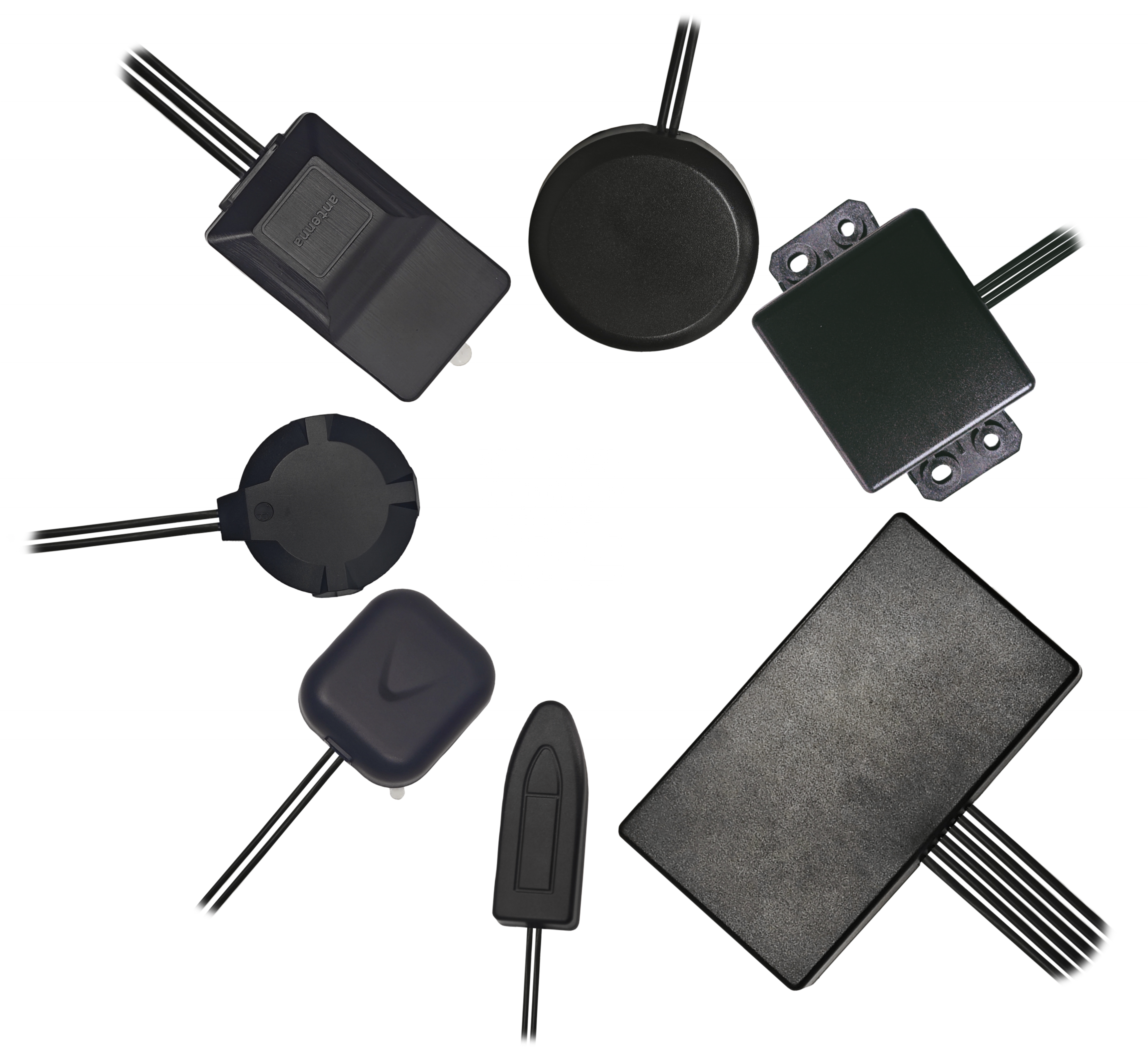

This is a GPS, 4G, and WIFI all-in-one combination antenna designed for intelligent telematics vehicle equipment. The antenna's combination function can be customized based on actual needs, enabling the equipment to provide data acquisition, remote control, security services, and other functionalities.
Options
-Antenna performance : -Connector : 1. GNSS single/multi-band 1. SMA male/female 2. 3G/4G(MIMO)/5G/WIFI/BT 2. Fakra(purple/yellow/green/blue/others) 3. 433/868/915Mhz 3. Others -Wire length : -Mounting Methods : 1. 3m (default) 1. Adhesive (default) 2. Others 2. Magnetic
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna

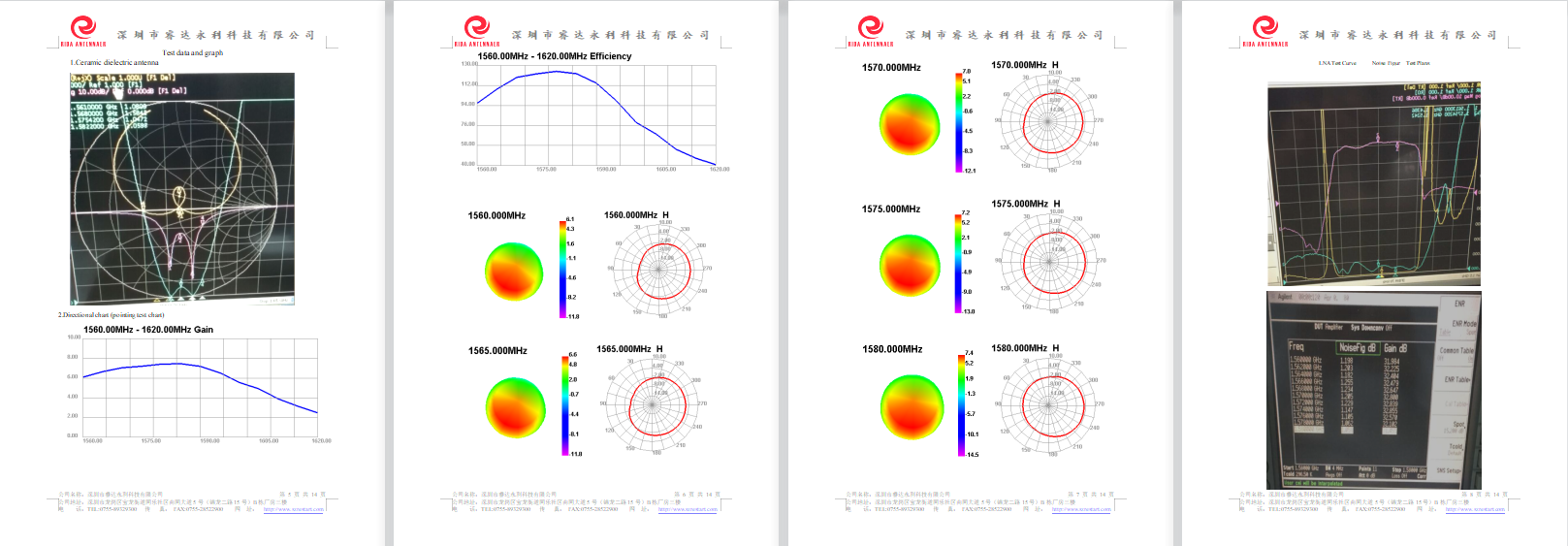

We can provide detailed test reports to ensure antenna performance. S11 reflection parameters, pointing test charts, LNA test curves, LNA gain, noise plots, etc.
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna

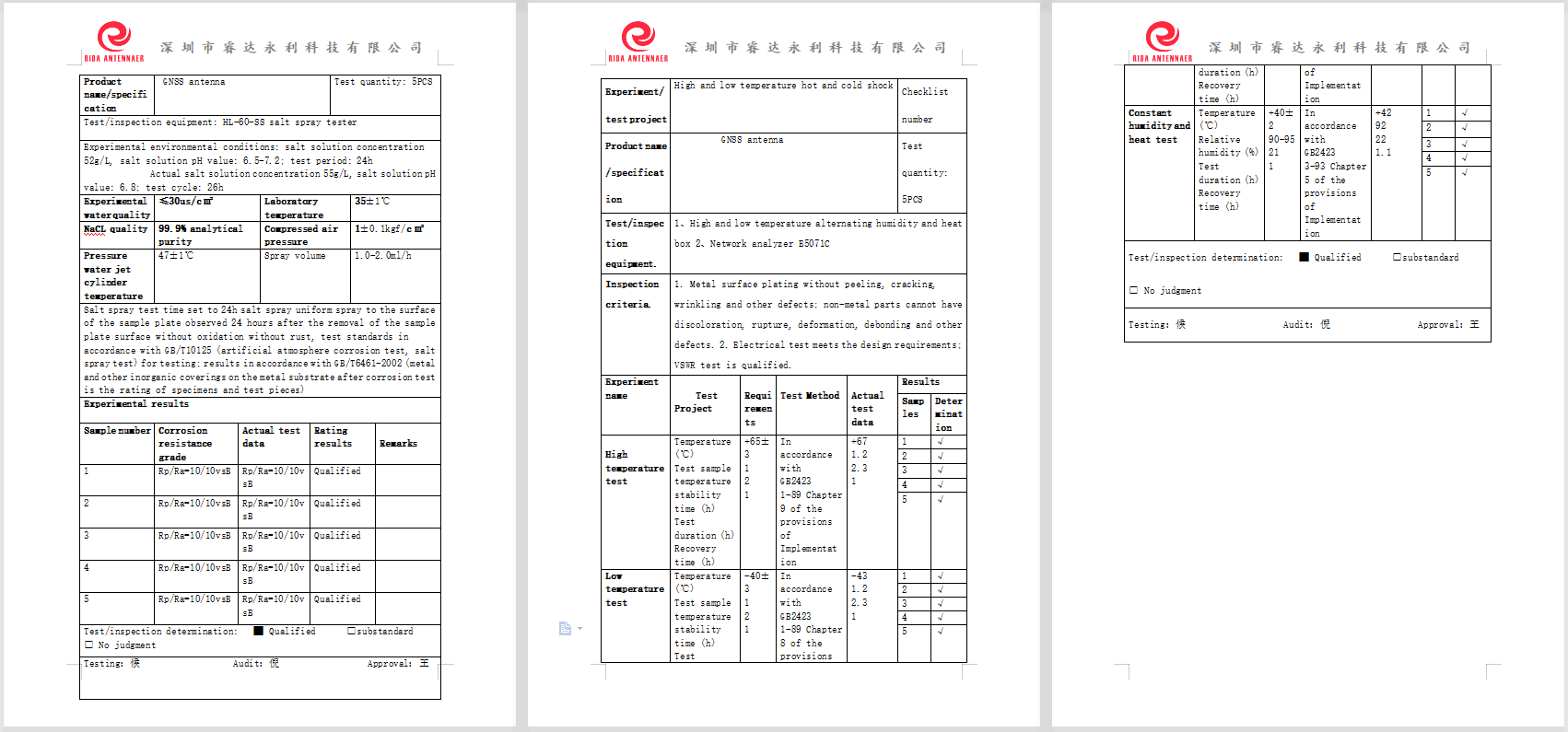

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)

Product Parameters
GPS / LTE / WIFI 3 IN 1 ANTENNA
Center Frequency
1575.42MHz±3 MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
GPS LNA Specifications
LNA Gain(Without cable)
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
LTE Specifications
Frequency Range
698-2700MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
WIFI specifications
Frequency Range
2300-2500MHZ/5700-5900MHZ
V.S.W.R
1.5:1
Band Width
±100 MHz
Gain
2-3dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Company Profile
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Shenzhen Ruida Yongli Technology Co., Ltd.（RIDA Antennaer） has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 ㎡.
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Why Choose Us
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
From consultation to after-sales, we have professional antenna engineers to solve your problems throughout the whole process. And we have a one year warranty and can repair for the whole life.
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.
We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Payment & Shipping & Packaging & Warehouse
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
More Product
Combo Antenna Certificate Customized 4G/LTE & GPS Combo 698-960MHz/1710-2696MHz RG174*2 Active Antenna
FAQ
Q1: Can I get one sample?
A: Yes, sample is for free.

Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.

Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.

Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days

Q5: Are all your antennas in stock? A: No, our antennas are custom made to order.

Q6: How long is your after-sales service?
A: We provide one year quality warranty.
