Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Specifications
Packaging Details :
opp bag single pcs
Connectivity :
as requirement
Name :
GNSS Internal Antenna
VSWR :
<1.5
Gain (Passive Gain) * :
≥3dBi
Mounting Method * :
None/Adhesive
Material :
ceramic
Type :
GPS/GNSS Antenna
Brand Name :
RIDA Antennaer
Frequency Range * :
1560-1610MHz (Customizable)
Operation temperature :
- 40 ℃ ~ +85℃
Place of Origin :
Guangdong, China
Delivery Time :
10-15days
Certification :
ISO9001/IATF16949
LNA Gain (Active Gain) * :
28dBi
Cable Length * :
RF1.13 150mm
Polarity :
vertical
Model Number :
RIDACG-X-IE
Noise :
≤1.5
MOQ :
500
Supply Ability :
400000pcs per month
Description
Products Description
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

We are a comprehensive antenna company specializing in both design and production, offering tailored solutions for internal ceramic antennas with various sizes and performance capabilities.
Please feel free to contact us at any time to obtain the most suitable antenna for your needs :)
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

20*6*4/2

Frequency: 1561-1610MHz
Gain: 20±2dBi
V.S.W.R: ≤1.5
Noise: ≤ 2
Operation Voltage: 3.3±10% VDC
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

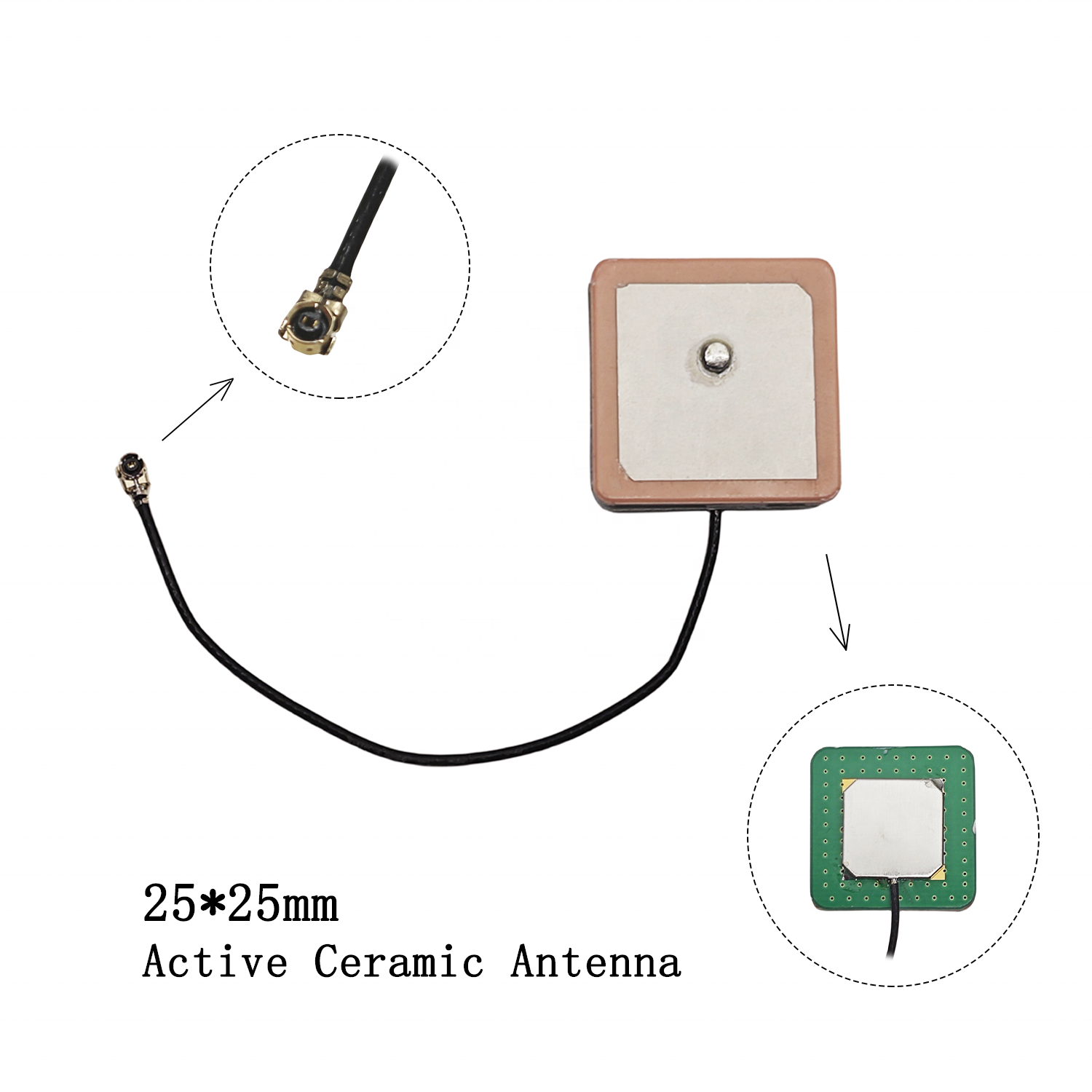

25*25*4/2

Frequency: 1560-1610MHz
Gain: 28±2dBi
V.S.W.R: ≤1.5
Noise: ≤ 1.5
Out-of-band Rejection: fo±100MHz >25dB
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

45*45*2

Frequency: 1560-1602MHz
Gain: 20dBi
V.S.W.R: ≤1.5
Noise: ≤ 1.5
Polarization mode: RHCP
Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi
Product Parameters & Customizable Range
Customizable options are marked with an asterisk ( * )
Frequency range(MHz) *
1575.42MHz,1561MHz,1602MHz/ GNSS Dual-Band / GNSS Tri-Band
Impedance
50Ω
V.S.W.R
≤1.5
LNA Gain *
28 dBi ( 20dbi or 38dbi )
Polarization type
RHCP
Power Capacity
50W
Connector *
as per your requirement
AxialRatio@fc
Subject to product
ReturnLoss[dB]@fc
-15dBmin (Subject to product)
Cable length *
150mm
Material Science
Tinplate
Working Temp(°C)
-40°C~+85°C
