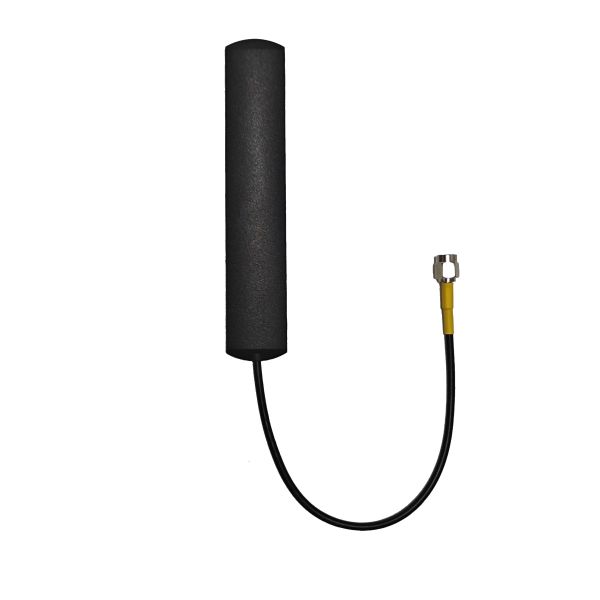

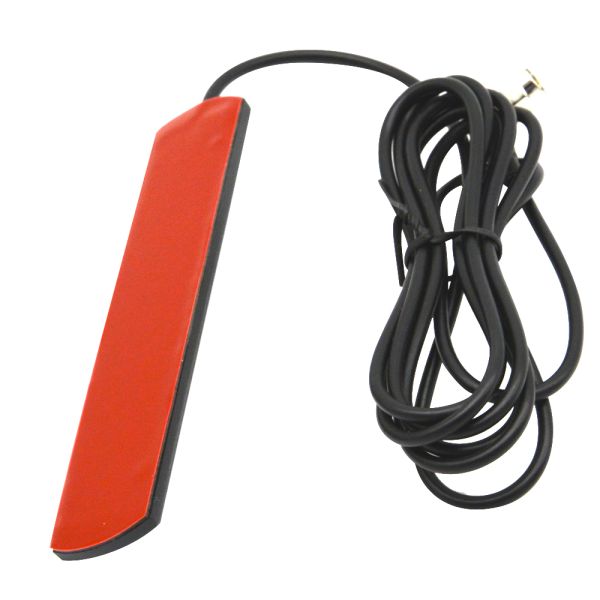

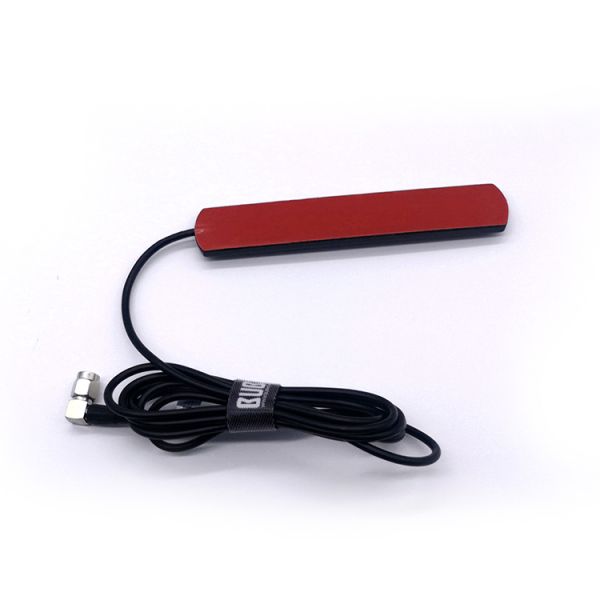

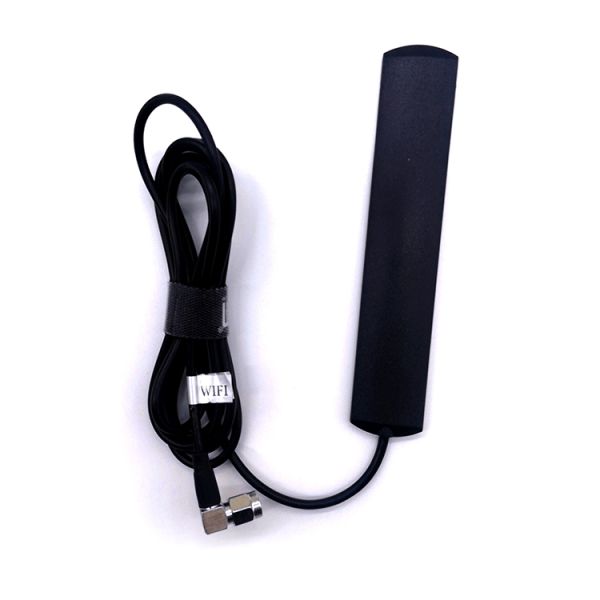

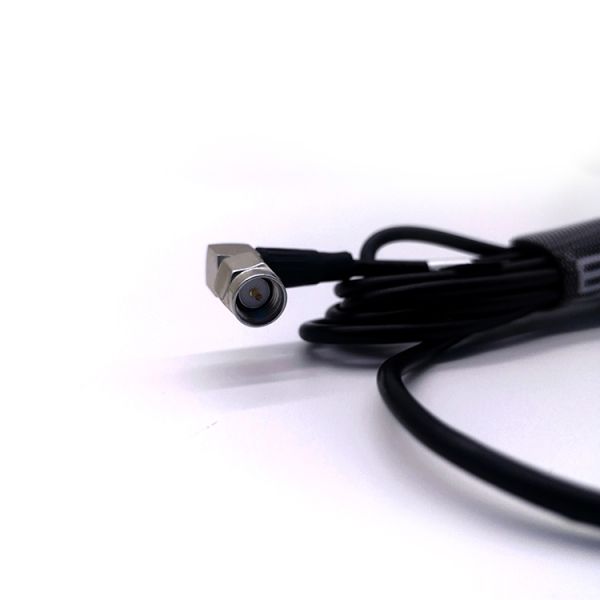

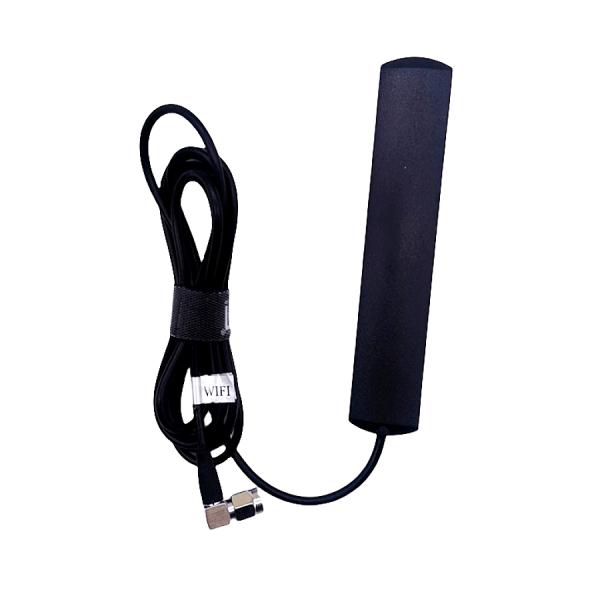

High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
Specifications
Model Number :
RDYL
Price :
$0.60-2
MOQ :
3
Cable :
RG174 L=2M
Size :
160*30*7
Polarization :
Linear
Supply Ability :
400000pcs per month
Packaging Details :
opp bag single pcs
VSWR :
<1.8
Certification :
ISO9001/IATF16949
Antenna Frequency :
698-960MHz/1710-2690MHz
Connector :
customized
Service :
OEM/ODM
Delivery Time :
10-15days
Frequency Range :
698~960MHz / 1710~2170MHz / 5700-5900MHz
Connector Type :
Male
Type :
Communication Antennas
connector type :
SMA-JW1.5
Brand Name :
RIDA Antennaer
Maximum input power :
20(W)
Installation :
Adhesive, Installation
Gain (Zenith) :
3dBi
Place of Origin :
Guangdong, China
Weight -g :
55g
Description
2.4G/5.8G/433MHZ/GSM/868MHZ/4G/3G/5G LTE antena NB-IoT 3M Glue Adhesive Patch Panel Antenna SMA Antennas Customization scope:Antenna Performance,Appearance style, Cable length, Connector type

Products Description
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
High-gain 4G 5G WIFI NB-IoT Zigbee Adhesive T-bar IoT Antenna 698-960MHz/1710-2690MHz -JW1.5 Connector RG174 Cable RIDA
Product Parameters & Customizable Range
Frequency Range (MHz)
698~960 / 1710~2700 /
Gain (Zenith)
3dBi
V.S.W.R
＜1.5
Impendance
50Ω
Cable
RG174
Connector
SMA male or others
Mounting Method
3M Adhesive
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
