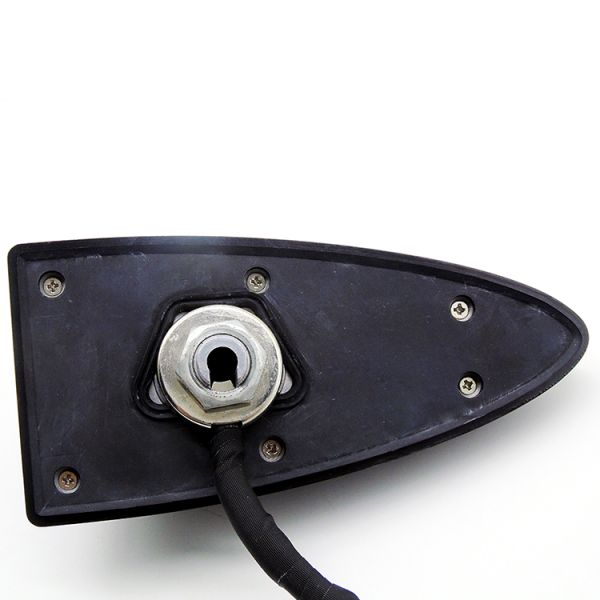

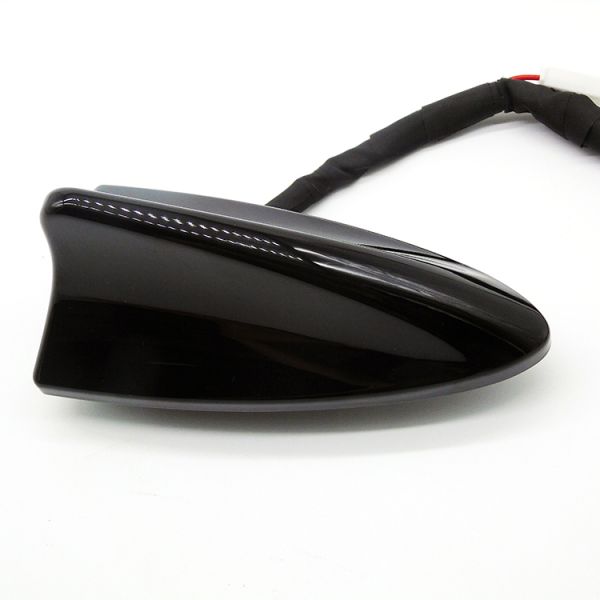

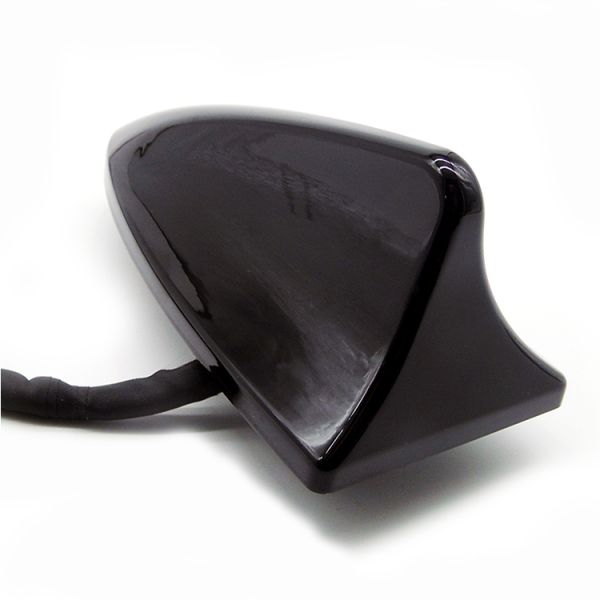

Customizable FM AM GNSS WIFI LTE 4G Antenna Multifunctional Shark Fin Antenna Sharkfin for External Car Antenna

Specifications

Model :

Universal

Car Fitment :

Universal

Car Model :

all car

Connector :

SMA

Year :

Universal

polarization :

RHCP

Gain :

2dBi

Impedance :

50 Ohms

Material :

vertical

MOQ :

Model Number :

RDYLSF-1

Place of Origin :

Guangdong, China

Brand Name :

RIDA Antennaer

Frequence Range :

1575.42±3MHz, 1575.42mhz

Operating Temperature :

-40℃~+85℃

Car Make :

all car

Price :

$13-15

Cable Length :

180mm(7.09in)

Description

GPS GSM FM AM DAB Combination Car Shark Fin Antenna Customization scope:Appearance style, appearance color, cable length, connection type

Products Description

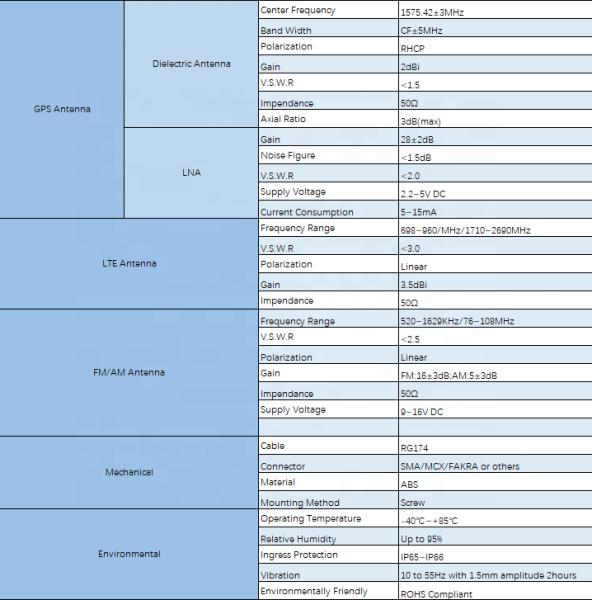

Product Parameters


GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±3MHz
				Band Width	CF±5MHz
				Polarization	RHCP
				Gain	2dBi
				V.S.W.R	<1.5
				Impendance	50Ω
				Axial Ratio	3dB(max)
		LNA	Gain	28±2dB
				Noise Figure	<1.5dB
				V.S.W.R	<2.0
				Supply Voltage	2.2~5V DC
				Current Consumption	5~15mA
LTE Antenna			Frequency Range	698~960/MHz/1710~2690MHz
				V.S.W.R	<3.0
				Polarization	Linear
				Gain	3.5dBi
				Impendance	50Ω
WIFI Antenna			Frequency Range	2400~2483.5MHz
				Band Width	83.5MHz
				Polarization	Linear
				Gain	3.0dBi
				V.S.W.R	<2.0
				Impendance	50Ω
Mechanical			Cable	RG174
				Connector	SMA/MCX/FAKRA or others
				Material	ABS
				Mounting Method	Screw
Environmental			Operating Temperature	-40℃~+85℃
				Relative Humidity	Up to 95%
				Ingress Protection	IP65~IP66
				Vibration	10 to 55Hz with 1.5mm amplitude 2hours
				Environmentally Friendly	ROHS Compliant

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Customizable FM AM GNSS WIFI LTE 4G Antenna Multifunctional Shark Fin Antenna Sharkfin for External Car Antenna

Name: Customizable FM AM GNSS WIFI LTE 4G Antenna Multifunctional Shark Fin Antenna Sharkfin for External Car Antenna
Brand: RIDA Antennaer
Price: 13 USD

Ask Latest Price

Product Detail

Model :

Universal

Car Fitment :

Universal

Car Model :

all car

Connector :

SMA

Year :

Universal

polarization :

RHCP

Contact Supplier

Shenzhen Ruida Yongli Technology Co., Ltd.

Verified Supplier

1 Years

guangdong, shenzhen

Since 2011

Business Type :

Manufacturer

Main Products :

GPS Antenna, Micro Coaxial Cables, Wifi Antenna

Total Annual :

9000000-10000000

Employee Number :

100~200

Certification Level :

Verified Supplier

Discover similar products

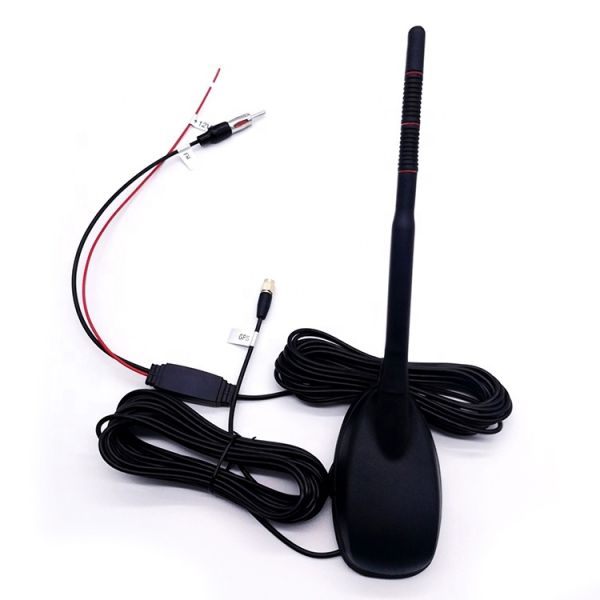

Car GPS + FM Combination External Shark Fin Antenna with 28dBi Gain for
