Specifications
Brand Name :
RBTX
Model Number :
RBTX-50-FTTH
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
Dongguan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
100% Advance T/T EXW Dongguan
Supply Ability :
10 Set/Month
Delivery Time :
15 Work Days
Packaging Details :
Wood Box
Description

Rongbagn 50 Line Indoor Fiber Cable Production Line FTTH Drop Cable Line

Indoor FTTH Drop Cable Production Machine 50 Line

Description


This Optical cable production line makes FTTH drop fiber optic cable 2.0x3.0mm, 2.0x5.0mm. Cable structure: bare fibers + steel wires/FRP strengthen members + LSZH/PVC/PE sheath, and other similar cables.

Indoor FTTH Drop Cable Production Machine 50 Line

Features:

1, Precision special extruder and precision free adjustment head, the extruder is suitable for materials such as PVC, LSZH, PE and other materials.

2. The surface of the cable is smooth.

3. Optical fibers are motorized released. The tension is precisely constant and the additional loss is small.

4. The temperature control is controlled by imported OMRON temperature control meter, and the temperature control is accurate.

5. double-reels automatic take-up, stable and reliable operation, automatic line-receiving of the take-up line, no need to rewind.

6. International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.

7. The main control systems and components are international famous brands, and the production line has high stability and reliability.

Technical Parameters

Parameter Value
Structure Speed 190m/min
Fiber Tension 0.4N-1.2N±0.05N
Additional Loss ≤0.02DB/KM (SM fiber)
Production Line Length ≤26M
Power Supply Requirements 63KVA, AC380V ±10% 50HZ three-phase five-wire
Normarl Machine Power Consumes ≈35KW/h
Production Capacity

≈9km/h( ftth cable 2.0X3.0mm)

≈7km/h( ftth cable 2.0X5.0mm)

Line Configuration


01. Φ800 Stengthen member bigger steel wire pay-off;

02. 4 heads fiber +2head FRP/ small Steel wire pay-off;

03. Mobile mold supporting;

04. 50 extruder;

06. Dryer +hopper;

07. IPC+PLC FIBERCAN program control systerm;

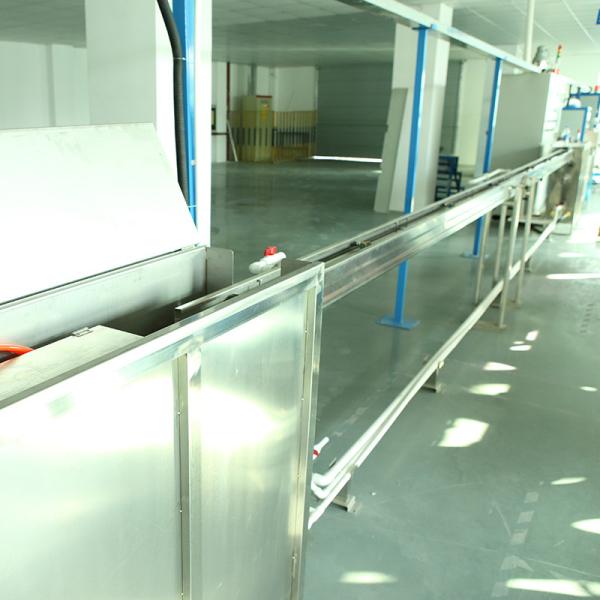

08. moving water trough and warm water tank;

09. fixed type cooling water trough and cooling water tank

10. laser diameter gauge;

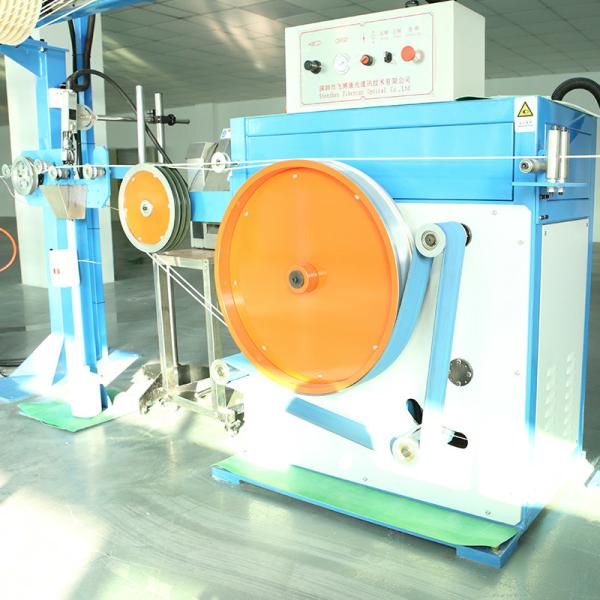

11. dual-wheel capstan;

12. cable accumulator;

13. dual-wheel take-up

Machine component configuration is adjustable according process request.
