Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving
Specifications
Brand Name :
ORIGIN
Model Number :
LY-KGO1
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000000 per week
Delivery Time :
3-5days

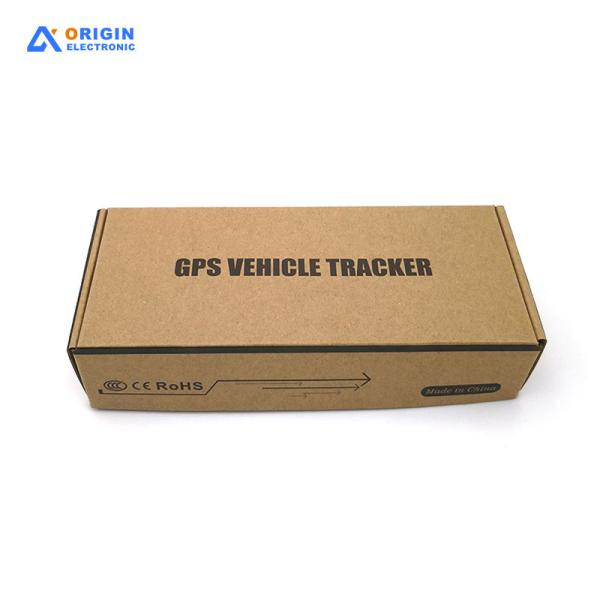

Packaging Details :
brown box
Color :
Black
Connectivity :
GPS, GSM
Weight :
Not specified
Waterproof :
Yes
Compatibility :
Works with most vehicles
Geo-Fence Alerts :
Yes
Power Source :
DC 9-36V
Material :
Not specified
Real-Time Tracking :
Yes
Remote Control :
Yes
History Playback :
Yes
Dimensions :
Not specified
Description

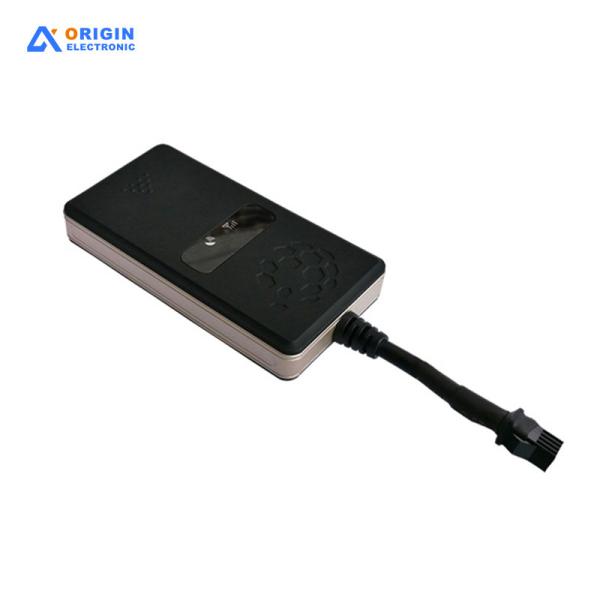

Super Mini GPS Car Motor Tracker - Compact, Energy - Saving with Advanced Tracking Features

Product Information

Compact design that doesn't interfere with the car's interior aesthetics.​

Energy - saving design extends the device's battery life, providing reliable service.​

Advanced tracking features on the platform, like detailed history trace and multi - point mapping.​

Geo - fence alert system is customizable to suit your specific security needs.

Platform

Compact Vehicle GPS System Super Mini Car Motor GPS Tracker Energy Saving

Product Specifications

Item Specification
Antenna Built-in GPS ceramic antenna
Built-in LED indicator Positioning light: Yellow, Communication light: Red
Backup battery 280mAH Soft pack lithium battery
Working voltage/current 30mA@12V (Operating)
4.5mA@12V (Standby)
Host color Black
Host size L81mm*W42mm*H13.5mm
Working temperature -25℃ to +75℃
Storage temperature -40℃ to +85℃
Location module B1010-T1(UC6226)
Communication module BC760-W(UIS8910)
G-sensor DA213
Charging IC LTH7R
GPS antenna 25*25*4MM
IC DC/DC LN3406AFMR
IC DC/DC SP0M18STER
IC LDO GD30LD1000WGTR

Communication Specifications

Item Specification
Communication system GSM/4G(TDD-LTE/FDD-LTE)
Band (Frequency) Band No.
GSM: 850/900/1800/1900Mhz
B1/B2/B3/B4/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41

BDS/GPS Specifications

Item Specification
GPS chipset UC6226
GPS channel 22
Location accuracy <10 meters
Tracking sensitivity -163dBm
Acquisition sensitivity -147dBm
TTFF Hot start: 15s (1); Cold start: 60s (28)
