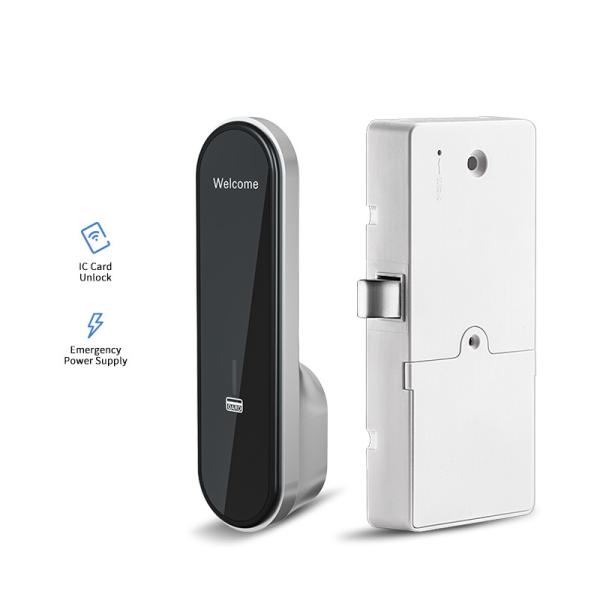

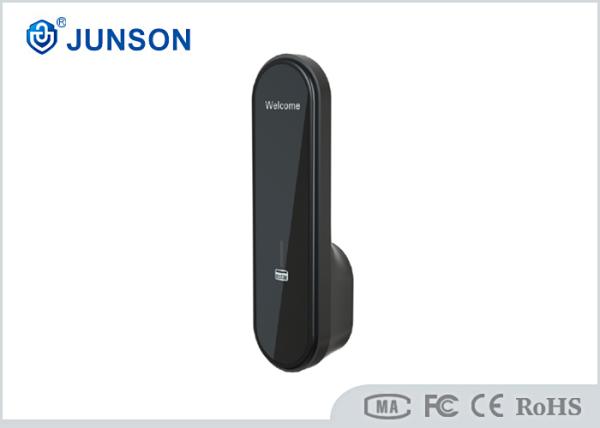

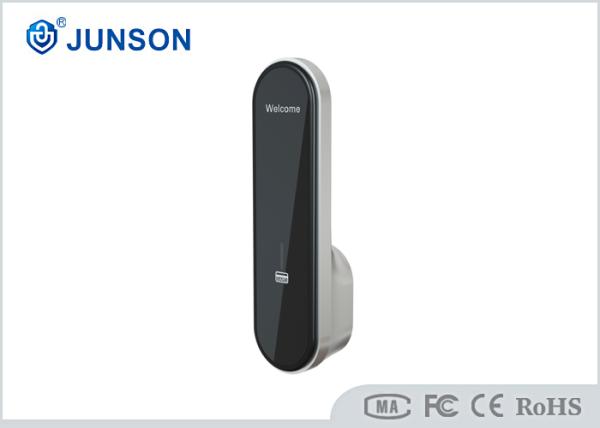

Electronic Proximity RFID Digital Cabinet Locker Lock For Gym And Fitness Changing Room

Smart RFID Card Cabinet Lock

Model: JS-EM175

The Smart RFID Keyless Cabinet Lock offers a modern, keyless solution for secure access.

Highlights:
Keyless Entry: Unlocks with RFID cards,tags or wristband. Fingerprint unlocking is optional.
Easy Installation: User-friendly for various cabinets and lockers.
Durable: Built for long-lasting use.
Secure: Reduces unauthorized access risks.

Features:

Unlocking Methods: Supports single card or double card unlocking (guest card + service card).
Applications: Ideal for hotels, apartments, modern offices, campuses, dormitories, gym and fitness changing room
Certifications: CE, FCC, ROHS certified.
Unlock Method: Card-based access. Fingerprint and password unlocking is optional.
Card Types: Compatible with IC, RF, METIC, and M1 cards.
Custom Branding: Logo printing supported.
Material: Durable zinc alloy body.
Quick Access: Unlocks in less than 1 second.
Card Capacity: 1 master/manager card and 15 user/guest cards.
Power Supply: Operates on 1.5V direct current, using 4 pieces of 2A alkaline batteries.
Battery Life: Lasts over 15 months with a lifespan of 1000 openings.
Temperature Range: Functional from -30°C to 80°C.
External Power Interface: Available for backup power options.

Technical Parameter:

Material: stainless steel

Lock body material: ABS Plastic

Accept cabinet or wardorbe door thickness: within 50mm.

Suitable for Wooden OR Metal door

Power supply: 4 pcs AA alkaline batteries.

Battery life span: more than 12 months.

Working Voltage: 6.0V (4 pieces of 1.5V alkaline batteries)

Static power consumption: <40uA

Dynamic power: <300 mA

Low voltage indication:<4.8V

Temperature: 0℃ -70℃

Working humidity: ≤ 80%

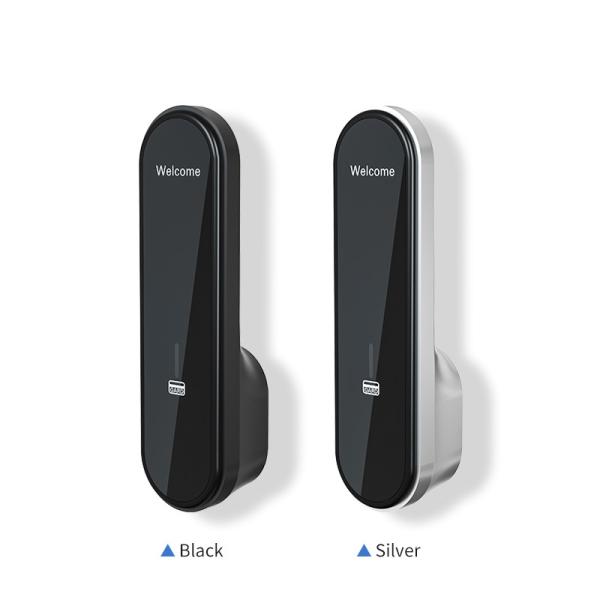

Appearance and Dimension:

Fingerprint and pincode unlocking is optional:

Supports ID/EM cards,tags or wristband:

FAQ:

Q1: What unlocking methods does the lock support?
A1: The lock supports both single card and double card unlocking (guest card + service card).
Fingerprint and pincode unlocking is optional.

Q2: Where can this lock be used?
A2: It is suitable for hotels, apartments, modern offices, campuses, gym and dormitories.

Q3: What certifications does the lock have?
A3: The lock is CE, FCC, and ROHS certified.

Q4: What types of cards are compatible with the lock?
A4: It works with IC, ID cards etc.

Q5: Can I customize the lock with my logo?
A5: Yes, logo printing is supported for customization.

Q6: What material is the lock made of?
A6: The body is made from durable zinc alloy.

Q7: How quickly does the lock unlock?
A7: The lock unlocks in less than 1 second.

Q8: What is the capacity for master and guest cards?
A8: It can store 1 master card and up to 15 guest cards.

Q9: What is the power supply requirement?
A9: The lock operates on 1.5V direct current, using 4 pieces of 2A alkaline batteries.

Q10: How long does the battery last?
A10: The battery life exceeds 15 months and can open the door approximately 1000 times.
