304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
Specifications
Brand Name :
JUNSON
Model Number :
JS-H901
Certification :
CE/FCC
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,paypal or western Union in advance
Supply Ability :
5000 pcs per month
Delivery Time :
2-7 working days after received your payment
Packaging Details :
Packed in carton
Brand :
JUNSON
Dimension :
114 L * 70W * 29H mm
Magnet plate size :
Dia 55mm
Materials of case :
304 Stainless Steel, wire draw finishing
Finish case :
Wire draw finishing
Sensor Feedbacksize :
NO/NC, for control the status of doors
Suitable For :
Glass door
Release Mechanism :
Manual and Automatic Release
Working Humidity :
0% to 95%
Working Voltage :
12V or 24V
Description
ANSI Wall Mount Door Holder Stainless Steel Case
Model: JS-H901

American Type Wall Mount door holder, Feature of Low Power consumption makes it more environmental friendly and more durable.

Manual door release button, build-out release button for testing and build-in MOV reverse current protection.

Specifications:
Dimension 114 L * 70W * 29H mm
Magnet plate size Dia 55mm
Holding force 70kg 120lbs
Operation voltage 24 V/ 12V DC by special order
Standby current 140mA@12V, 70mA@24V
Materials of case 304 Stainless Steel, wire draw finishing
Suitable for All kinds of single & double smoke proof door
Finishes for Armature Zinc plating
Color Silver
Finish case Wire draw finishing
Red button Manual door release button, release door.
Surface temp. <20℃
Temperature -10°~55°C
Humidity 0~90% RH
Net Weight 1.0kg
Standard Packing 20pcs
Cartons size 60L * 35W * 16.5H (cm)
Grass Weight 23kg
Features:
  • 1 . Colinear load test 70kg, 120pounds.
  • 2 .default voltage 24vdc(12V can be Adjustment).
  • 3 . Mov provides reverse current protection.
  • 4 . Low power, environmental protection.
  • 5. With Manual door release button, press button to release door
  • 6 . Anti-residual magnetism design.
  • 7 . Professional design, dual insulative housing.
  • 8 . Automatically close the smoke proof door when fire happened
  • 9. Suitable for Floor installation or glass door
  • 10. Release lock when power off

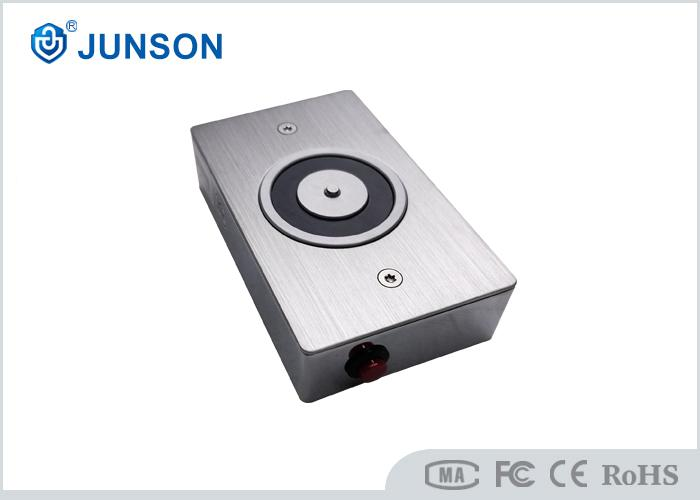

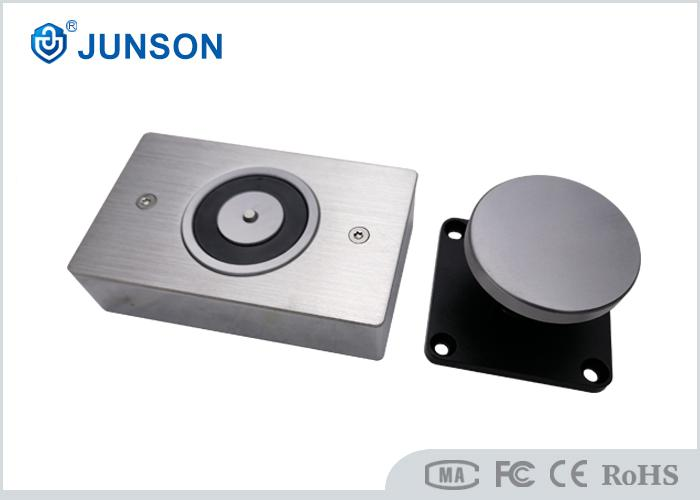

Photo of door holder:
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
Quality Control:

We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.

  1. All raw material checked once it arrive our factory.
  2. All pieces and logo and all details checked during production.
  3. All packing details checked during production.
  4. All production quality and packing checked on final inspection after finished.
