JUNSON 12-24V wide voltage, IP67 full sealed waterproof, LED indication, Lock stutas sensor feedback

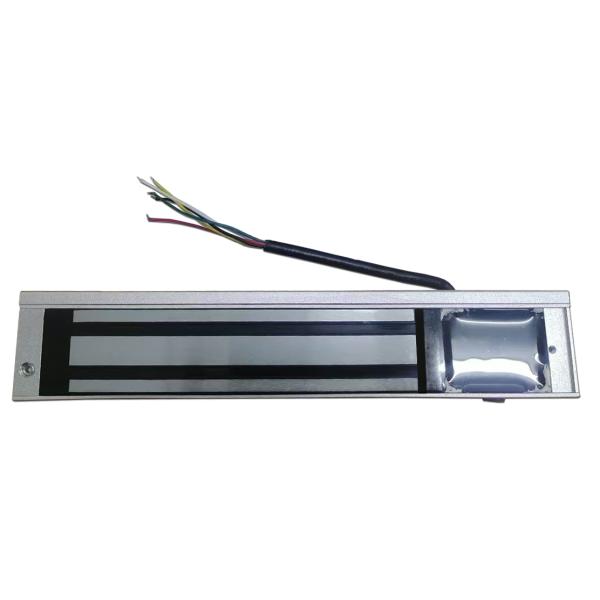

Waterproof Single Door Magnetic Lock

Specification:

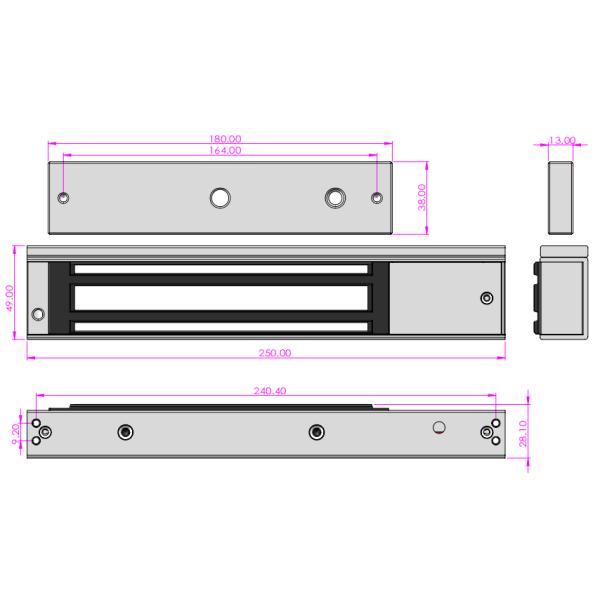

Lock Size: 250Lx49.5Wx26.5H(mm),

Armature plate: 180Lx38Wx13H(mm)

Holding Force: 280kg(600Lbs)

Voltage: 12 ~24VDC, auto adjustment

Materials: Fine copper coil + aluminum housing

Current Draw: 12V/480mA 24V/240mA

Available Bracket: JS-28U, JS-28L. JS-28ZL

LED indicate: Green to lock, Red to open

Lock status sensor: NO, NC, Com

Suitable for: Wooden door, Glass door, Metal door, Fireproof door

Waterproof IP Rate: IP67

Surface Temp: ≤+20

Operating Temp: -20~+55°C

Suitable Humidity: 0~90%(non-condensing)

Finishes for Shell: Anodized aluminum

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 2kg,

Standard Packing: 10PCS

Standard carton dimension:350Lx290Wx160H(mm)

Have CE, ROHS,FCC, MA certification

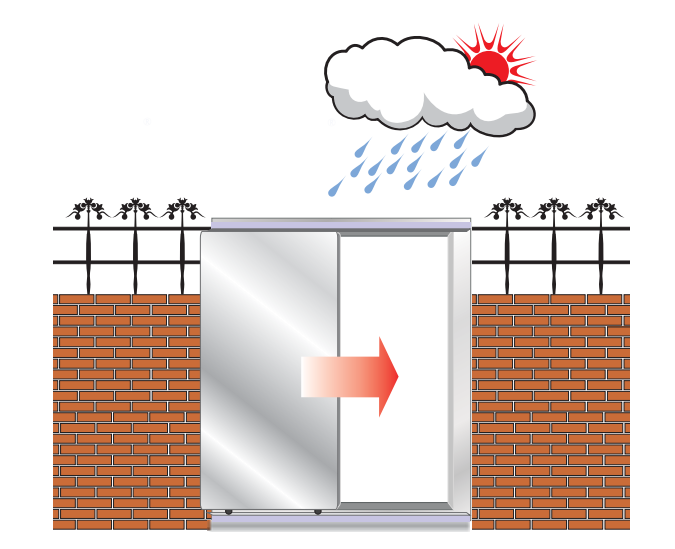

The Electromagnetic Locks are totally sealed in an epoxy filled Alumnium case for water-resistant and vandal resistant purpose. A threaded conduit fitting ensures weather resistant protection of the wiring therefore it is ideal for indoor and outdoor applications, even in severe weather. We offers up to 600 pounds holding force with 12V -24V DC adapter voltage power input, it is the best choice for electronic security industry and system .

FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer. And we trade our products with our clients directly.

Q: How many different types of products your company manufactures?

A: Now we have more than 500 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: Can you do OEM and ODM? (Can you help with the design?)

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
