JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
Specifications
Capacity :
3000 cards
Model Number :
JS-K6902
Frequency distance :
up to 8cm
Gross Weigth :
0.27kg
MOQ :
5pcs
Delivery Time :
2-7 working days after received your payment
Dimension :
63L *16H mm
Brand Name :
Junson
waterproof rate :
IP66
Packaging Details :
Packed in carton
Card type :
EM or MF
Payment Terms :
T/T,paypal or western Union in advance
Wiegand output :
Build in Wg26/34
Price :
negotiation
Door relay time :
1-99S
Supply Ability :
5000 pcs per month
Materials :
Zinc Alloy Housing
Certification :
CE/FCC
Voltage :
12V DC ± 25%
Place of Origin :
China
Description

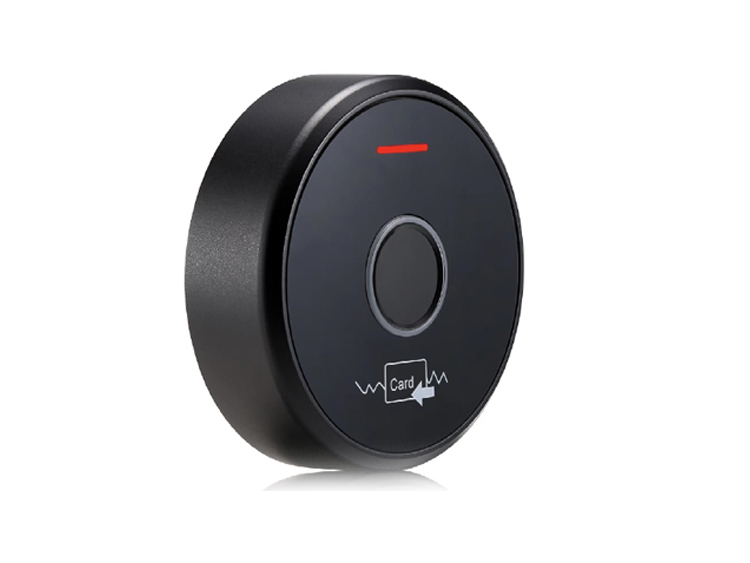

JS-K6902 Series Standalone Waterproof RFID Access Control Reader

Metal Case RFID Access Control


JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34

Model: JS-K6902

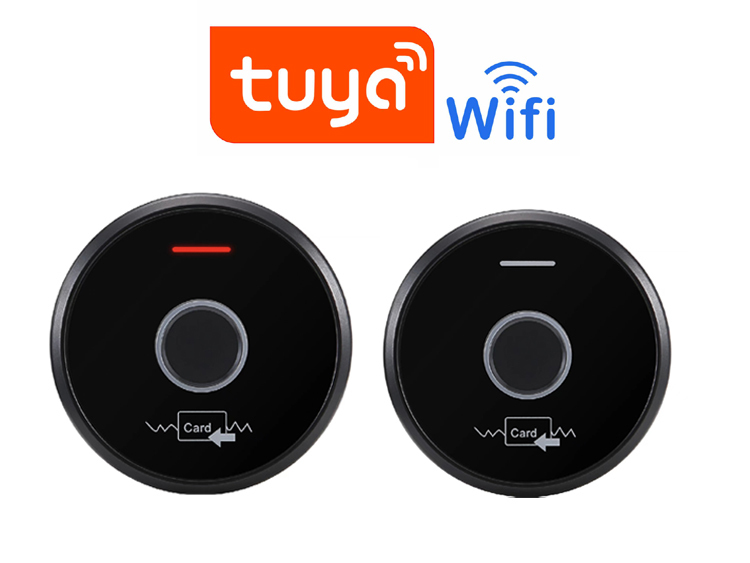

Upgrade your door security with the JS-K6902 Series — a rugged, standalone access control reader built for outdoor environments. Housed in a vandal-resistant zinc alloy metal case with an IP66 waterproof rating, this compact round reader supports up to 3,000 users and offers EM or MF card compatibility, Wiegand 26/34 input/output, and multi-mode unlocking options. Choose from three models: JS-K6902 (RFID only), JS-F6902 (Fingerprint + Card), or JS-F6902-Wifi (Fingerprint + Card + Tuya App) for remote management via smartphone.




Specifications:


Dimension: Dia. 63 mm × 16 mm (H)
Waterproof rate: IP66
Materials: Zinc Alloy Housing
Voltage: 12V DC ± 25%
Frequency distance 3-8cm
Wiegand output Build in Wg26/34
Card type: EM or MF
Card Frequency 125Khz or 13.5Mhz
Surface Temp: ≦20℃
Operating Humidity 10-95%
Door relay time 1-99S
Net Weight: 0.20kg
Gross Weigth: 0.27kg




Key Features:
  • IP66 waterproof & anti-vandal design — zinc alloy housing, ideal for outdoor and harsh environments
  • Three models available — RFID only / Fingerprint + Card / Fingerprint + Card + Tuya App (WiFi)
  • Large user capacity — up to 3,000 users (200 fingerprints + 2,800 cards on fingerprint models)
  • Wide compatibility — supports EM (125KHz) or MF (13.56MHz) cards
  • Wiegand 26/34 in/out — works standalone, as a reader with a control board, or with external readers; MF supports Wiegand 26–44, 56 and 58 bits
  • Remote access (WiFi model) — unlock doors, add/delete users, view door records, and set temporary visitor PINs via the Tuya App
  • Backlit metal keys — slim, elegant, rugged and explosion-proof
  • Data protection — user data is retained even after power failure
  • Flexible unlock modes — card, fingerprint, app, multi-user, and temporary visitor access
  • Easy user management — upload/download card user data; management card supported
  • Wide temperature range — operates from -40℃ to 60℃




Model Comparison:



 JS-K6902 JS-F6902 JS-F6902-Wifi
Type RFID only Fingerprint + Card Fingerprint + Card + Tuya App
Capacity 3,000 cards 200 fingerprints + 2,800 cards 200 fingerprints + 400 cards
Communication Standalone Standalone WiFi
Unlock Methods Card Fingerprint, Card App, Fingerprint, Card




Connection Diagrame:




Photos:






FAQ:


Q1: Can this device be used outdoors?
Yes. The JS-6902 series features an IP66 waterproof rating and a rugged zinc alloy housing, making it suitable for outdoor installation in rain, dust, and extreme temperatures (-40℃ to 60℃).

Q2: What is the difference between the three models?
The JS-K6902 is a card-only reader with 3,000-card capacity. The JS-F6902 adds fingerprint recognition (200 fingerprints + 2,800 cards). The JS-F6902-Wifi combines fingerprint, card, and Tuya App control with remote unlocking and user management over WiFi.

Q3: Which card types are supported?
The device supports EM cards (125KHz) or MF cards (13.56MHz), depending on the version ordered.

Q4: Can it work with my existing access control board?
Yes. It has built-in Wiegand 26/34 input and output, so it can function as a standalone controller or as a reader connected to a third-party access control panel.

Q5: What happens to my user data if the power goes out?
All user data is protected and retained even after a power failure — no need to re-enroll users.

Q6: How do I set a temporary visitor PIN?
On the WiFi model (JS-F6902-Wifi), you can set temporary visitor access codes directly through the Tuya App.
