No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
Specifications
Brand Name :
JUNSON
Model Number :
JS-NT32
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
100
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs per week
Delivery Time :
3-5 working days
Packaging Details :
200pcs per carton
Materials :
Aluninum Case, ABS face plate
Installation Size :
Dia 32mm
Color: :
Silver
LED color :
Blue when action
Action distance :
less 3cm
Avalable :
Any kindy of Elevator
Voltage :
12-24VDC
Current :
12mA
Output Sensor :
No, Com
Action sensor :
Infrared Technology
Description

No Touch Infrared exit button for elevator Blue led elevator button

Model: JS-NT32

No Touch Elevator button use Infrared Technology, no need touch the buttons to chieve the floor. Prevent virus to spread by touch. And specail words, symbol can be customized too, it is very porpular to instead machanical button on Elevator now.

Specification:

Dimension Dia 34.2*20 (mm)
Materials Aluminum case, ABS faceplate
Action distance ≦3cm
Available No Touch Elevator
LED indication No light standby, Blue when work
Finishing Polishing Plating
Working Voltage 12-24V DC
Working Current 12mA
Contact interface NO / Com
Mechanical life 500000 times
Operating Temp -20℃ - 55℃ (14-131F)
Suitable Humidity 0-95% (non-condensing)
Weight 0.08kg
Standard Packing 200pcs
Cartons size: 48L*24W*20H(cm)

No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator

Features:

1. No Touch, Prevent virus to spread by touch

2. Aluminum materials, Antijam, Action distance less 3cm, avoid misoperation

3. 500000 Cycles tests lifes
4. Two Contact Output,No/COM, easy to connector
5 . Seal treatment in the bottom of switch, increase the production’s life.

No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator

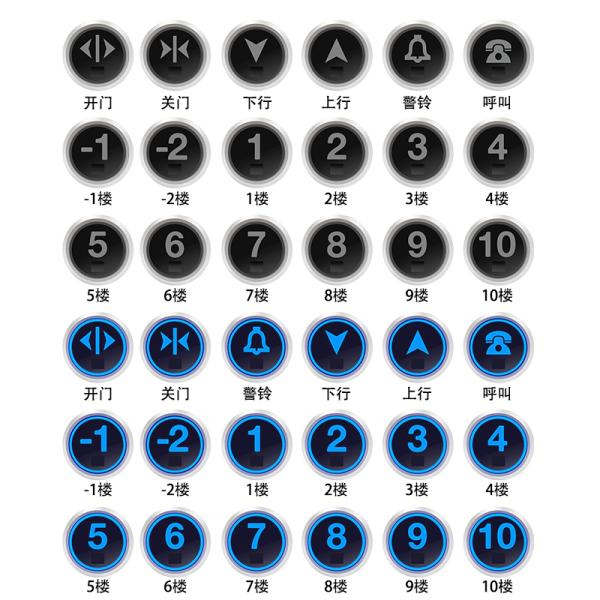

6. Support customized for LOGO, special words and symbol by client.

7. Intelligent Circuit control, instead mechanical button, Lift time is increased

8. No Touch Infrared sensing technology, more standby

9. With LED indication, Blue light when action.

Dimension diagram:

No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator

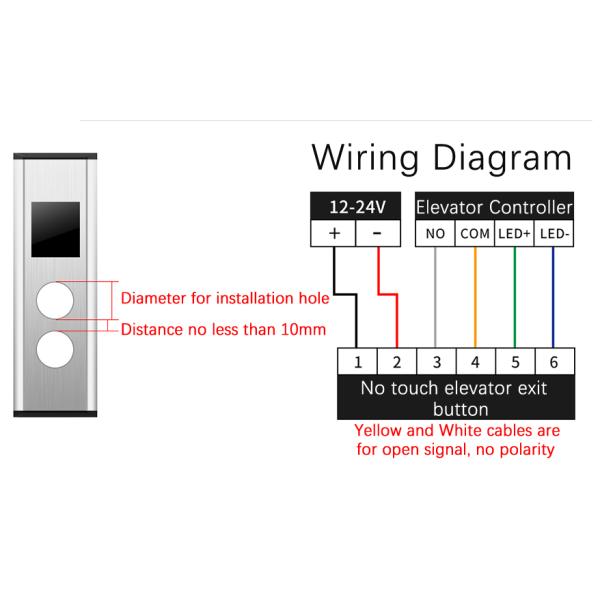

Wiring Diagram:

No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator

No Touch 12mA 3cm Action Infrared Exit Button 12-24VDC Infrared For Elevator
