Specifications
Brand Name :
GUANGLIJIN
Model Number :
F50 Medical special turning and milling machine
Place of Origin :
China
Certification :
CE Certificate
MOQ :
1
Packaging Details :
Fumigation wooden frame - in line with international standards
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
100 units/month
Description

Product Description:

Medical Dedicated Turning-Milling Composite Denture Processing Machine – Revolutionary Processing Technology for Intelligent and Precise Denture Manufacturing

Disrupting traditional processing methods with innovative turning-milling composite technology! Simply clamp the titanium rod raw material once to complete all processing steps, eliminating the cumbersome multi-step process of traditional lathe rough machining + CNC precision machining. Medical-grade machining accuracy reaches ±0.01mm, ensuring every denture is flawless.

【Core Advantages】

Integrated Processing: Turning-milling composite technology eliminates secondary clamping, improving efficiency by 200%

Intelligent Feeding System (Optional): Supports 24/7 uninterrupted automated production

Extended Operation: Standard version enables continuous automatic processing for over 8 hours

Fully Enclosed Servo High-Speed Rotary Tool Magazine: 0.8-second ultra-fast tool change with dustproof and moisture-proof design

Military-Grade Stability: Maintains precision as reliable as ever even under high-intensity machining for a decade

User-Friendly Operation: 10.4-inch smart touchscreen, easy for beginners to master

【Applications】
▶ Dental Implants ▶ Full Zirconia Crowns ▶ Titanium Abutments ▶ Occlusal Guides ▶ Customized Frameworks

【Performance Assurance】

Fully sealed protection design, IP54 protection rating

Servo-driven system ensures smooth and reliable operation

Intelligent temperature control system guarantees stability during prolonged machining

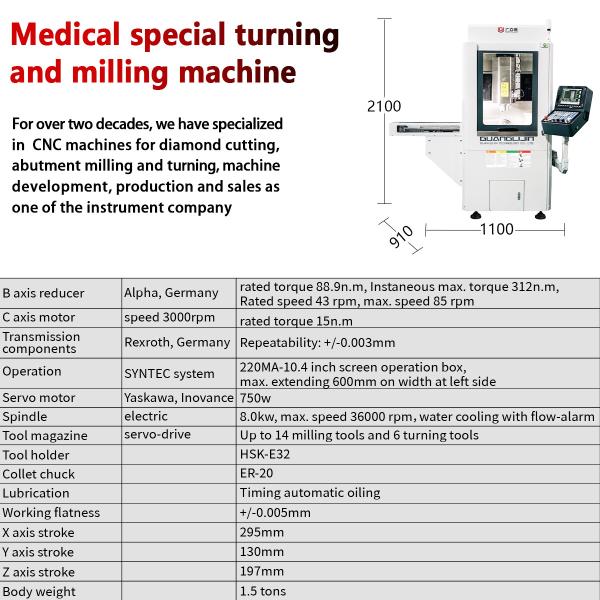

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 C axis motor speed 3000rpm rated torque 15n.m
3 Transmission components Rexroth, Germany Repeatability: +/-0.003mm
4 Operation SYNTEC system 220MA-10.4 inch screen operation box,
max. extending 600mm on width at left side
5 Servo motor Yaskawa, Japan 400w/ 750w
6 Spindle electric 8.0kw, max. speed 36000 rpm
water cooling with flow-alarm
7 Tool magazine servo-drive Up to 16 milling tools and 4 turning tools
8 Tool calibration automatic setting 50 - 200mm/min, repeatability: 0.002mm
9 Tool holder HSK-E32
10 Collet chuck ER-20
11 Lubrication Timing automatic oiling
12 Working flatness +/-0.005mm
13 X axis stroke 400mm
14 Y axis stroke 155mm
15 Z axis stroke 235mm
16 Body weight 1.5 tons
17 Front door penumatic driving extending 600mm upward when opened
18 Layout (mm) main body min.: 1100 width*1300 depth*2100 height
max.: 2400 width*1300 depth*2700 height
19 Power requirement three-phase 380v/50hz
20 Feeding automatic feeding Penumatic driving, extended 700mm on width at right side
21 Collecting automatic collecting Penumatic driving
Four Axis Dental Milling Units Lab Milling Machine In Dentistry

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
