Specifications
Transmission components :
Repeatability: +/-0.005mm
Body weight :
0.5 Tons
Collet chuck :
ER-11
Tool holder :
ISO 10 T11
Place of Origin :
101/F and 201/F,Building27,Lianchuang Science and Technology Park,21 BulanRoad, Xialilang Village,Nanwan Street, Shenzhen
MOQ :
1
Main spindle :
2.5kw, Max. Speed 60000 Rpm
Delivery Time :
30 days
Model Number :
G5-220 Micro Five-Axis Engraving And Milling Machine
Certification :
CE Certificate
Packaging Details :
Fumigation wooden frame - in line with international standards
Payment Terms :
T/T
Supply Ability :
100 units/month
Servo motor :
200w/400w
Brand Name :
guanglijin
Description

Product Features:

This high-performance jewelry manufacturing machine is designed for precision machining of small, intricate parts, offering exceptional accuracy, stability, and efficiency.

Key Features

  1. Industry-Specific Design

    • Optimized for precious metal processing with material utilization rate exceeding 99.95%

    • Ideal for precision machining of gold, platinum, and other precious metals

  2. Outstanding Mechanical Performance

    • Monolithic cast iron construction ensures vibration damping and long-term accuracy

    • 4th/5th axes equipped with Japanese precision reducers (±0.003mm positioning accuracy)

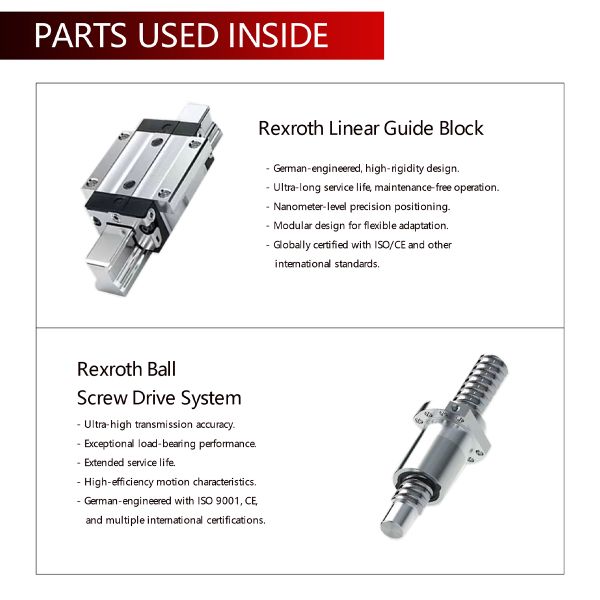

    • German Rexroth ball screws and linear guides for superior motion control

  3. Intelligent Machining System

    • Lenake intelligent control system

    • 10.4" industrial touchscreen for user-friendly operation

    • Fully enclosed servo-driven tool magazine (12 stations) with 5-6 second tool change

Technical Specifications

  • Spindle Speed: 60,000 RPM (water-cooled)

  • Positioning Accuracy: ±0.005mm

  • Working Travel: X-220mm / Y-105mm / Z-115mm

  • Machine Dimensions: 620×740×1520mm (W×D×H)

Applications

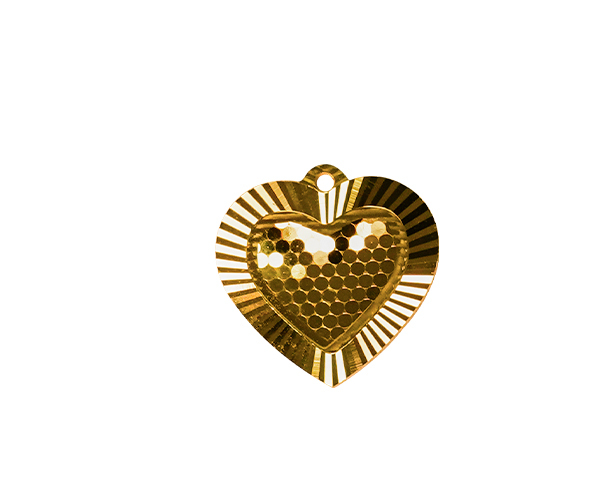

  • Jewelry manufacturing (rings, pendants, bracelets, etc.)

  • Precision components in precious metals

  • Suitable for jewelry workshops, manufacturing centers, and high-end customization stores

Note: Operates on 220V/50Hz power supply. Machine weight: 500kg. Includes safety doors and automatic lubrication system.

Optional configurations available for specific processing requirements.

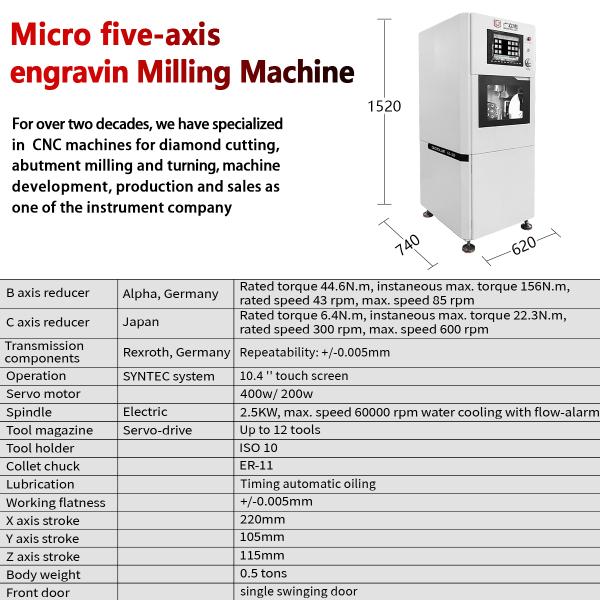

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany Rated torque 44.6n.m,
Instaneous max. torque 156n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 C axis reducer Japan Rated torque 6.4n.m,
Instaneous max. torque 22.3n.m,
Rated speed 300 rpm, max. speed 600 rpm
3 Transmission components Rexroth, Germany Repeatability: +/-0.005mm
4 Operation SYNTEC system 10.4'' touch screen
5 Servo motor 400w/ 200w
6 Spindle electric 2.5kw, max. speed 60000 rpm
water cooling with flow-alarm
7 Tool magazine servo-drive Up to 12 tools
8 Tool holder ISO 10
9 Collet chuck ER-11
10 Lubrication Timing automatic oiling
11 Working flatness +/-0.005mm
12 X axis stroke 220mm
13 Y axis stroke 105mm
14 Z axis stroke 115mm
15 Body weight 0.5 tons
16 Front door single swinging door
17 Layout (mm) main body 620 width*740 depth*1520 height
18 Power requirement 220v/50hz

G5-220 Micro Five-Axis Engraving And Milling Machine 0.5 Tons Body Weight Five Axis Jewelry Carving Machine Including ISO 10 T11 Tool Holder and ER 11 Collet Chuck Ideal for Jewelry CraftingG5-220 Micro Five-Axis Engraving And Milling Machine 0.5 Tons Body Weight Five Axis Jewelry Carving Machine Including ISO 10 T11 Tool Holder and ER 11 Collet Chuck Ideal for Jewelry CraftingG5-220 Micro Five-Axis Engraving And Milling Machine 0.5 Tons Body Weight Five Axis Jewelry Carving Machine Including ISO 10 T11 Tool Holder and ER 11 Collet Chuck Ideal for Jewelry Crafting

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
