Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions
Specifications
Brand Name :
SZ
Model Number :
SZPES
Certification :
CE,ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
10,000 square meter
Price :
$0.3-$2.0/SQM
Supply Ability :
30.000 Square Meters per Day
Delivery Time :
5-8 working days
Packaging Details :
Packed in Roll Or customized packing as your request.
Product Name :

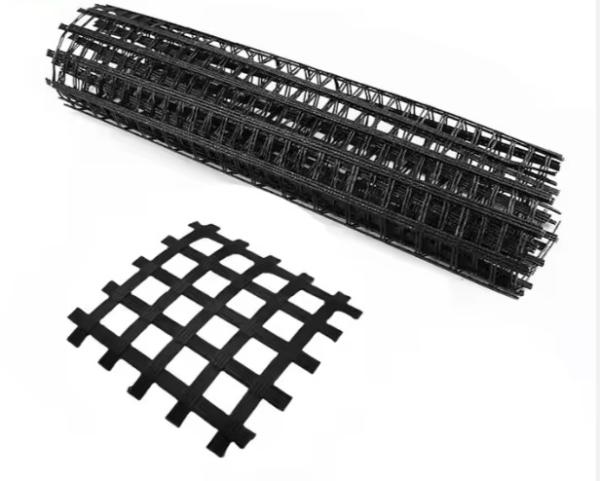

Pet 100-30 Kn/M Uniaxial Polyester Geogrid
Application :

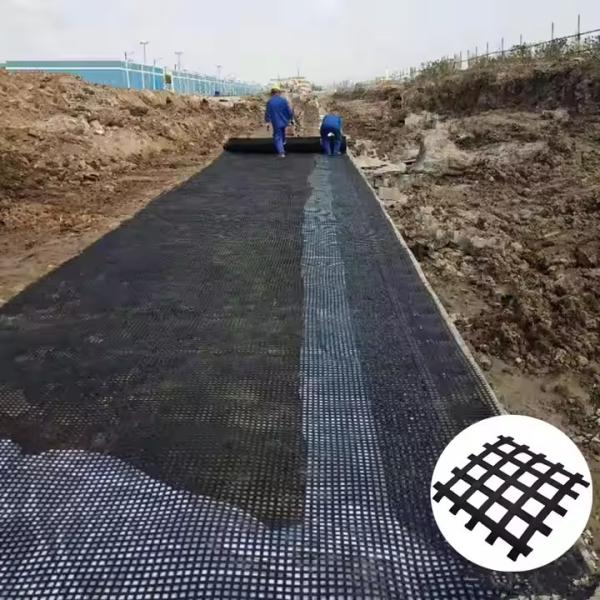

Slope Reinforcement Solutions
Feature :
Anti Corrosion
Tensile strength :
700/100 kn/m
Elongation :
> 10%
Type :
Uniaxial
Mesh size :
50.8*50.8
Width :
1-6m
Description

Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions

About Yixing Shenzhou Polyester Geogrid :

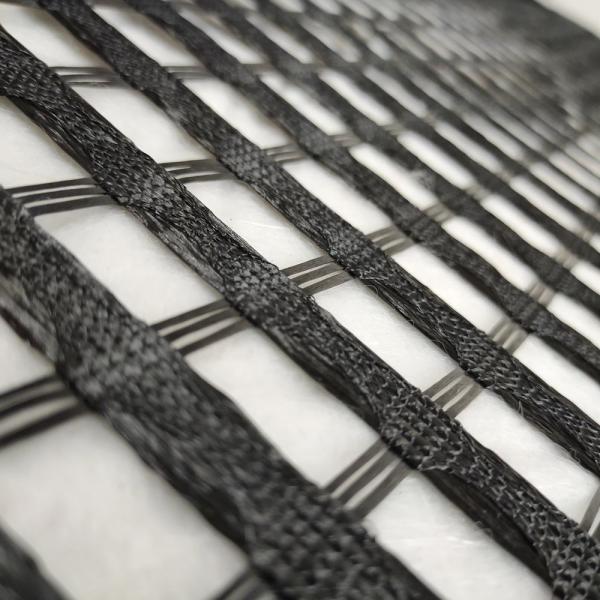

Polyester geogrids are polymer-based materials with a grid-like structure and large apertures, mostly fabricated from polyethylene terephthalate [PET], known for high tensile strength and durability. These geogrids are used basically for the reinforcement of soils. By nature, they become quintessential in most construction and engineering works. PET GRID by YIXING SHENZHOU is a high-performance soil reinforcement solution produced by knitting high-tenacity polyester yarn into dimensionally stable networks of apertures, forming a geometric grid that offers outstanding strength and stability.

Item/Spec
Tensile strength≥ Kn/m
Elongation≤ %
Grid size mm
Width m
30—100
30-1200 Warp
10
25.4x25.4
2 or 4 or 5.2 or 6
120--1200
30-1200 Weft
13(or)
50.8x50.8(or)
Flexible options, customizable width

Properties of polyester geogrids:

  • Tensile strength: Thousands of tests have been conducted, and the results for tensile strength are typically from 85 MPa to over 200 MPa, depending on the design and manufacturing of a different polyester geogrid. PET GRID has tensile strengths up to 800 kN, and are truly exceptional and ensure reliable service under the most difficult conditions.

  • Modulus of elasticity: The modulus of elasticity for polyester geogrids will lie between 2.76 and 4.14 GPa, which enables it to deform elastically without permanent damage under any level of stress.

  • Creep resistance: Polyester geogrids are designed to be resistant to creep, which is a time-dependent deformation caused by constant load. Accelerated creep tests show that these geogrids will retain their structural integrity over very long periods and are thus suitable for use in long-term applications in civil engineering.

  • Chemical resistance: Generally, polyester is a material which has excellent resistance to a wide range of chemicals, thus improving the durability of geogrids under hostile circumstances, such as one finds in landfill applications and road construction.

  • UV resistance: A protective polymer coating is treated on many polyester geogrids to enhance its resistance to ultraviolet radiation for its longevity under sunlight. Yixing shenzhou's Grid features a company-developed, UV-stabilised coating compound that offers enhanced durability against environmental factors.

Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions

Road Construction Pet 100-30 Kn/M Uniaxial Polyester Geogrid Slope Reinforcement Solutions

SHENZHOU® is a geogrid reinforcement for soil. These high performance geogrids are constructed of high molecular weight and high tenacity polyester yarns utilizing a complex knitting process and polymeric coating to provide superior engineering properties. Yarns are precision knitted into a dimensionally stable, uniform network of apertures providing significant tensile reinforcement capacity. SHENZHOU is engineered to be mechanically and chemically durable, in both the harsh construction installation phase and in aggressive soil environments
