Plastic Road Geo Grids PP Biaxial Geogrid 20kn 30kn 40kn for Road Reinforcement

PP Biaxial Biaxial Geogrid – YIXING SHENZHOU

What is a biaxial geogrid?
A biaxial geogrid is a polymer-based geogrid specifically designed for ground stabilization. It provides exceptional strength in both the longitudinal and transverse directions, thanks to its grid structure that enables bidirectional reinforcement.

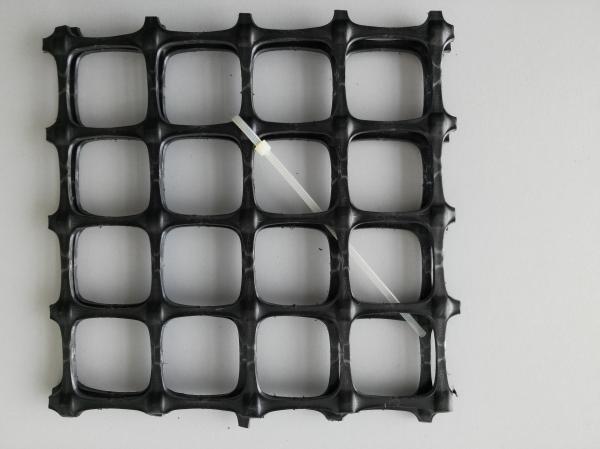

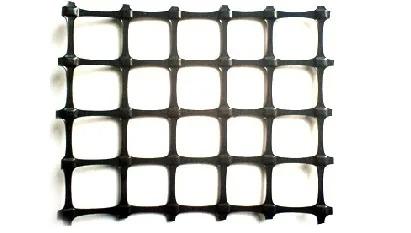

PP Biaxial Plastic Geogrid
it is made from Polypropylene polymer. Yixing Shenzhou PP biaxial geogrid is manufactured through the process of extruding the sheet, punching the designed holes, and heating while longitudinal stretching and transverse stretching. Through this process, we supply PP Biaxial Plastic Geogrid which is the same stress of the longitudinal stretching and transverse stretching. Or do you need the different stresses of the longitudinal stretching and transverse stretching PP Biaxial Plastic Geogrid

Application of PP Biaxial Geogrid:

Slope Protecting

Water Conservancy Dam

Plastic Biaxial Geogrid Technicail Specification :

Plastic Biaxial Geogrid Uses:

Plastic biaxial geogrid is suitable for various dam and roadbed reinforcement, slope protection, tunnel wall reinforcement, large airports, parking lots, dock cargo yards and other permanent load-bearing foundation reinforcement.

1. Increase the bearing capacity of the road (ground) foundation and extend the service life of the road (ground).

2. Prevent the road (ground) surface from collapsing or cracking, and keep the ground beautiful and neat.

3. Convenient construction, saving time and effort, shortening the construction period and reducing maintenance costs.

4. Prevent cracks in culverts.

5. Strengthen the soil slope and prevent soil erosion.

6. Reduce the thickness of the cushion layer and save construction costs.

7. Support the stability of the slope grass net mat and green the environment.

8. It can replace the metal mesh and be used for the false roof net in coal mines.

Construction method of plastic biaxial BX grid:

When plastic biaxial grid is used for roadbed and pavement, dig the base bed, set the sand cushion layer

(height difference is not more than 10cm), roll it into a platform, lay the grid, the longitudinal axis should be consistent with

the main force direction, overlap 15-20cm longitudinally and 10cm horizontally, tie the overlap with plastic tape, and fix it

to the ground with U-shaped nails every 1.5-2m on the laid grid. The laid geogrid should be backfilled with soil in time,

and the number of laid geogrid layers depends on the technical requirements.
