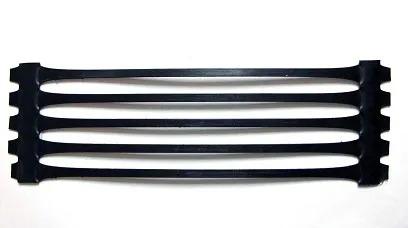

HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope
Specifications
Brand Name :
SZ
Model Number :
PP Biaxial Geogrid
Certification :
ISO/CE
Place of Origin :
China
MOQ :
10000SQM
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T,Western Union,MoneyGram,D/P
Supply Ability :
20000SQM Per Day
Delivery Time :
Withine 15 days
Packaging Details :
Directly By Roll
Product Name :
HDPE Plastic uniaxial Geogrids 120KN
Roll Width :
1-6M
Tensile Strength :
120kn
Function :
River Bank Protection
Roll Length :
50m, 100m, 150m, 200m
Elongation At Break :
MD≤ 15%, CD≤ 13%
Application :
MSE Walls Soft Soil Stabilization Reinforce Slope
Material :
Polypropylene
Packing :
Packed in rolls
Color :
Black
Description

HDPE Plastic uniaxial Geogrids 120KN for MSE Walls Soft Soil Stabilization Reinforce Slope​​

PP Uniaxial Geogrid – Yixing Shenzhou
The polymer is in a directional linear state and forms a long elliptical network integral structure with uniform distribution and high node strength. This kind of structure has quite high tensile strength and rigidity and provides the ideal force bearing and spreading interlocking system for the soil.
The outstanding advantage of uniaxial plastic geogrid is that it has little tendency to deform (creep) under long-term continuous load, and its creep resistance is much better than geogrids of other materials, which play an important role in improving the service life of the project.
The interlocking action between the grid mesh and the soil constitutes an efficient stress transmission mechanism so that the local load can quickly and effectively spread to a large area of the soil, thereby reducing the local damage stress and improving The purpose of the service life of the project.

PP Uniaxial Plastic Geogrid
PP Uniaxial Plastic Geogrid is manufactured from the most proven “punch-and-drawing” techniques with the most sophisticated manufacturing technology. Solid sheets of polymer have apertures removed by punching, and then the sheet is carefully stretched to achieve optimum molecular orientation within the monolithic polymer structure. Therefore high ultimate tensile strengths of up to 300kN/m can be achieved. PP Uniaxial Plastic Geogrid is manufactured from High-Density Polyethylene. HDPE Uniaxial Plastic Geogrid is manufactured through the process of extruding the sheet, punching the designed holes, and heating while longitudinal stretching.

HDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce SlopeHDPE Plastic Uniaxial Geogrids 120KN For MSE Walls Soft Soil Stabilization Reinforce Slope

Performance
•High tensile strength
•Low creep deformation

Benefits
•Improving bearing capacity of retaining wall or dam
•Extending the project life
•Reducing floor area
•Shortening construction period, reducing cost and maintaining expense

Specification of UX GEOGRID

Uniaxial Geogrid(PP)Technical Parameter
Item
Specification
Type
TGDG
35
TGDG
50
TGDG
80
TGDG110
TGDG
120
TGDG150
TGDG200
TGDG260
TGDG
300
Tensile Strength≥(KN/M)
35
50
80
110
120
150
200
260
300
Maximum elongation≤(%)
10
Tensile strength at 2% elongation≥(KN/M)
10
12
26
32
36
42
56
94
108
Tensile strength at 5% elongation≥(KN/M)
22
28
48
64
72
84
112
185
213
Uniaxial Geogrid(HDPE)Technical Parameter
Item
Specification
Type
TGDG
50
TGDG
80
TGDG100
TGDG110
TGDG120
TGDG
150
TGDG
170
TGDG
200
TGDG
220
Tensile Strength≥(KN/M)
50
80
100
110
120
150
170
200
220
Maximum elongation≤(%)
10
Tensile strength at 2% elongation≥(KN/M)
12
21
26
29
38
41
52.5
60
64
Tensile strength at 5% elongation≥(KN/M)
23
40
50
55
75.5
81
103
110
127
