Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof Anti-Seepage Project
Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof Anti-Seepage Project
Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof Anti-Seepage Project
Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof Anti-Seepage Project
Specifications
Brand Name :
SZ
Model Number :
HDPE LDPE LLDPE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30000 square meters
Price :
$0.3-$2.0/SQM
Payment Terms :
T/T,L/C
Supply Ability :
100 Tons per day
Delivery Time :
5-8 days
Packaging Details :
Packed in woven bag or your requirements
Product Name :
HDPE Geomembrane
Thickness :
2000 Microns
Application :
Mining
Function :
Anti-seepage Waterproof
Material :
HDPE LDPE LLDPE
Type :
Smooth or Textured
Length :
50m-200m
Width :
1m-8m
Description

Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof And Anti-Seepage Project

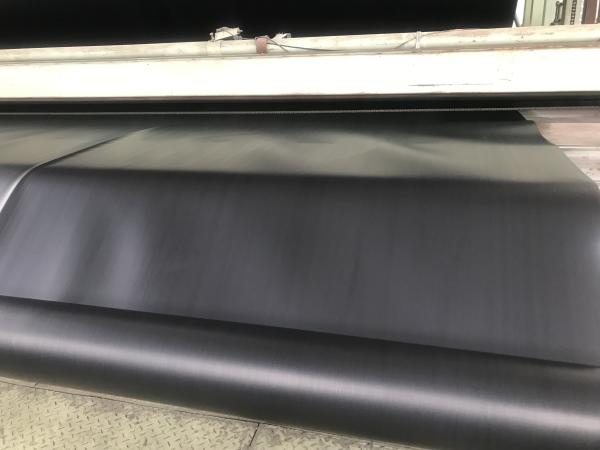

Yixing Shenzhou HDPE Geomembrane
HDPE Geomembranes are thin two or three-dimensional sheets with very low permeability. The polymers come from a chemical plant in the shape of granules. During further processing, the granules are melted and after extrusion, eventually followed by spinning, the semi-manufactured products get the shape of sheets. The additives can be used during melting before extrusion. These additives have the main purpose of improving the less favorable properties of the basic materials, especially the sensitivity for alterations. HDPE Smooth Geomembrane ( YIXING SHENZHOU) is a smooth high-density polyethylene (HDPE) geomembrane manufactured with the highest quality resin specifically formulated for flexible geomembrane. HDPE Smooth Geomembrane is the preferred product for lining projects requiring low permeability, chemical, and ultraviolet resistance properties, which makes them extremely cost-effective for many applications.



Thickness 2000 Microns Mining Industry HDPE Geomembrane Liner Waterproof Anti-Seepage Project

No.PropertiesTest MethodTest Value
1Thickness(mm)ASTM D51990.500.751.001.251.502.002.503.00
2Density (g/cm2)ASTM D15050.939
3Tensile Propeties
Yield Strength(N/mm)ASTM D6693711151822293744
Break Strength(N/mm)1320273340536780
Yield Elongation %Type IV12
Break Elongation %700
4Tear Resistance/NASTM D10046293125156187249311374
5Puncture Resistance/NASTM D4833160240320400480640800960
6Stress Crack resistance/hr

ASTM D5397
(App.)

300
7Carbon Black
Carbon Black Content %ASTM D16032.0-3.0
Carbon Black DispersionASTM D5596

Carbon black dispersion(only near spherical agglomerates)for 10 different views 9
in categories 1 or 2 and 1 in category 3

8Oxidative Induction Time(OIT)
Standard OIT/minASTM D3895100
High Pressure OIT/minASTM D5885400
9Oven Aging at 85°C
Standard OIT-% retained after 90 daysASTM D389555
High pressure OIT-% retained after 90 daysASTM D588580
10UV Resistance
Standard OIT retained after 1600 hrsASTM D389550
High pressure OIT retained after 1600 hrsASTM D588550
11Low tempreture impact brittle property at -70°C_Pass
12Permeability g·cm/(cm2)·Pa_≤1.0×10-13
13Dimensional Stability/%_±2

Please contact our expert team to discuss your Landfill requirements
