3M Width Tunnel Anti Seepage HDPE Geomembrane
3M Width Tunnel Anti Seepage HDPE Geomembrane
3M Width Tunnel Anti Seepage HDPE Geomembrane
3M Width Tunnel Anti Seepage HDPE Geomembrane
Specifications
Brand Name :
SZ
Model Number :
HDPE LDPE LLDPE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30000 square meters
Price :
$0.3-$2.0/SQM
Payment Terms :
T/T,L/C
Supply Ability :
100 Tons per day
Delivery Time :
5-8 days
Packaging Details :
Packed in woven bag or your requirements
Product Name :
HDPE Geomembrane
Application :
Tunnel Anti-Seepage
Standard :
ASTM GM13
Material :
HDPE LDPE LLDPE
Type :
Smooth or Textured
Length :
50m-100m
Width :
1m-8m
Thickness :
0.3-2mm
Description

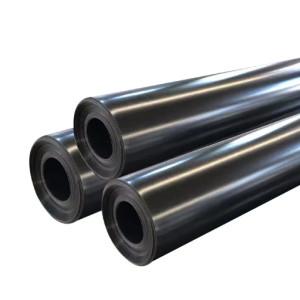

3M Width Tunnel Anti-Seepage HDPE Geomembrane From Chinese Factory

HDPE Geomembranes – Yixing Shenzhou

· HDPE geomembrane is a flexible waterproof material with a high impermeability coefficient (1×10-17cm/s)

· HDPE geomembrane has a good heat resistance and cold resistance, and its use environment temperature is high temperature 110℃, low temperature -70℃;

· HDPE geomembrane has good chemical stability and can resist the corrosion of strong acid, alkali, and oil. It is a good anti-corrosion material;

· HDPE geomembrane has high tensile strength so that it has a high tensile strength to meet the needs of high-standard engineering projects;

· HDPE geomembrane has strong weather resistance, strong anti-aging performance, and can be exposed for a long time while maintaining the original performance;

· HDPE geomembrane has strong tensile strength and elongation at break, which enables HDPE geomembrane to be used under various harsh geological and climatic conditions. Adapt to uneven geological settlement, strong strain;

· HDPE geomembrane is made of high-quality virgin plastic and carbon black particles do not contain any preservatives. HDPE has been used in my country to replace PVC as a raw material for food packaging bags and cling film.

3M Width Tunnel Anti Seepage HDPE Geomembrane

3M Width Tunnel Anti Seepage HDPE Geomembrane

HDPE Geomembrane TDS

No. Properties Test Method Test Value
1 Thickness(mm) ASTM D5199 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
2 Density (g/cm2) ASTM D1505 0.939
3 Tensile Propeties
Yield Strength(N/mm) ASTM D6693 7 11 15 18 22 29 37 44
Break Strength(N/mm) 13 20 27 33 40 53 67 80
Yield Elongation % Type IV 12
Break Elongation % 700
4 Tear Resistance/N ASTM D1004 62 93 125 156 187 249 311 374
5 Puncture Resistance/N ASTM D4833 160 240 320 400 480 640 800 960
6 Stress Crack resistance/hr

ASTM D5397

(App.)

 300
7 Carbon Black
Carbon Black Content % ASTM D1603 2.0-3.0
Carbon Black Dispersion ASTM D5596

Carbon black dispersion(only near spherical agglomerates)for 10 different views 9

in categories 1 or 2 and 1 in category 3
8 Oxidative Induction Time(OIT)
Standard OIT/min ASTM D3895 100
High Pressure OIT/min ASTM D5885 400
9 Oven Aging at 85°C
Standard OIT-% retained after 90 days ASTM D3895 55
High pressure OIT-% retained after 90 days ASTM D5885 80
10 UV Resistance
Standard OIT retained after 1600 hrs ASTM D3895 50
High pressure OIT retained after 1600 hrs ASTM D5885 50
11 Low tempreture impact brittle property at -70°C _ Pass
12 Permeability g·cm/(cm2)·Pa _ ≤1.0×10-13
13 Dimensional Stability/% _ ±2

3M Width Tunnel Anti Seepage HDPE Geomembrane

· Brand: SZ

· Product origin China

· Delivery time 7-14 Days

· Supply capacity 40′ HQ/ 7 Days
