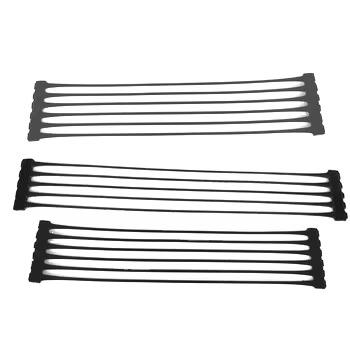

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil
High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil
High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil
High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil
Specifications
Brand Name :
SZ
Model Number :
Hdpe Plastic Geogrid
Certification :
ISO/CE
Place of Origin :
China
MOQ :
10000sqm
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram
Product Name :
High Strength HDPE Uniaxial Plastic Geogrid Mesh
Application :
Reinforcement Retaining Wall Soil
Material :
High Density Polyethylene (HDPE)
Tensile Strength :
20-200KN/M
Chemical Resistance :
Excellent
Roll Length :
50 m - 100 m
Roll Width :
1 m - 6 m
Color :
Black
Description

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil



Description:


Yixing Shenzhou HDPE (High-Density Polyethylene) Geogrids are engineered polymeric grids used for soil reinforcement, slope stabilization, and load distribution in civil engineering projects. Manufactured through extrusion, punching, and uniaxial/biaxial stretching, they provide high tensile strength with minimal deformation.


High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil

Technical Specifications:


Parameter Uniaxial Geogrid Biaxial Geogrid
Tensile Strength 20-200 kN/m (MD) 15-50 kN/m (MD/CD)
Aperture Size 25-150mm 15-100mm
Roll Dimensions 2-6m width x 50-100m 2-5m width x 50m
Temperature Range -60°C to +80°C -60°C to +80°C



High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil




Applications :


1. Reinforced Soil Structures
Retaining walls (up to 30m height)

Steep slope stabilization (up to 70°)


2. Transportation Infrastructure
Road and railway embankments
Airport runways and taxiways


3. Mining & Industrial
Tailings dam reinforcement
Heavy-duty access roads


4. Coastal & Waterfront
Revetment protection
Breakwater foundations


5. Landfill Engineering
Liner system reinforcement
Final cover systems

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil


Case Studies :
Qinghai-Tibet Highway: Uniaxial HDPE geogrids reduced frost heave by 60%

Hong Kong-Zhuhai-Macao Bridge: Biaxial grids enhanced seabed foundation stability.



Installation Guide :


Subgrade Prep: Compact to ≥95% Proctor density; remove sharp objects.

Laying:

Uniaxial: Align high-strength direction with load.

Biaxial: Overlap ≥300mm at edges.

Backfilling: Use granular fill in ≤300mm lifts.


#HDPE geogrid manufacturer #plastic geogrid for road construction#high strength soil stabilization grid
